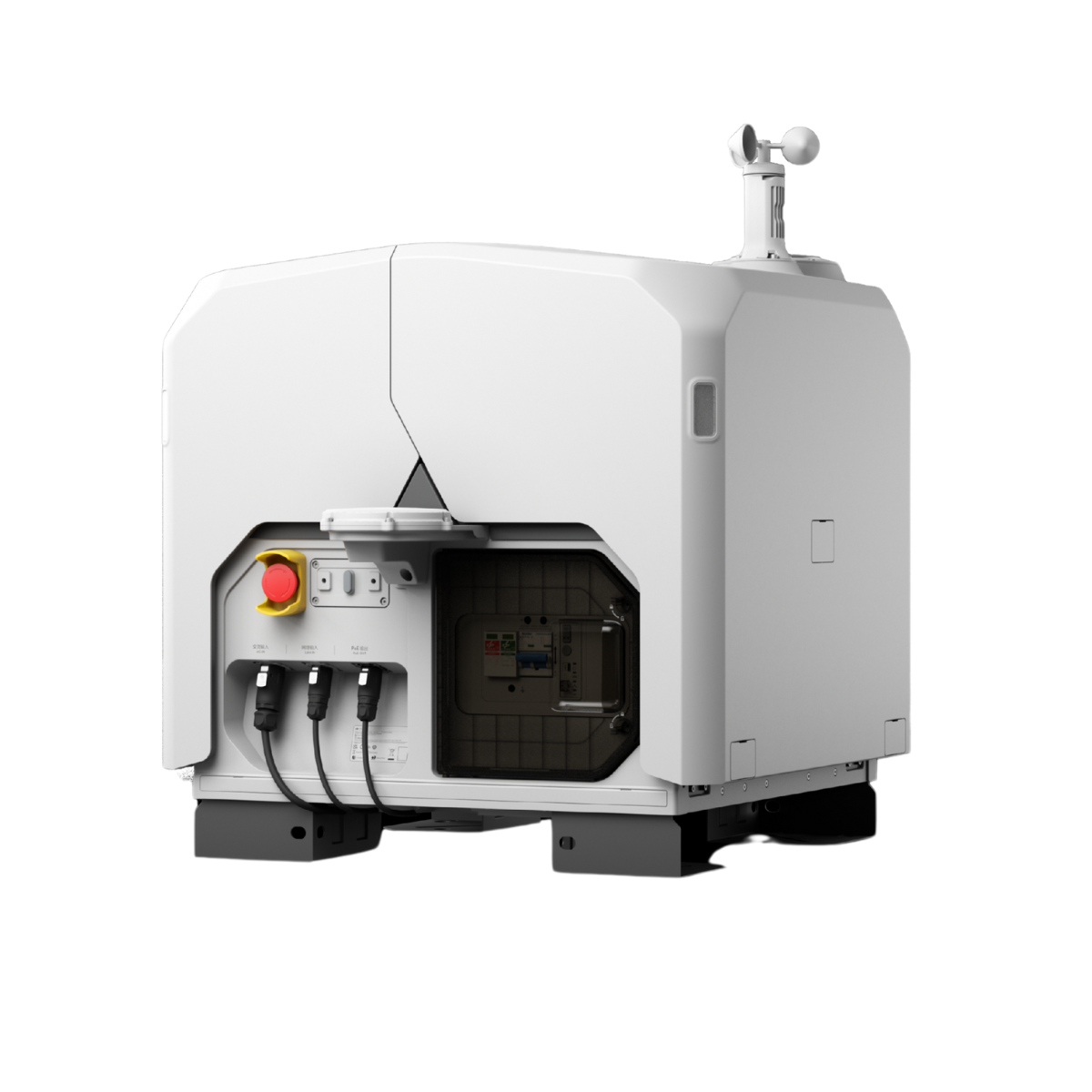

DJI Dock 3

DJI Dock 3: Scalable Drone Deployment System for Enterprise and Fleet Operations

The DJI Dock 3 is a third-generation automated drone deployment system purpose-built for enterprise operators who need persistent aerial coverage without the overhead of continuous crew deployment.

Paired with a 25-foot 14/3-gauge power extension cord, this configuration ensures stable power delivery even when sources are offset from the dock's location.

Compatible exclusively with the DJI Matrice 4D and Matrice 4TD (aircraft sold separately), the system delivers a fully integrated hardware and software stack. The Dock keeps aircraft mission-ready around the clock across an operating temperature range of -22°F to 122°F (-30°C to 50°C).

This package also includes a DJI FlightHub 2 subscription, providing access to DJI's cloud-based command and fleet management platform. Together, the Dock 3 and FlightHub 2 create an integrated solution for automated drone deployment, centralized mission coordination, real-time monitoring, and remote fleet management.

Key Features and Benefits

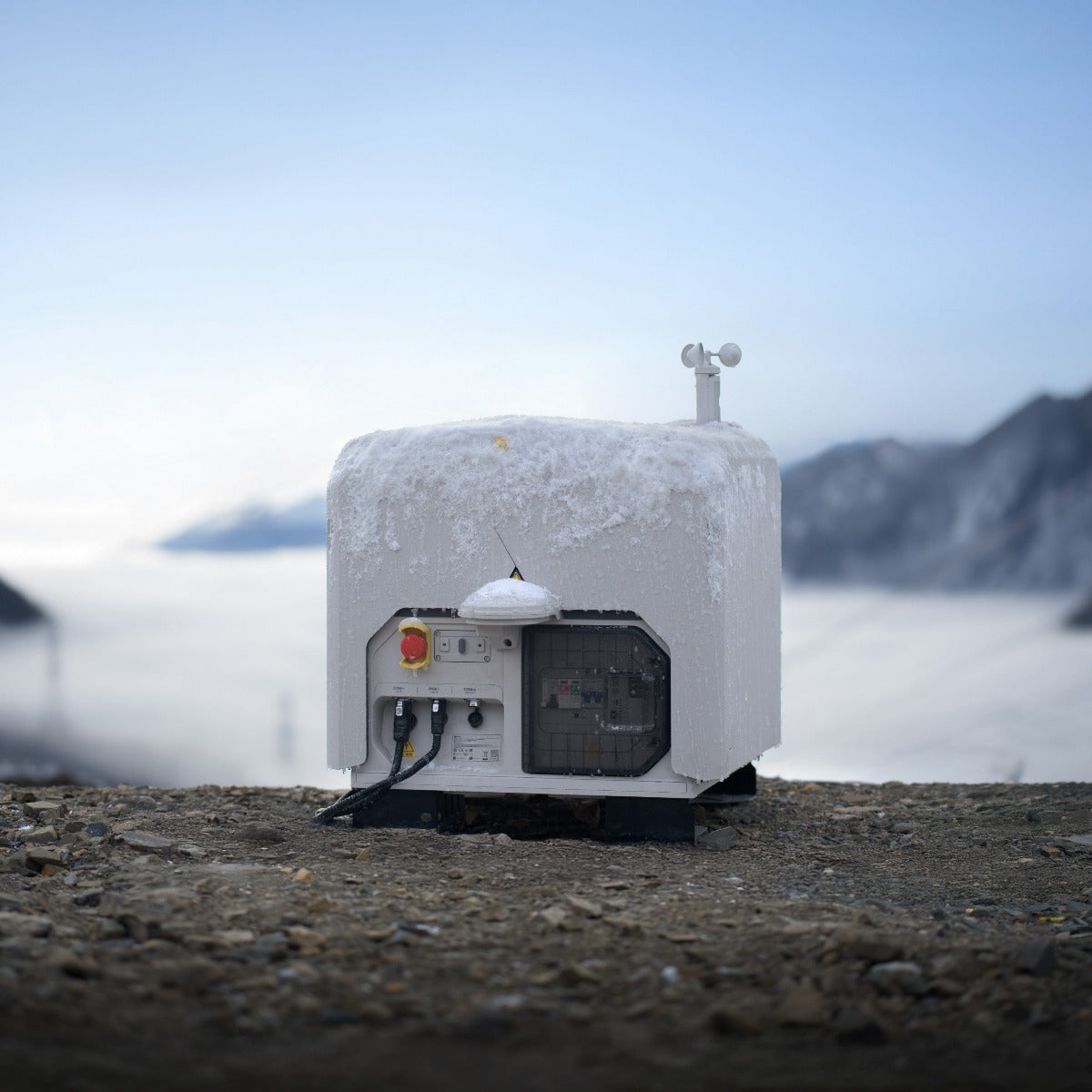

• IP56 protection: dust and water resistance rated for permanent outdoor deployment in harsh conditions.
• Vehicle-mounted deployment: first DJI Dock to support mobile installation for rapid repositioning between sites.
• Dual-dock vehicle configuration: two docks mountable on a single vehicle for continuous dual-drone rotation.
• Compressor-based AC: active heating and cooling maintains aircraft readiness from -22°F to 122°F operating range.
• 27-minute charge: Matrice 4D Series battery recharged from 15% to 95% for rapid mission turnaround.
• Backup battery: 12 Ah lead-acid UPS sustains dock operation for more than 4 hours after a power outage.
• Onboard sensors: wind speed, rainfall, ambient temperature, water immersion, and in-cabin monitoring integrated.
• Dual security cameras: internal and external 1920 x 1080 cameras with 151° FOV and auxiliary white light.
• DJI O4+ Enterprise transmission: up to 15.5-mile (25 km) video link via 9-antenna 2T4R intelligent switching.
• DJI FlightHub 2 subscription included: cloud-based fleet management, multi-drone livestream monitoring, remote mission planning, automated dock operations, mapping tools, and centralized operational oversight.
• FREE 25 ft 14/3 Gauge Power Extension Cord included: provides a reliable, grounded AC power connection for DJI Dock 3, supporting flexible placement and consistent power delivery.

Flexible power reach for complex installations

Supporting 100-240 V AC (50/60 Hz) and up to 800 W load, the Dock 3 manages charging, thermal control, and data communications through its integrated power system.

The 25-ft extension cord preserves voltage stability over distance, allowing safe placement of electrical outlets in protected zones.

Modular construction and self-maintenance features maximize uptime and reduce manual intervention in long-term deployments.

Infrastructure That Scales With Your Operation

Enterprise UAV programs rarely stay static. Coverage requirements expand, incident response zones shift, and inspection corridors change with asset portfolios. The Dock 3 is built to accommodate that operational reality at the platform level.

Fixed installations can be deployed using four distinct mounting configurations: concrete base, steel frame, load-bearing frame, or direct ground mount, giving integrators the flexibility to match installation method to site conditions without custom engineering for each location.

Vehicle-mounted deployment extends that flexibility further, enabling the same dock hardware to serve both permanent and mobile roles within a single fleet. At the software layer, the included DJI FlightHub 2 subscription supports multi-dock task management, coordinated mission planning across installations, real-time aircraft monitoring, and cloud-based RTK location calibration that persists across restarts and requires recalibration only when a dock is physically relocated.

DJI FlightHub 2 provides a centralized cloud-based interface where operators can monitor aircraft status and telemetry, access live video feeds, plan recurring inspection routes, and coordinate operations across multiple drones and locations.

Its Virtual Cockpit, mapping tools, and media management capabilities help teams maintain operational visibility while streamlining mission execution and data review. Integration with DJI Dock 3 also enables operators to remotely manage automated missions and monitor dock status without requiring personnel to be physically present at each installation.

Including the FlightHub 2 subscription gives enterprise operators a software foundation to complement their Dock 3 hardware investment, reducing the need to source a separate fleet management platform to coordinate their autonomous drone operations. Subscription resource allowances and available capabilities are subject to the applicable FlightHub 2 service tier.

For organizations building out drone-as-a-service programs or expanding from pilot deployments to full operational coverage, the Dock 3 provides a consistent, manageable hardware baseline across every node in the network.

Dock 3 vs Dock 2—Key Upgrades

Compatibility and System Integration

• DJI Matrice 4D: compatible aircraft (sold separately) with 4/3 CMOS 20 MP wide-angle, 48 MP medium tele, and 48 MP tele cameras.
• DJI Matrice 4TD: compatible aircraft (sold separately) adding a 640 x 512 thermal camera and NIR auxiliary illumination.
• DJI Matrice 4D Series Battery: 6,768 mAh, 149.9 Wh, 400-cycle rated, low-temperature self-heating charging.
• DJI FlightHub 2: included cloud platform subscription for multi-dock mission planning, multi-drone livestream monitoring, fleet management, remote operations, mapping, and centralized mission coordination.
• DJI Cloud API: enables integration with third-party and private enterprise cloud platforms.
• DJI RC Plus 2 Enterprise: pairs with Matrice 4D/4TD for standalone use or Controller B override during site commissioning.
• DJI Cellular Dongle 2: optional 4G connectivity for dock and aircraft when Ethernet infrastructure is unavailable (sold separately).
• D-RTK 3 Relay Fixed Deployment Version: extends GNSS and video transmission coverage for building-side and tower installations.
• AL1 Spotlight: 32 W, IP55, 4.3 lux at 328 ft (100 m), compatible with Matrice 4D/4TD for nighttime operational support.
• AS1 Speaker: 15 W, IP55, 984 ft (300 m) effective broadcast range, compatible with Matrice 4D/4TD for public address.

Applications and Use Cases

• Enterprise fleet deployment: standardized dock hardware across fixed and mobile nodes supports consistent multi-site operations.
• Emergency response: vehicle-mounted deployment repositions the full system to active incident sites as operational requirements shift.
• Firefighting operations: Matrice 4TD thermal camera provides real-time heat mapping and fire boundary data for ground crew coordination.
• Power line and substation inspection: fixed dock deployment along transmission corridors supports automated repeated route inspection.
• Oil and gas facility monitoring: continuous remote coverage of pipelines and facilities reduces recurring crew deployment costs.
• Security and perimeter patrol: FlightHub 2 mission automation schedules flights across protected sites without operator intervention.
• Bridge and infrastructure inspection: dock positioned near asset enables repeatable close-range data collection across inspection cycles.
• Drone-as-a-service programs: consistent dock hardware baseline simplifies fleet standardization and multi-client service delivery.

The DJI Dock 3 resolves the core challenge of scaling autonomous drone operations beyond individual deployments: it provides a hardware and software platform that is consistent enough to manage at fleet scale, and flexible enough to cover the range of environments and deployment scenarios that enterprise operations actually encounter.

With a DJI FlightHub 2 subscription included, operators also receive the cloud-based tools needed to coordinate missions, monitor aircraft, and manage distributed dock installations from a centralized interface.

Dronefly's enterprise integration team works directly with fleet operators and program managers to design Dock 3 deployments that match real operational requirements — site selection, network architecture, FlightHub 2 configuration, and aircraft pairing.

As a premier West Coast UAV dealer with deep experience in enterprise UAS integration, Dronefly brings the systems-level perspective that complex multi-site deployments demand.

Contact Dronefly today to configure your DJI Dock 3 program.
