DJI Matrice 3D Series Charging Kit

DJI Matrice 3D Series Charging Kit

$399.00
$416.00 $399.00
Sale Sold out
SKU S-DJI-M3D-CHGKIT MPN CP.EN.00000519.01 EAN 6941565975171
  • Fast 100 W charging restores batteries in roughly 70 minutes
  • External charging base facilitates rapid manual hot swaps in field
  • Intelligent management prevents overheating and overcharging of expensive battery cells
  • Universal 100V-240V input supports standardized global flight operations effectively
  • Compact design ensures easy transport within standard enterprise equipment cases
  • Included USB-C PD cable provides high-speed power to diverse devices
  • LED status lights offer clear communication of current charging progress
  • Built specifically to support the Matrice 3D and 3TD airframes
  • Standalone charging capability maximizes fleet uptime during prolonged mission deployments
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 3D Series Charging Kit: Essential portable power for autonomous fleets

The DJI Matrice 3D Series Charging Kit offers a compact and reliable way to manage the energy needs of your Matrice 3D and 3TD drone batteries. This kit bypasses the need for the aircraft to be inside its docking station for charging, providing an efficient way to rotate fresh batteries during intensive field operations. Equipped with a 100 W USB-C Power Adapter and a dedicated charging cradle, it delivers precise power to the aircraft’s 115.2 Wh batteries, ensuring a full charge in just over an hour. Whether you are conducting urban surveillance or large-scale mapping, this kit provides the "hot swap" capability needed to maximize the aircraft’s 50-minute flight time without long delays.

DJI Matrice 3D Series Charging Kit core features and advantages

  • Fast restoration: Charges a single Matrice 3D Intelligent Flight Battery in 70 minutes.
  • Off-dock flexibility: Enables battery charging independent of the aircraft or Dock 2 station.
  • Precision 100W delivery: Supplies consistent 100 W output via USB-C for optimized charging.
  • Smart safety suite: Monitors battery temperature and voltage to ensure long-term cell health.
  • Universal travel ready: Operates on 100–240 V AC for consistent performance worldwide.
  • Status at a glance: Built-in LEDs display blinking patterns for easy charge monitoring.
  • 2-in-1 power utility: The 100W adapter works for both the charging base and controllers.
  • Enterprise durability: Built to perform reliably in temperatures ranging from 5 to 40 degrees Celsius.

This charging kit is an indispensable accessory for enterprise pilots who require a high degree of mobility and fast turnaround times. By allowing for standalone battery charging, you can ensure that a fully charged backup is always on standby, effectively doubling your operational capacity in the field. Its rugged and portable design makes it a standard inclusion for any professional kit supporting the Matrice 3D series airframes.

Dronefly is your dedicated West Coast partner for the maintenance and mission-readiness of the latest autonomous UAS technology. We understand that the transition to Dock 2 operations requires specialized support, and we provide the official components necessary to keep your fleet in the air. Experience the reliability of a true enterprise partnership by ordering your Matrice 3D charging kits directly from Dronefly.

  • Power Adapter Input - 100-240 V (AC), 50/60 Hz, 2.5A
  • Power Adapter Output - 100W
  • Charging Base Input - USB-C: 5-20 V, 5.0A
  • Charging Base Output - Battery Port: 12-17 V, 8.0A
  • Charging Base Rated Power - 100W

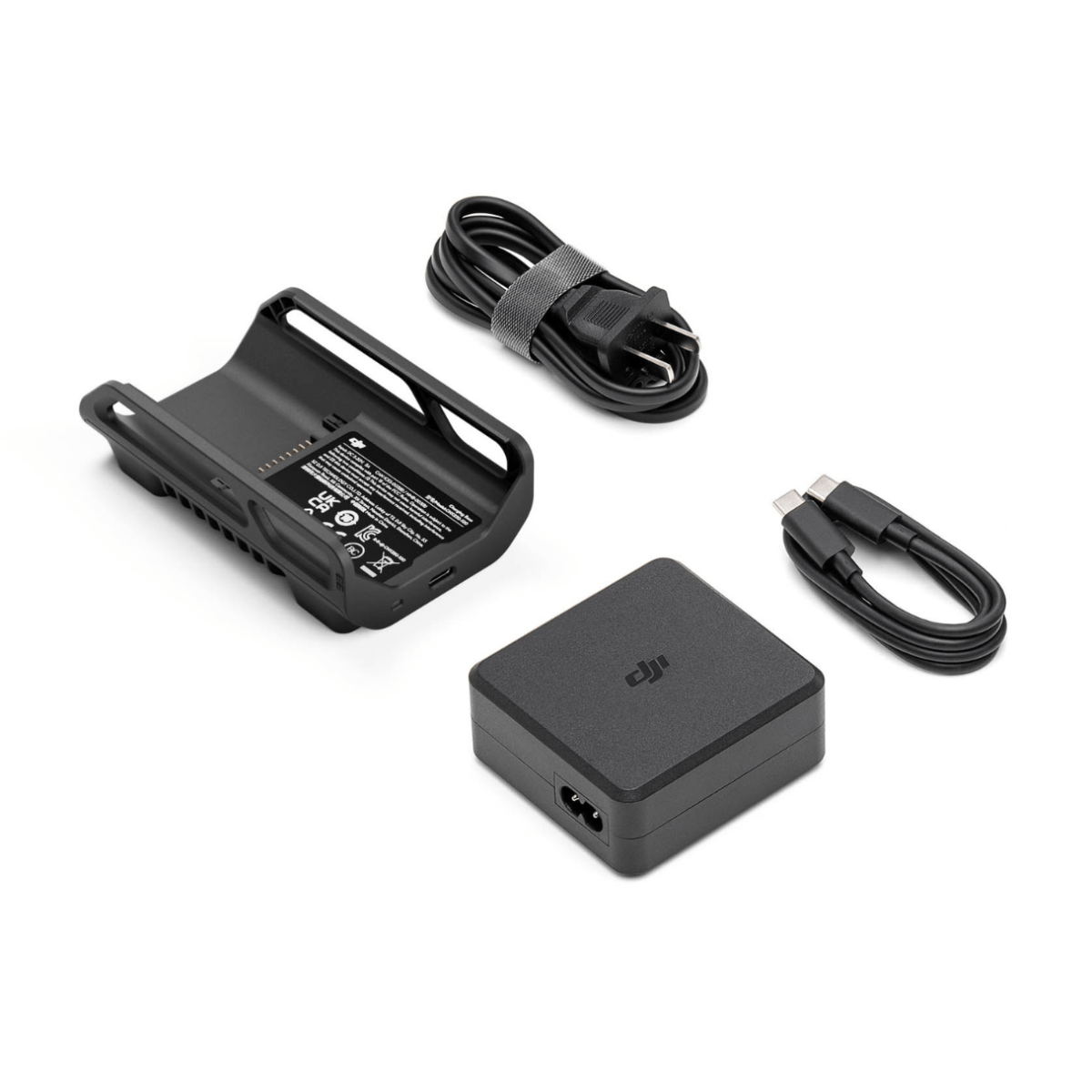

  • 1x DJI 100W USB-C Power Adapter
  • 1x Charging Base
  • 1x USB-C PD Cable
  • 1x AC Power Cable
Does this kit include the AC power cable for my region?

Yes, the DJI Matrice 3D Series Charging Kit comes with an AC power cable. While the kit supports a wide voltage range of 100–240 V for worldwide use, the physical plug type is typically matched to the region of purchase. If you are traveling internationally, the adapter's universal input means you only need a simple physical plug adapter to operate it.

What do the different LED blinking patterns on the base mean?

The Status LEDs on the charging base communicate various states: a slow green blink indicates the battery is charging, while a solid green light means charging is complete. If you see a red light or a rapid blinking pattern, it may indicate a charging error or that the battery temperature is too high or too low. Always refer to the manual for specific diagnostic codes.

Can I use the 100W power adapter to charge my DJI RC Pro or RC Plus?

Yes, the DJI 100W USB-C Power Adapter included in this kit is highly versatile. It uses the USB-C Power Delivery protocol, making it compatible with the DJI RC Plus, RC Pro, and most other modern remote controllers and smartphones. This allows you to simplify your field kit by carrying a single powerful adapter for multiple devices.

How does the intelligent management system protect my batteries?

The charging base and the Intelligent Flight Battery communicate during the charging process. The system monitors the voltage of each individual cell to ensure they are balanced and checks the overall temperature. If any abnormal status is detected, such as overvoltage or overheating, the system will automatically stop the flow of power to prevent damage.

Is this charging kit compatible with the Matrice 30 series?

No, the Matrice 3D Series Charging Kit is exclusively designed for the batteries used in the Matrice 3D and Matrice 3TD (Dock 2 versions). It uses a different physical battery interface and charging protocol than the TB30 batteries used in the Matrice 30 series. Always use the charging equipment specifically matched to your aircraft model.
