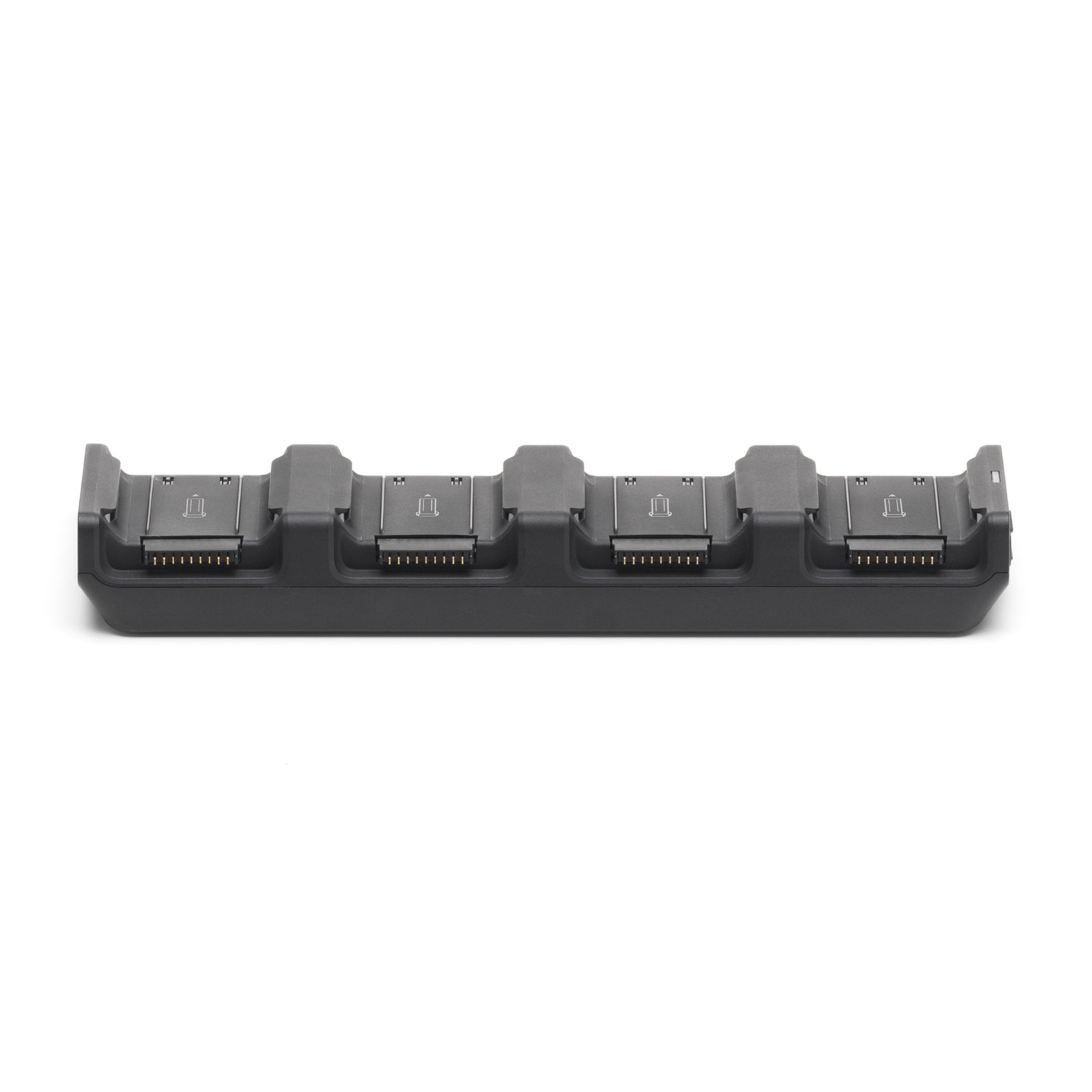

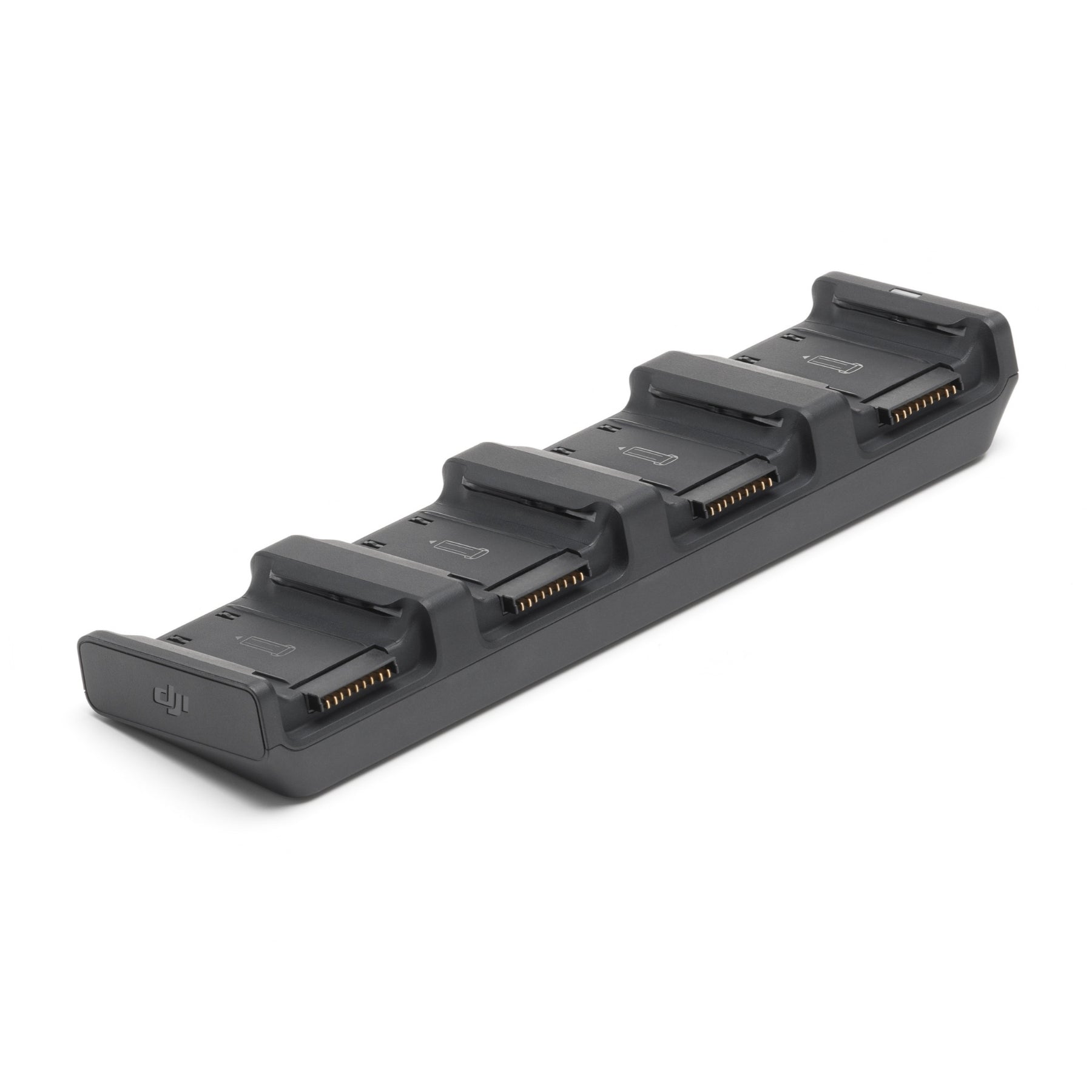

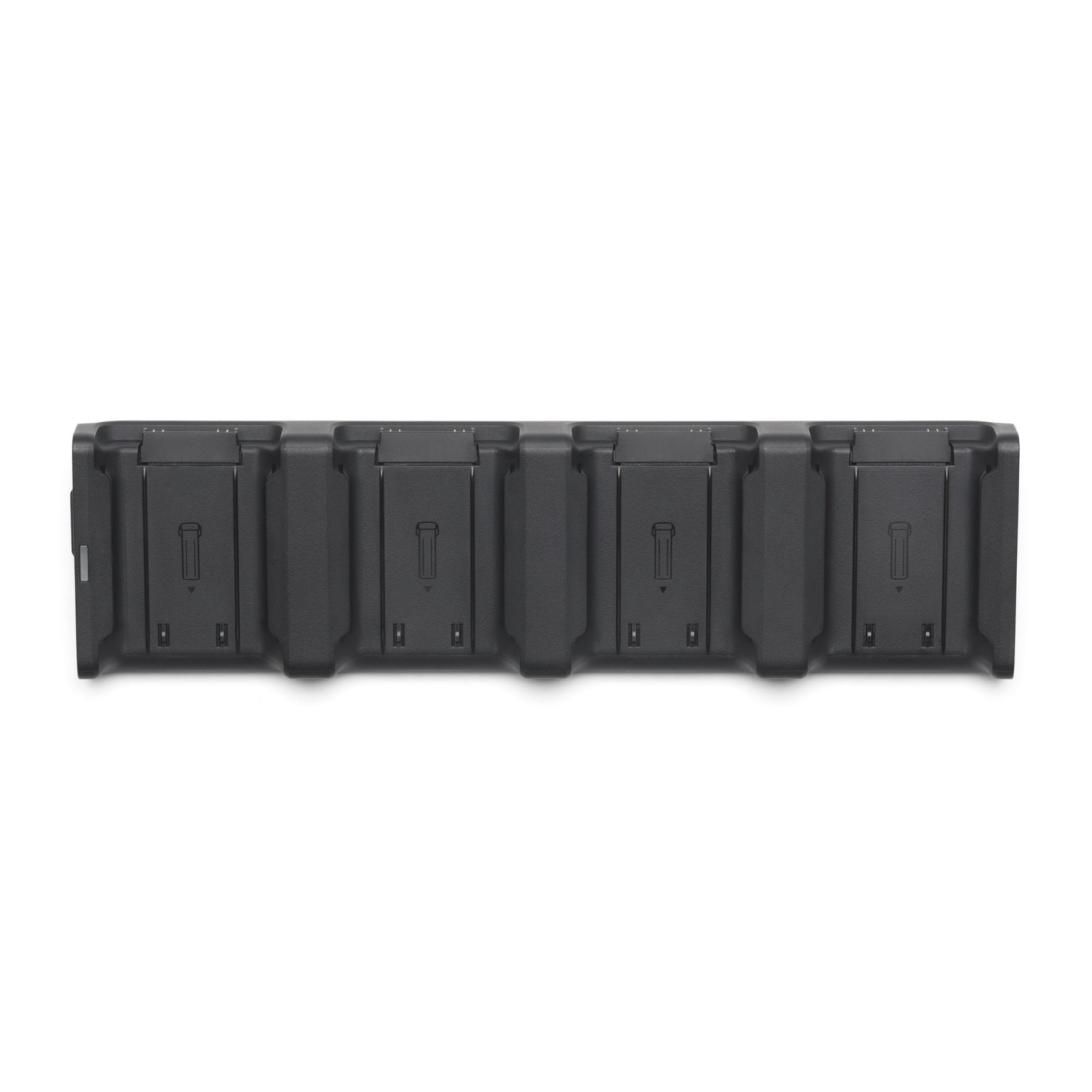

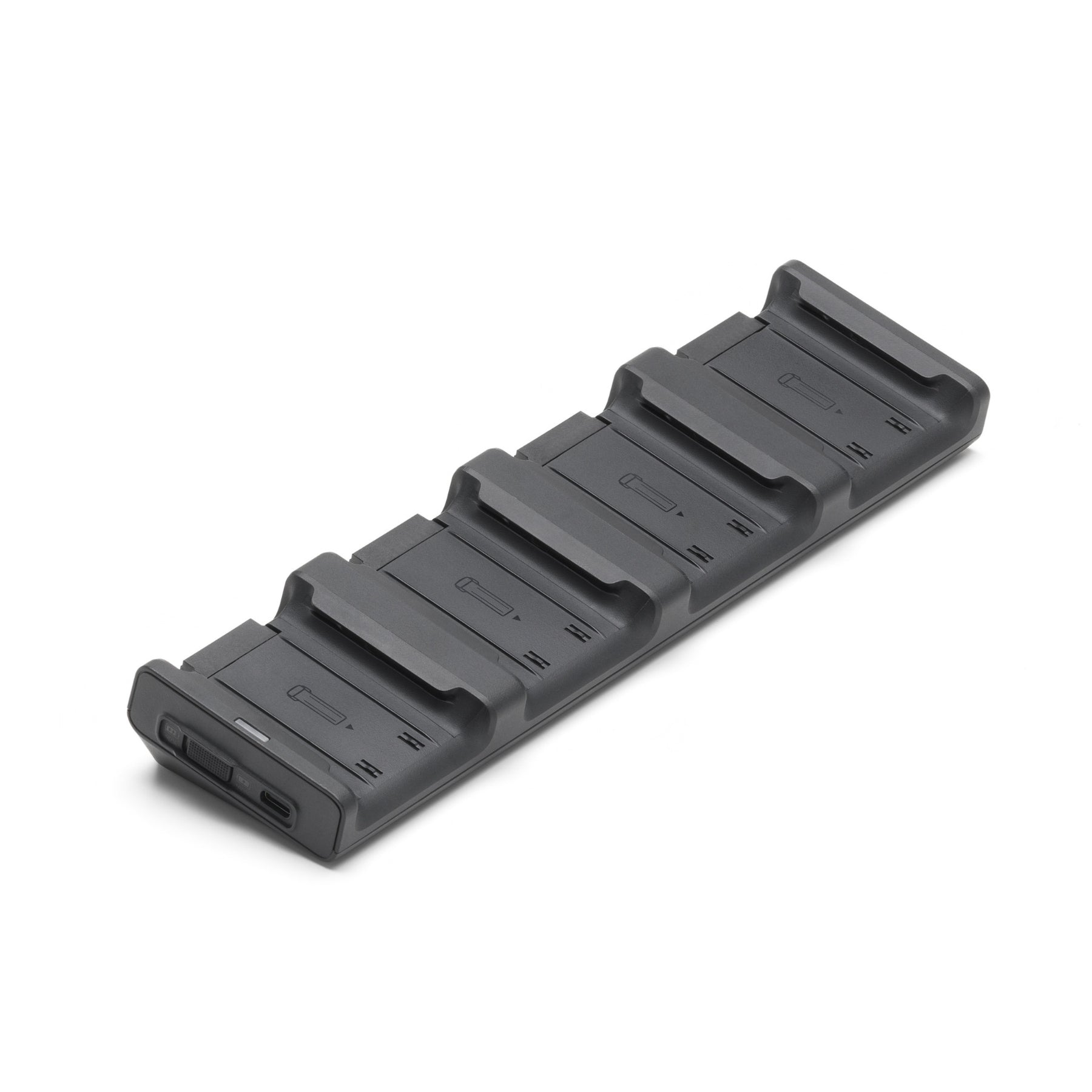

DJI Matrice 4 Series Charging Hub (100W): Controlled multi-battery charging for enterprise Matrice 4 fleets
The DJI Matrice 4 Series Charging Hub (100W) provides regulated, sequential charging for the Matrice 4 Series Intelligent Flight Battery. Designed for enterprise deployment workflows, it accommodates up to four batteries and prioritizes them from high to low power levels. The hub accepts USB-C input (5–20 V, max 5 A) and delivers 100 W rated charging power with regulated output between 11.2 V and 17 V. Operators can select Standard Mode for 100% SOC or Ready-to-Fly Mode to maintain 90% SOC.
DJI Matrice 4 Series Charging Hub core features
- 100 W rated power: Supports structured multi-battery charging cycles.
- USB-C input interface: Accepts 5–20 V, max 5 A.
- Regulated output range: Delivers 11.2–17 V battery interface power.
- Sequential charging logic: Prioritizes higher SOC batteries first.
- Four-battery capacity: Manages multiple Matrice 4 packs efficiently.
- Standard Mode operation: Charges each battery to 100% SOC.
- Ready-to-Fly Mode: Maintains batteries at 90% SOC level.
- Exclusive compatibility: Supports Matrice 4 Series Intelligent Flight Battery.
- Controlled temperature range: Operates between 41°F and 104°F.
- Compatible with DJI 100W Portable Charger
This charging hub helps maintain organized battery rotation across inspection, mapping, and enterprise missions. Its sequential logic and selectable SOC modes support predictable preparation before deployment.
Dronefly delivers integrated UAV lifecycle support for DJI Matrice 4 operators. We ensure approved batteries and adapters are properly matched before field deployment. Order the DJI Matrice 4 Series Charging Hub (100W) from Dronefly to maintain consistent fleet readiness.
