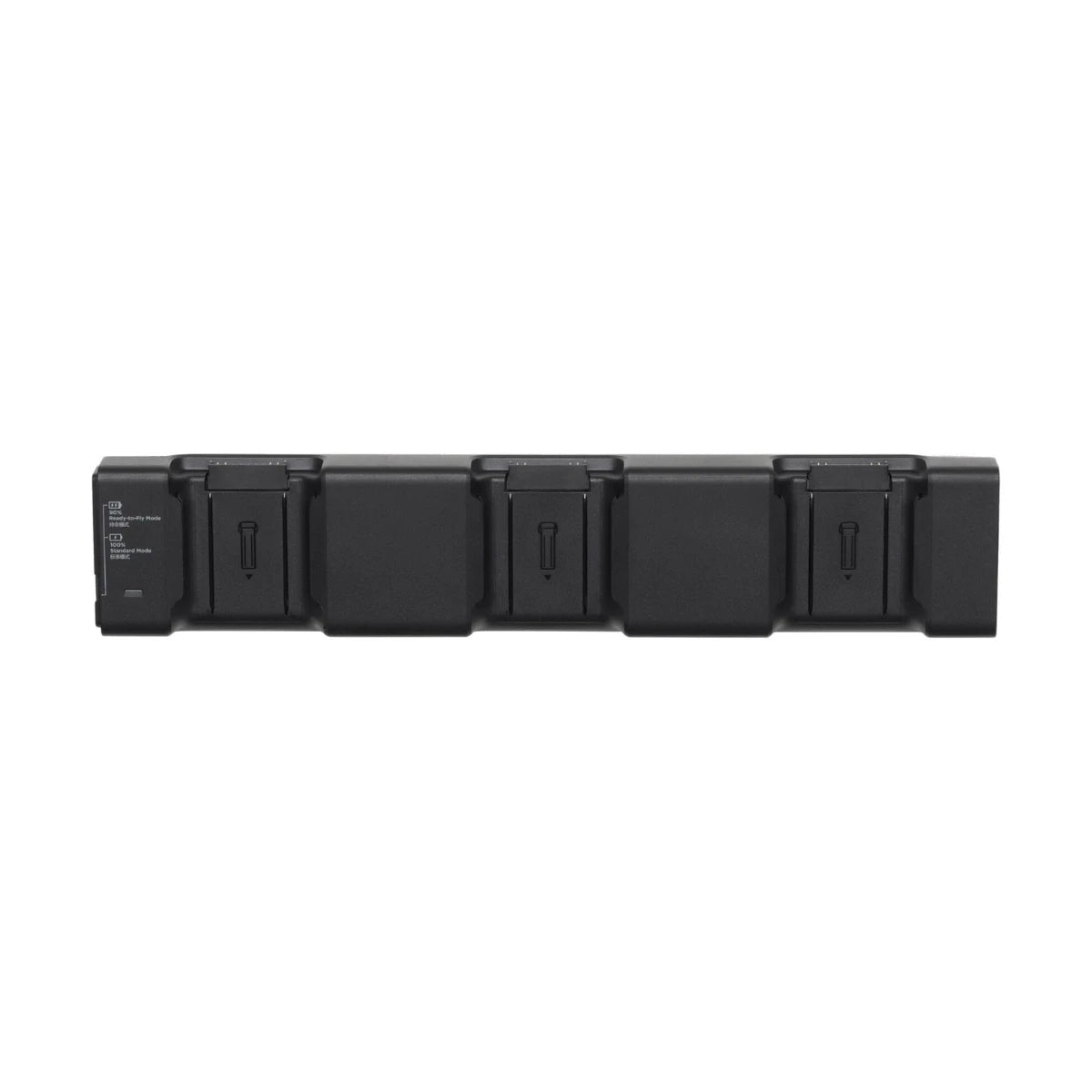

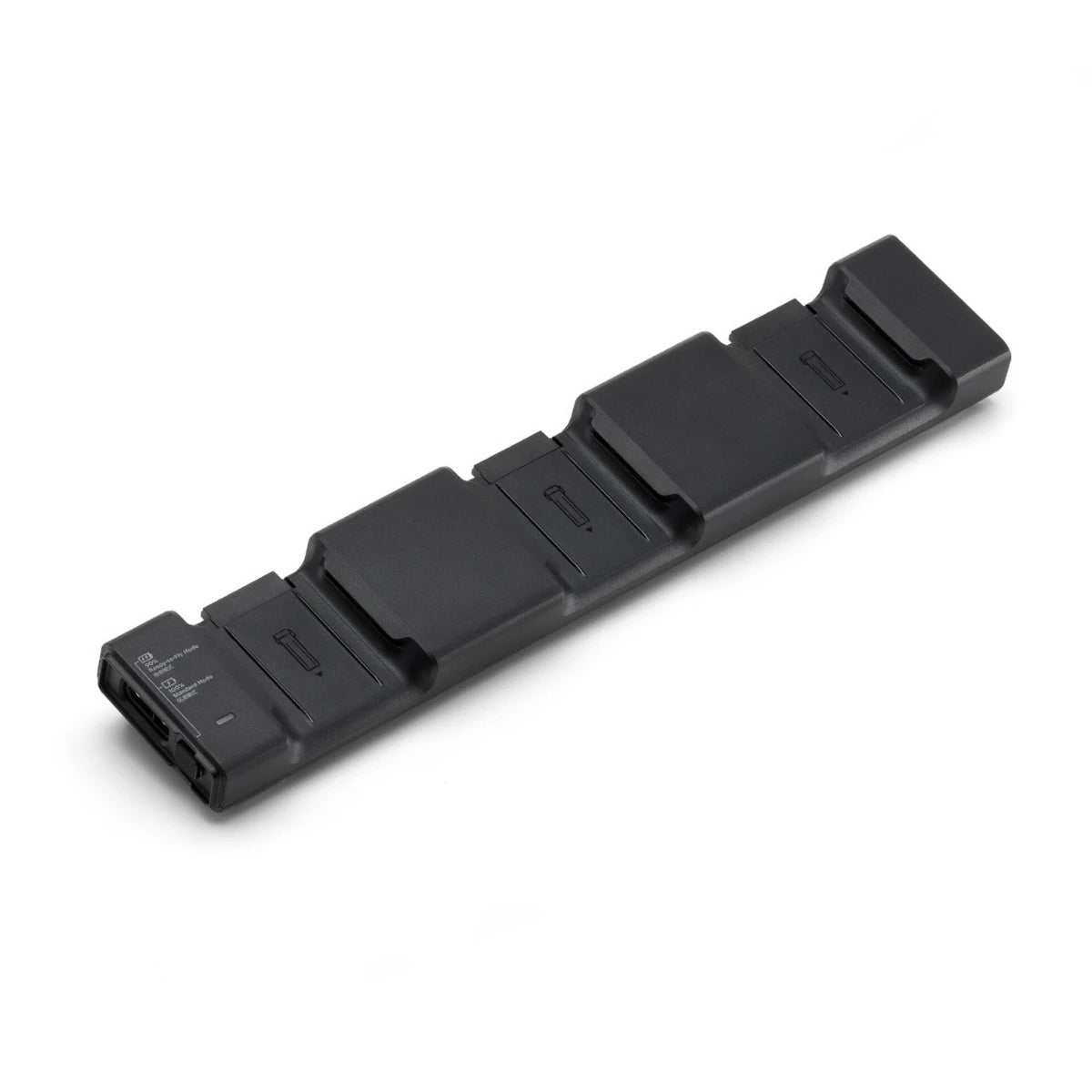

DJI Matrice 4 Series Charging Hub (200W)

DJI Matrice 4 Series Charging Hub (200W)

$140.00
$140.00
Sale Sold out
SKU S-DJI-M4-CH-HUB-200 MPN CP.EN.00000707.01 UPC 190021151109
  • Sequential logic charges three batteries in order.
  • Ready mode reaches 90% in 60 minutes.
  • High power 200W output increases charging speeds.
  • Performance is 30% faster than 100W hubs.
  • SDC fast charge cable included for safety.
  • Compatible with DJI Power 1000 power stations.
  • Dual modes support standard or rapid deployment.
  • Designed specifically for Matrice 4 series aircraft.
  • Reliable operation in varied environmental thermal conditions.
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 4 Series Charging Hub 200W: Professional Field Charging

The DJI Matrice 4 Series Charging Hub 200W is the premier power management accessory for operators utilizing the Matrice 4E and 4T aircraft. This 200W hub is designed to handle high current throughput, significantly reducing the interval between flight missions compared to standard 100W charging solutions.

By utilizing a sequential charging logic, the hub identifies and tops off the most charged battery first, providing a ready to fly solution in the shortest time possible. It is the ideal choice for surveyors and mappers who need to maintain maximum aerial uptime throughout the workday.

Key Features

  • Optimized throughput: Provides 200W maximum output for significantly faster battery recovery.
  • Battery capacity: Manages three Matrice 4 series batteries within one compact unit.
  • Quick Deployment (90% charge): Reaches capacity in approximately 40 minutes.
  • Full Charge (100% charge): Completes a standard cycle in approximately 55 minutes.
  • High speed cable: Utilizes a dedicated SDC cable for safe power transmission.
  • Operational flexibility: Features two charging modes tailored to specific mission requirements.
  • Broad compatibility: Interfaces seamlessly with the DJI Power 1000 portable station.
  • Rugged design: Built to operate in temperatures from 41 to 104 Fahrenheit.

The 200W charging hub is a vital tool for professionals who cannot afford to wait on slow power cycles. By integrating this hub into a mobile kit, pilots can ensure they have a constant rotation of fresh batteries. The unit provides a consistent and powerful charging solution that maximizes the utility of the Matrice 4 series.

Dronefly is your exclusive partner for integrated UAS solutions, providing the specialized equipment needed for professional success. Our team ensures you receive a fully supported power management system that is customized to your specific operational needs.

Purchase your charging hub from Dronefly to experience a partnership that supports your growth from beginning to end.

  • Model Name: CHX345-200.
  • Rated Power: 200W.

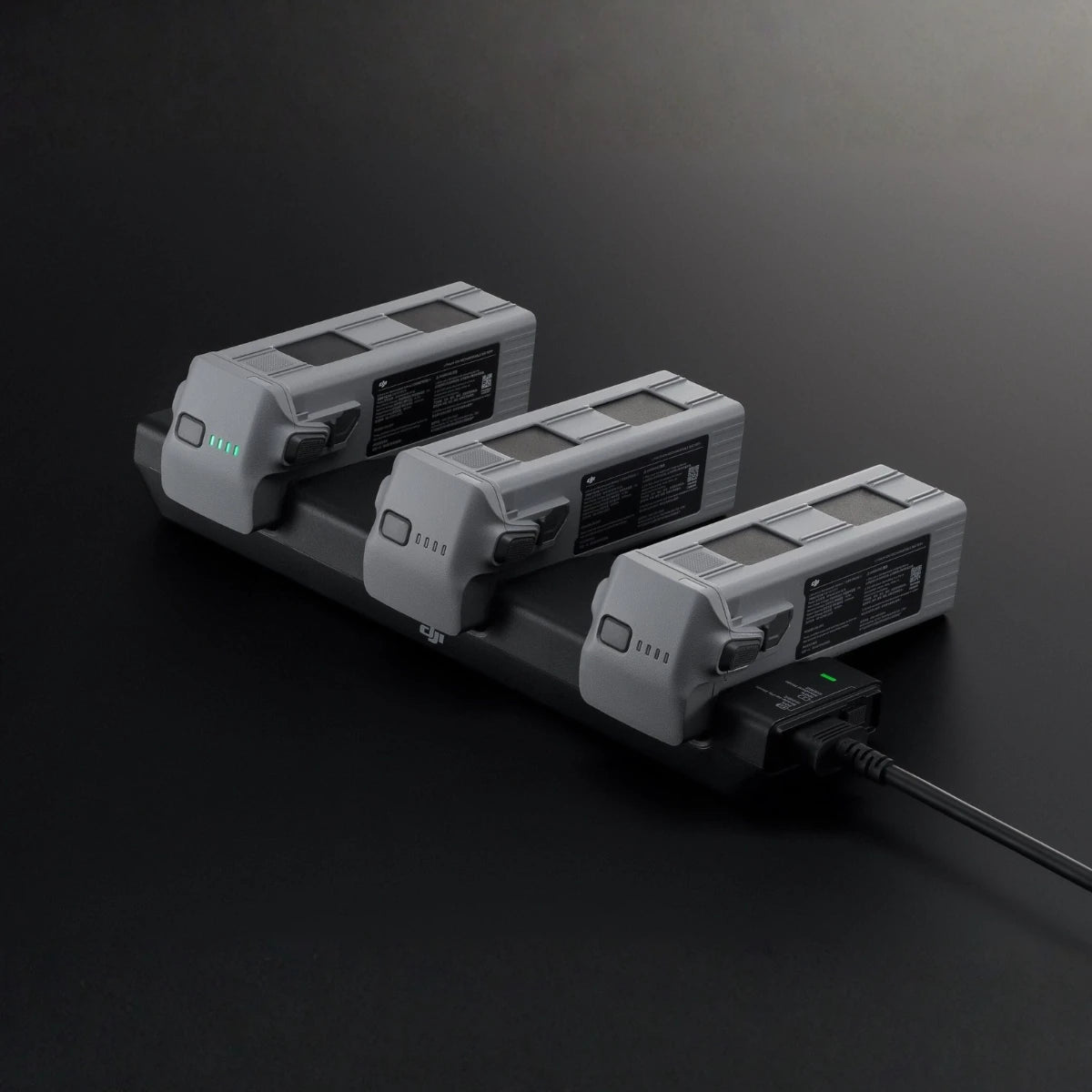

  • Battery Capacity: Charges up to three Intelligent Flight Batteries.
  • Charging Logic: Sequential (charges the battery with the most remaining power first).
  • Input Requirements: 11.2 V to 17 V (maximum 12.1 A).
  • Compatible Batteries: Specifically for BPX345-6741-14.76 (Matrice 4 Series).
  • Required Power Adapter: Must be used with the DJI 240W Portable Charger (model: CDX230-240) or a DJI Power 100 station to reach full speed.
  • Operational Modes:Standard Mode: Charges to 100% sequentially.Ready-to-Fly Mode: Charges to 90% sequentially and maintains that level for rapid deployment.
  • Operating Temperature: 5°C to 40°C (41°F to 104°F).
  • 1x DJI Matrice 4 Series Charging Hub (200W)
  • 1x SDC Fast Charge Cable
Does the DJI Matrice 4 Series Charging Hub 200W include the power adapter in the box?

The hub comes with an SDC Fast Charge Cable, but the 240W Portable Charger is sold separately or as part of a larger bundle. Users must ensure they have a compatible 240W power source or a DJI Power 1000 station to utilize the 200W charging capabilities. Without the proper adapter, the hub cannot reach its maximum rated performance.

What happens if the operating temperature exceeds 40 degrees Celsius while charging?

The charging hub is designed to operate within a specific thermal range of 5 to 40 degrees Celsius. If the environment or the batteries exceed these temperatures, the internal safety protocols may slow or pause the charging process to prevent damage. It is recommended to use the hub in a shaded or ventilated area during extreme heat.

Why does the hub charge the battery with the most power first instead of the one with the least?

Sequential charging from high to low power levels is a strategic feature designed to get the pilot back in the air quickly. By topping off the battery that is already closest to full, the hub provides a flight ready battery in a fraction of the time it would take to charge a dead battery. This logic is standard for professional DJI enterprise charging solutions.

Can I leave batteries in the hub in Ready-to-Fly Mode for several days?

While Ready-to-Fly Mode maintains batteries at 90% for quick use, it is not intended for long term storage. For storage periods exceeding a few days, batteries should be discharged to their recommended storage level to maintain cell health. The hub is best used for active mission days where rapid deployment is the priority.

Is this hub compatible with the DJI Matrice 4T and 4E batteries?

Yes, the hub is specifically designed for the Intelligent Flight Batteries used by the Matrice 4T and Matrice 4E. It provides the exact voltage and current management required for these specific enterprise cells. Using official DJI hubs ensures the longevity and safety of your expensive flight battery assets.
