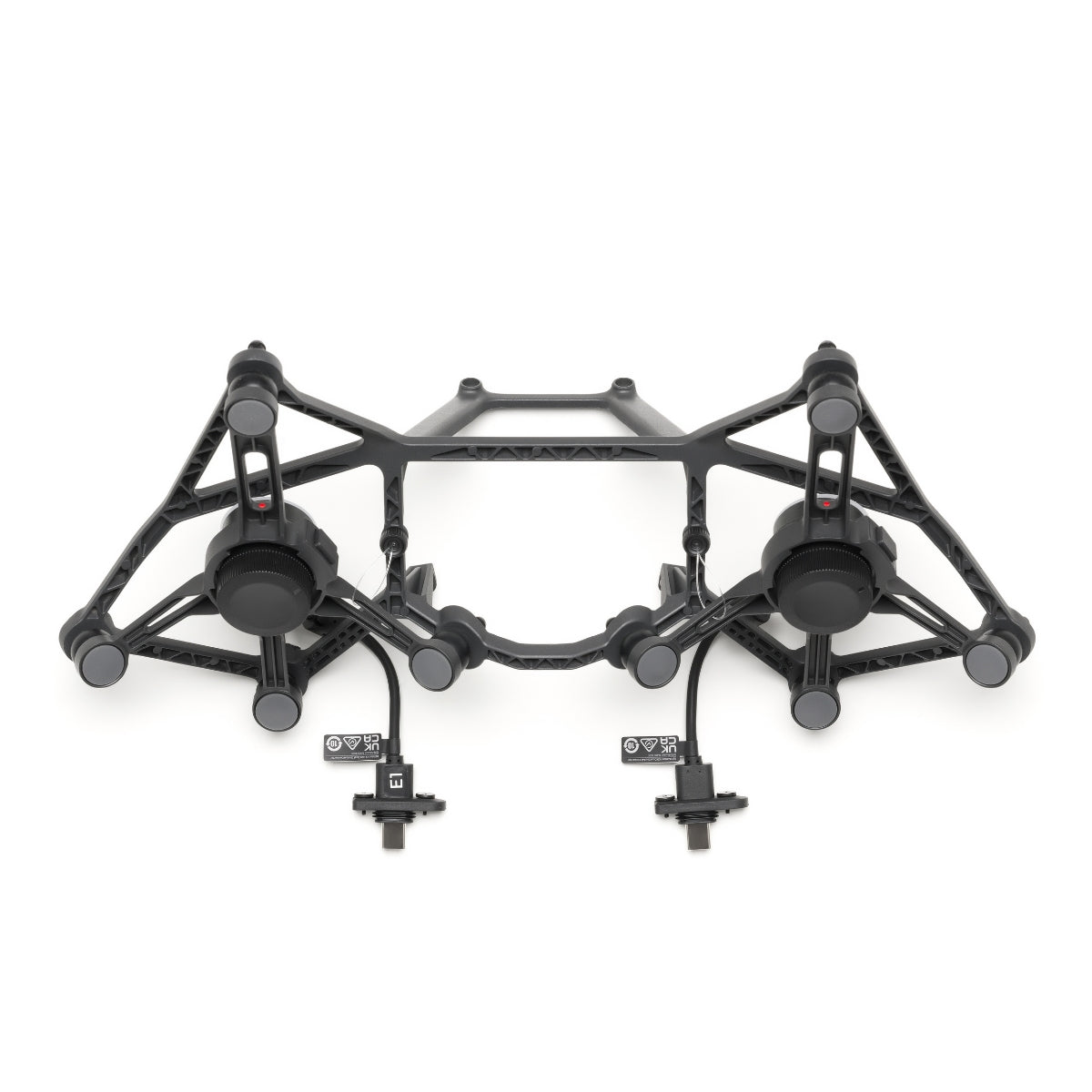

• DJI Matrice 400 Dual Gimbal Connector Image 1

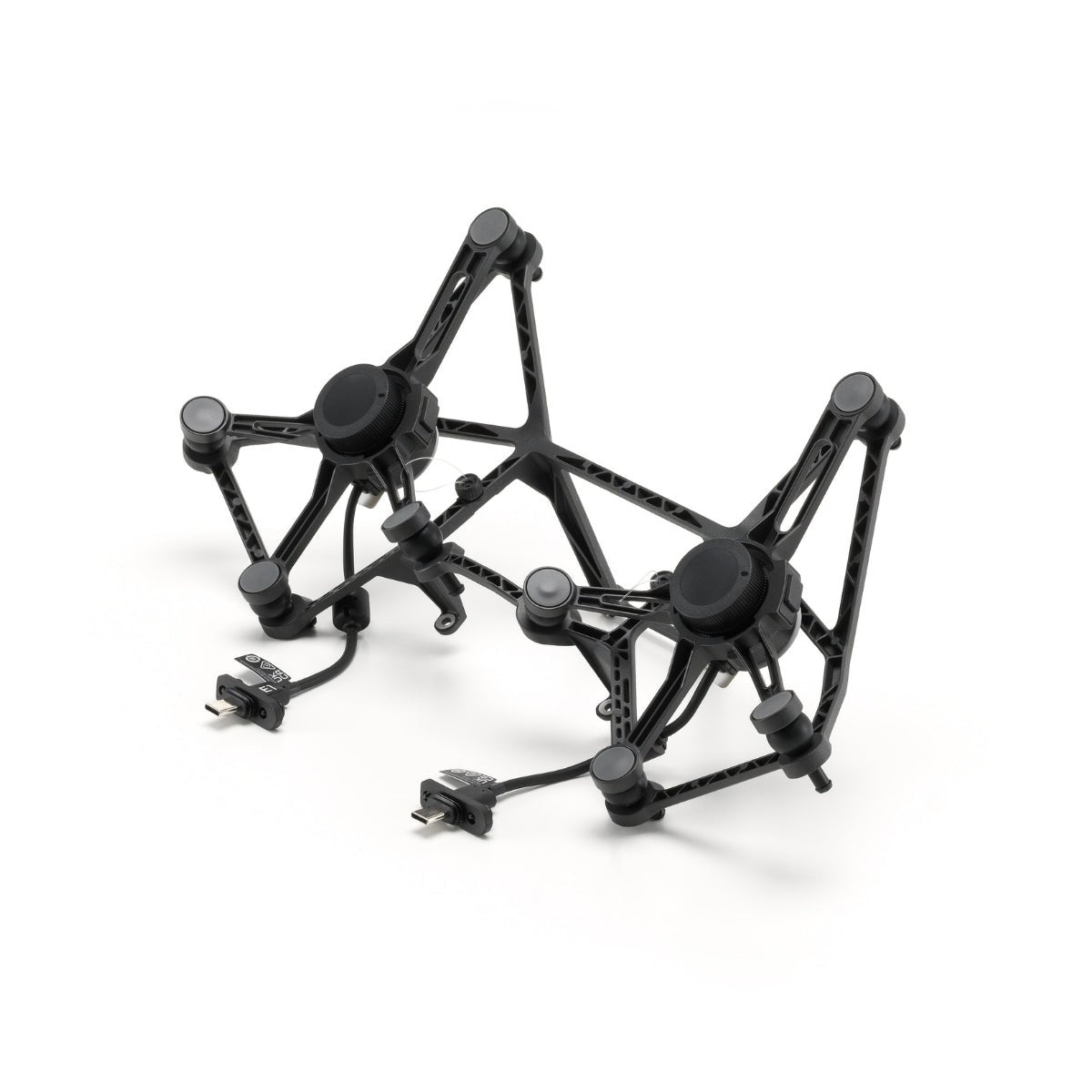

  • DJI Matrice 400 Dual Gimbal Connector Image 2

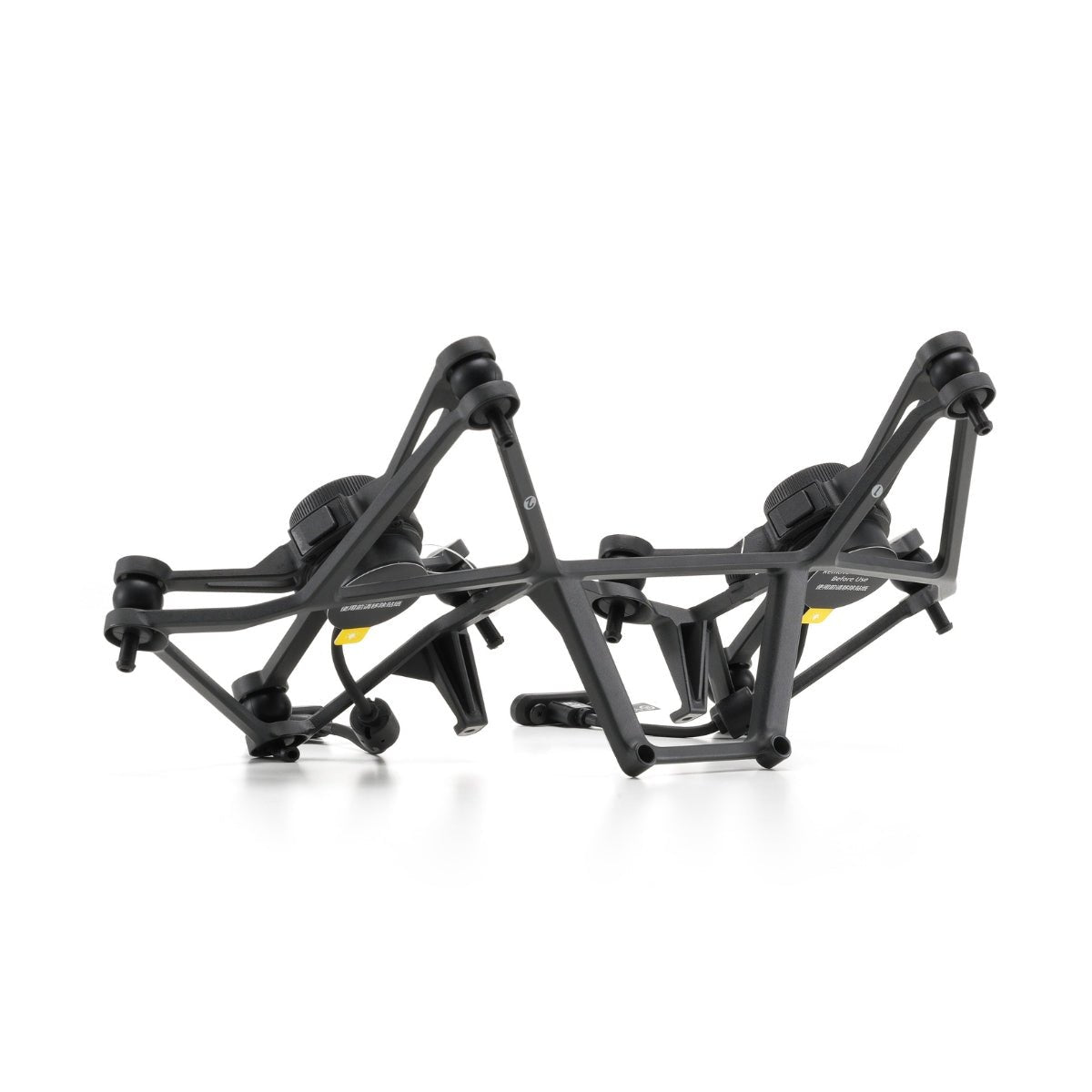

  • DJI Matrice 400 Dual Gimbal Connector Image 3

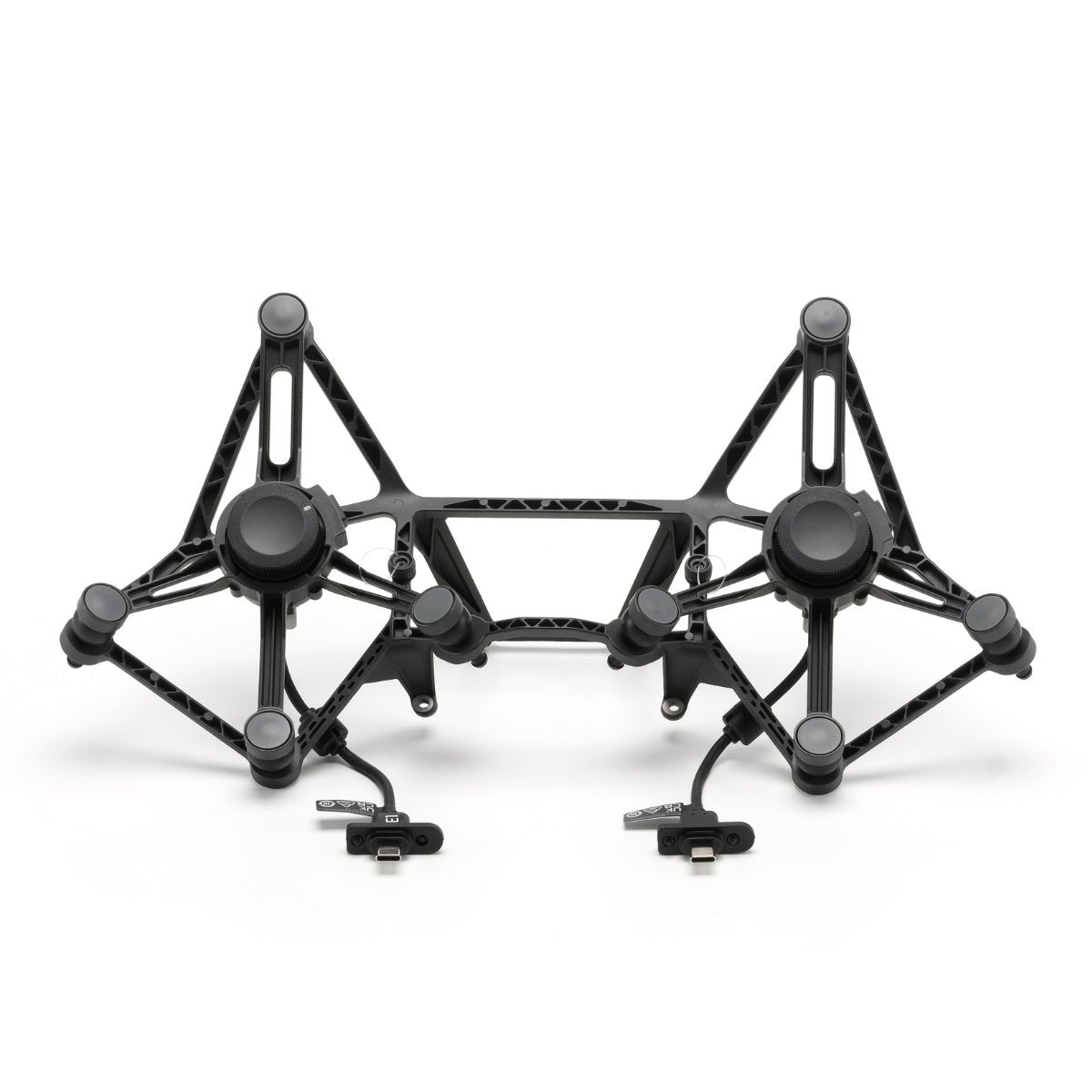

  • DJI Matrice 400 Dual Gimbal Connector Image 4
1 4

DJI Matrice 400 Dual Gimbal Connector

DJI Matrice 400 Dual Gimbal Connector

$349.00
$349.00
Sale Sold out
SKU S-DJI-M400-DGC MPN CP.EN.00000671.01 EAN 6937224123601 UPC 190021149083
  • Side-by-side dual gimbal mounting for maximum multi-sensor operational efficiency.
  • Dedicated 33.5 oz (950 g) payload capacity for each connector position.
  • High-strength aluminum alloy frame for professional-grade durability and stability.
  • Parallel lower-mount rails maintain perfect airframe balance during flight operations.
  • Comprehensive interface support including CAN, UART, PWM, and SBus protocols.
  • Seamless integration with DJI Zenmuse H30, P1, and L2 payloads.
  • Specialized support for third-party sensors via the DJI Payload SDK.
  • Mandatory power-off installation protocol ensures electrical system safety and longevity.
  • Reduced damper lifespan warning for mission payloads exceeding 950 g.
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 400 Dual Gimbal Connector: Industrial Multi-Sensor Mission Tool

The DJI Matrice 400 Dual Gimbal Connector is a precision-engineered accessory designed for enterprise users who require advanced multi-sensor flexibility. This connector enables the Matrice 400 to carry two downward-facing payloads side-by-side, such as the Zenmuse H30 and P1, for simultaneous visual and thermal data acquisition. Built with a high-strength aluminum frame and integrated data interfaces, it ensures that both payloads receive consistent power and control signals. This capability is vital for high-resolution surveying and mapping missions where efficiency and data density are the primary metrics for success.

DJI Matrice 400 Dual Gimbal Connector overview

  • Multi-sensor capability: enables two stabilized payloads to be operated side-by-side on one airframe.
  • Balanced deployment: parallel rail system prevents center-of-gravity shifts during high-speed maneuvers.
  • Universal payload support: compatible with all Zenmuse enterprise sensors and custom SDK devices.
  • Robust interface: features dedicated connections for power, control, and high-bandwidth data transmission.
  • High load capacity: supports up to 33.5 oz (950 g) per mounting point for industrial sensors.
  • Component longevity: highlights that heavy payloads over 950 g reduce damper life to 400 hours.
  • SDK integration: allows for the deployment of specialized third-party sensors via the DJI SDK.
  • Mission-ready setup: designed for quick installation to facilitate rapid deployment in the field.

The DJI Matrice 400 Dual Gimbal Connector provides the structural and electronic foundation for complex, multi-layered aerial inspections. It effectively solves the challenge of capturing disparate data types by enabling a dual-sensor configuration that works in perfect harmony. This accessory ensures that your mission results are comprehensive and gathered with the highest degree of operational efficiency.

Dronefly is your premier UAV partner, providing the fully customizable solutions and expertise needed to optimize your fleet. Our team is dedicated to helping you achieve a seamless UAV Solutions Lifecycle through integrated hardware and comprehensive support. Secure your mission's success by ordering the DJI Matrice 400 Dual Gimbal Connector from Dronefly.

  • Maximum Payload per Position: 950 g.
  • Mounting Ports: Connects to the E1 or E2 port of the aircraft's E-Port V2 system.
  • Weight: Approximately 160 g.
  • Ingress Protection: The waterproof rating depends entirely on the attached payload's rating.
  • 1x DJI Matrice 400 Dual Gimbal Connector
Can I install the dual gimbal connector while the M400 is powered on?

The Dual Gimbal Connector must only be installed or removed while the Matrice 400 is completely powered off. Handling the hardware while the aircraft is active can cause electrical issues or communication failures within the E-Port V2 system. Always ensure a cold-start after the physical installation is complete.

Can I use this with third-party cameras?

Yes, the Dual Gimbal Connector is fully compatible with the DJI Payload SDK. This allows for the integration of specialized third-party sensors, providing the necessary power and data interfaces. This makes the M400 a highly versatile platform for custom industrial or research applications.

What happens if my sensor weighs more than 950 g?

If your attached payload exceeds the 950 g limit per position, the gimbal damper lifespan will be significantly reduced. Under standard weight, dampers last 1,000 hours, but heavy payloads drop this service life to 400 hours. You should plan your maintenance schedule accordingly if flying heavy equipment.

Where exactly is the connector mounted on the drone?

This accessory is mounted securely beneath the Matrice 400 using its parallel lower-mount rails. This bottom dual-port configuration ensures that both sensors have an unobstructed downward field of view. This positioning is ideal for mapping, infrastructure inspection, and public safety missions.

How do I check if my gimbals are compatible?

Most Zenmuse gimbals, like the H30 series and L3 Series, are compatible but may require a firmware update via the DJI Pilot 2 app. The connector itself acts as a bridge between the E-Port V2 and the payload. Always verify that your drone and sensors are running the latest software for stable operation.
