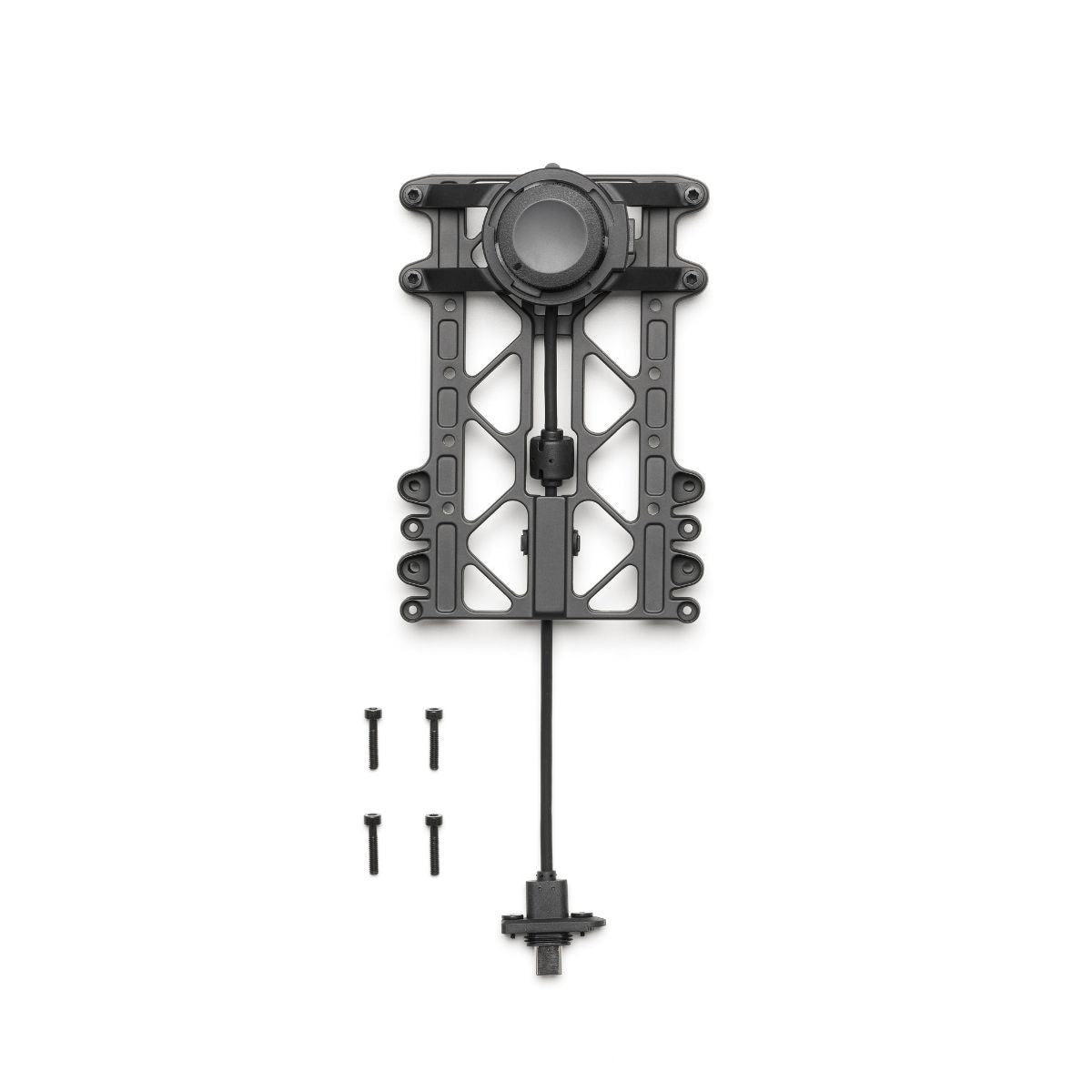

• DJI Matrice 400 Third Gimbal Connector Image 1

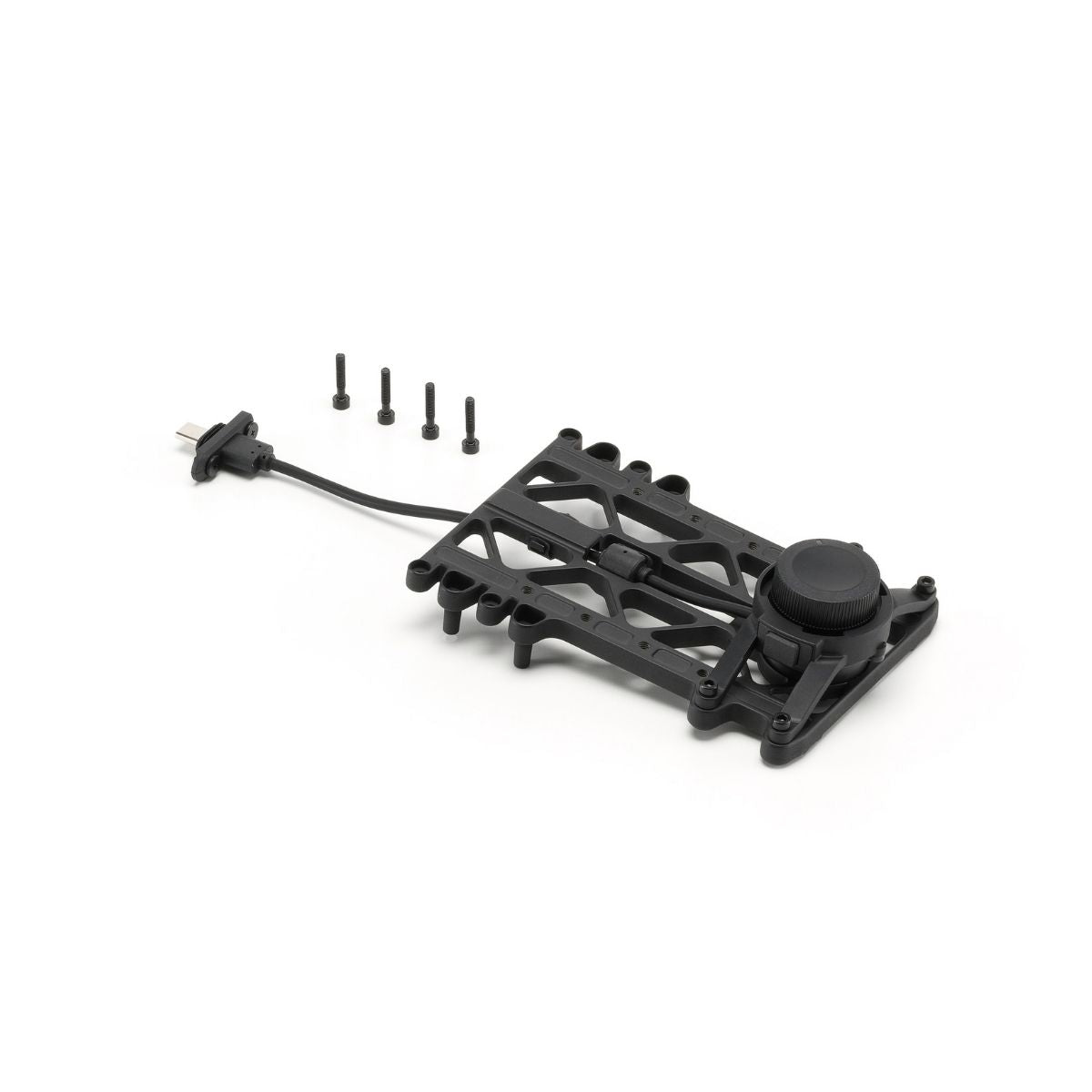

  • DJI Matrice 400 Third Gimbal Connector Image 2

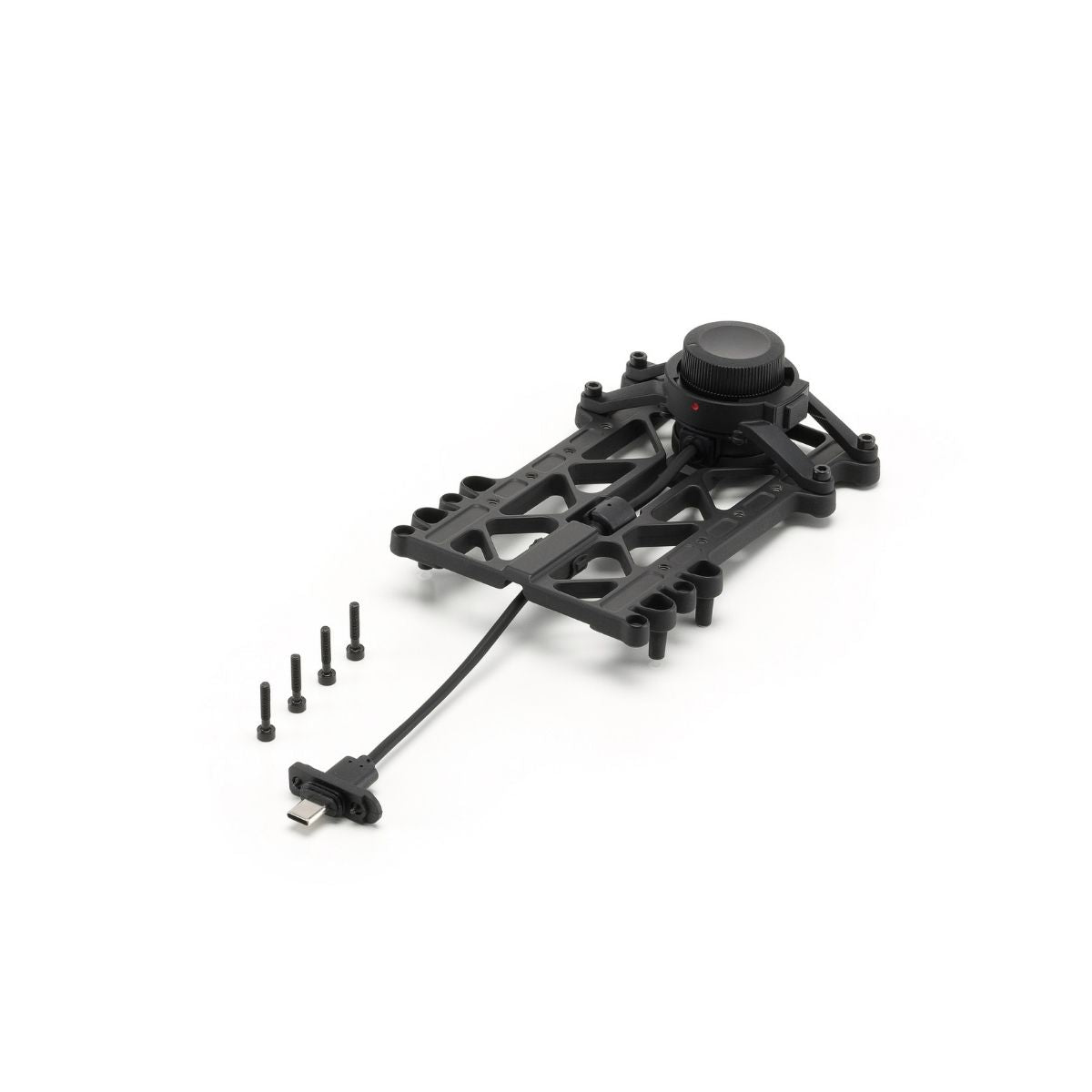

  • DJI Matrice 400 Third Gimbal Connector Image 3

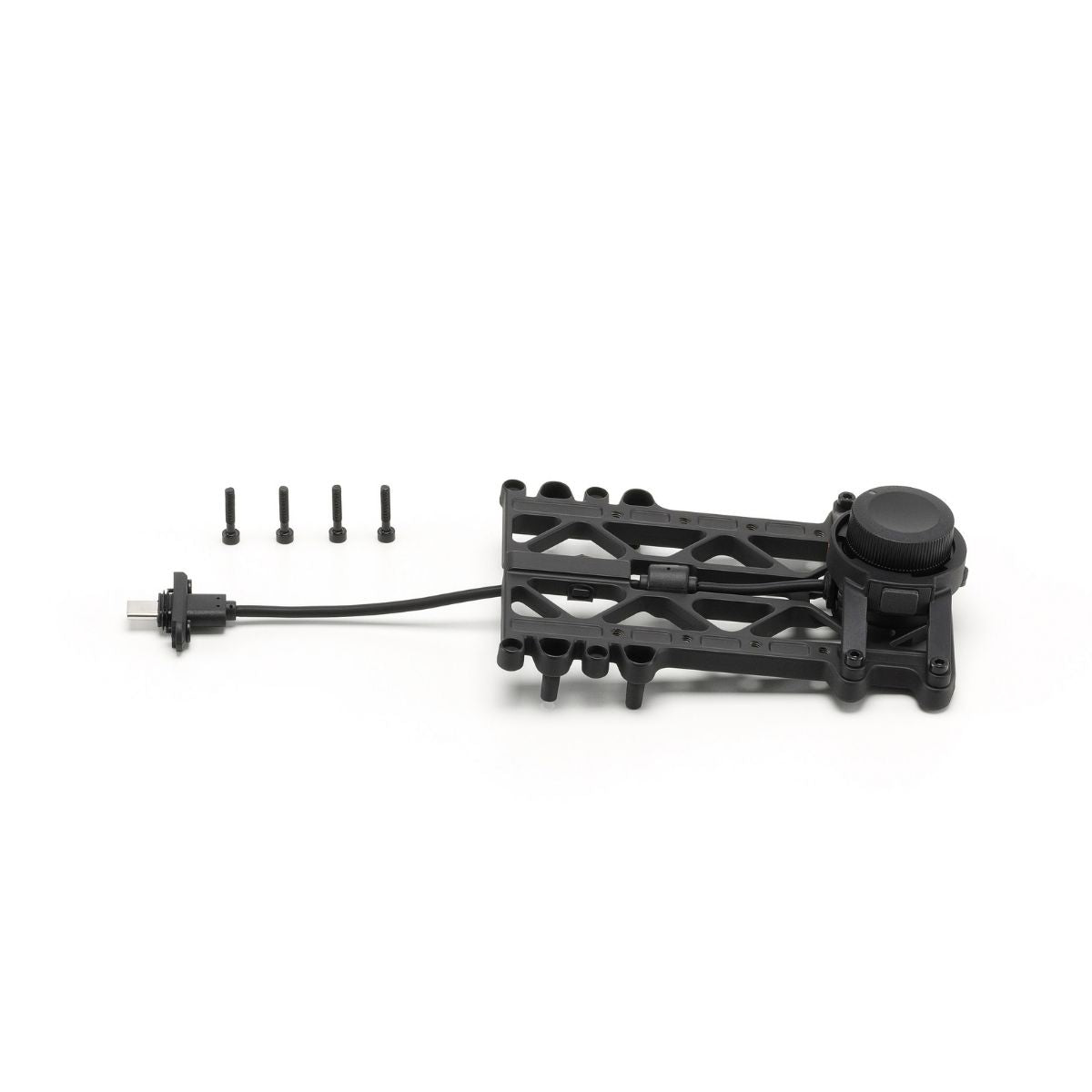

  • DJI Matrice 400 Third Gimbal Connector Image 4
1 4

DJI Matrice 400 Third Gimbal Connector

DJI Matrice 400 Third Gimbal Connector

$189.00
$189.00
Sale Sold out
SKU S-DJI-M400-TGC MPN CP.EN.00000672.01 EAN 6937224123748 UPC 190021149229
  • Triple downward sensor mounting for maximum aerial data collection efficiency.
  • Supports 6.6 lbs (3 kg) payloads via quick-release port interface.
  • Heavy-duty 13.2 lbs (6 kg) capacity with screw-lock fastening connection.
  • Active gyroscopic stabilization for level imaging during intensive flight.
  • Seamlessly integrates with M400 E-Port V2 E3 or E4 ports.
  • Complete kit includes 1x connector and 4x M3 mounting screws.
  • Optimized for industrial inspection, mapping, and emergency response missions.
  • Architecture-specific design for secure underside payload expansion and safety.
  • Professional-grade reliability for demanding enterprise UAV flight operations.
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 400 Third Gimbal Connector: Multi-Sensor Mission Integration

The DJI Matrice 400 Third Gimbal Connector is a professional-grade expansion module that enables the integration of triple downward-facing payloads. This accessory is vital for enterprise operators who need to combine multiple data streams—such as photogrammetry, thermal imaging, and gas detection—into a single flight. Built to industrial standards, it provides a stable and secure mounting point on the underside of the aircraft with support for heavy-duty screw-lock fastening. The connector ensures that your specialized equipment remains perfectly stabilized via internal gyroscopic control, delivering the high-quality results expected in professional surveying and infrastructure inspection.

DJI Matrice 400 Third Gimbal Connector overview

  • Mission versatility: enables a third stabilized downward payload for comprehensive data collection.
  • Dual mounting options: features a 6.6 lb (3 kg) quick-release or 13.2 lb (6 kg) screw-lock system.
  • Stabilization control: built-in gyroscopic sensors keep third-party and DJI payloads perfectly level.
  • Efficient connectivity: utilizes E3 or E4 port integration for seamless communication and power.
  • Rugged construction: designed to withstand the rigors of industrial field use and heavy sensors.
  • Installation kit: provides all necessary M3 screws for a secure and professional airframe fit.
  • Mission optimization: reduces flight time by allowing three sensors to operate simultaneously.
  • Safety first: engineered for secure lock fastening to prevent payload detachment during maneuvers.

The DJI Matrice 400 Third Gimbal Connector is the key to unlocking the full operational potential of your M400 fleet. It provides the structural integrity and stabilized performance required for the industry’s most demanding payloads. By enabling a triple-sensor configuration, it allows professionals to capture more data with greater precision in less time.

Dronefly is your exclusive partner for advanced UAV solutions, providing the hardware and support necessary for complex enterprise deployments. Our team understands the nuances of the M400 architecture and can help you optimize your multi-sensor configurations for peak performance. Enhance your operational flexibility by ordering the DJI Matrice 400 Third Gimbal Connector from Dronefly.

Load Capacity

  • 6 kg with screw-lock mounting
  • 3 kg with quick-release mounting

Mounting and Interface

  • Mounting position: underside (third gimbal/payload connector)
  • Interface: E-Port V2 (E3 or E4 port)
  • Industrial-grade secure locking mechanism
  • Install only while aircraft is powered off

Payload Support

  • Supports Zenmuse H30 series
  • Supports Zenmuse L2
  • Supports Zenmuse P1
  • Supports compatible third-party payloads

Included Components

  • Third gimbal connector
  • M3 mounting screws

Compatibility

  • DJI Matrice 400
  • 1x DJI Matrice 400 Third Gimbal Connector
  • 4x M3 Screws
How do I switch between E3 and E4 port configurations?

TheThird Gimbal Connector is a dedicated mounting interface on the aircraft's belly and does not use the E3 or E4 ports. However, you can use the E-Port V2 system (E1-E4) simultaneously to add non-gimbaled sensors like spotlights or speakers. The flight software will automatically detect all connected gimbals and E-Port payloads once the aircraft is powered on.

What sensors are compatible with the 13.2 lb weight limit?

The 13.2 lb (6 kg) limit via screw-lock fastening allows for the mounting of high-end LiDAR scanners, heavy multispectral arrays, or specialized cinematography cameras. Always verify the total weight of the gimbal, camera, and any mounting plates before installation to stay within these certified limits.

Is a tool required for every payload change?

If you are using the quick-release port, you can swap payloads without tools once the connector is mounted to the aircraft. However, if your mission requires the higher 13.2 lb capacity of the screw-lock fastening, you will need to use the provided M3 screws to secure the sensor.

Does this connector support the DJI Zenmuse H30 series?

Yes, the third gimbal connector is fully compatible with the DJI Enterprise sensor ecosystem, including the H30 and H20 series. When combined with primary and secondary gimbals, you can create a comprehensive multi-spectral and optical suite for detailed infrastructure or environmental monitoring.

Why doesn't the Matrice 400 support an upward gimbal?

The DJI Matrice 400 architecture is specifically engineered for optimized downward-facing sensor performance and airframe balance. To maintain these flight characteristics and safety standards, the system does not support upward-facing gimbal mounting. All three supported gimbal positions are located on the underside of the drone.
