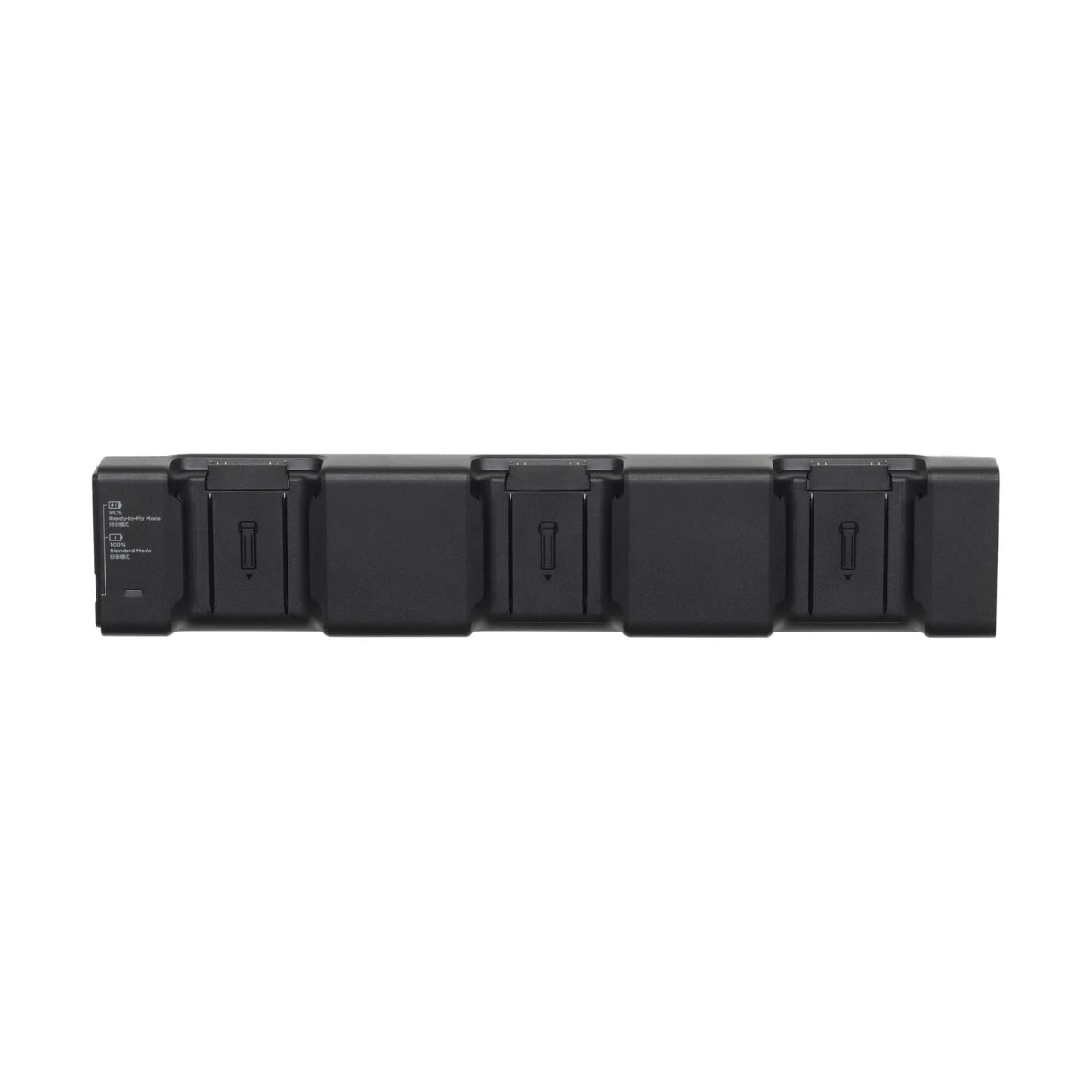

  • DJI Matrice 4 Series Charging Hub (200W)
  • DJI Matrice 4 Series Charging Hub (200W)
1 13

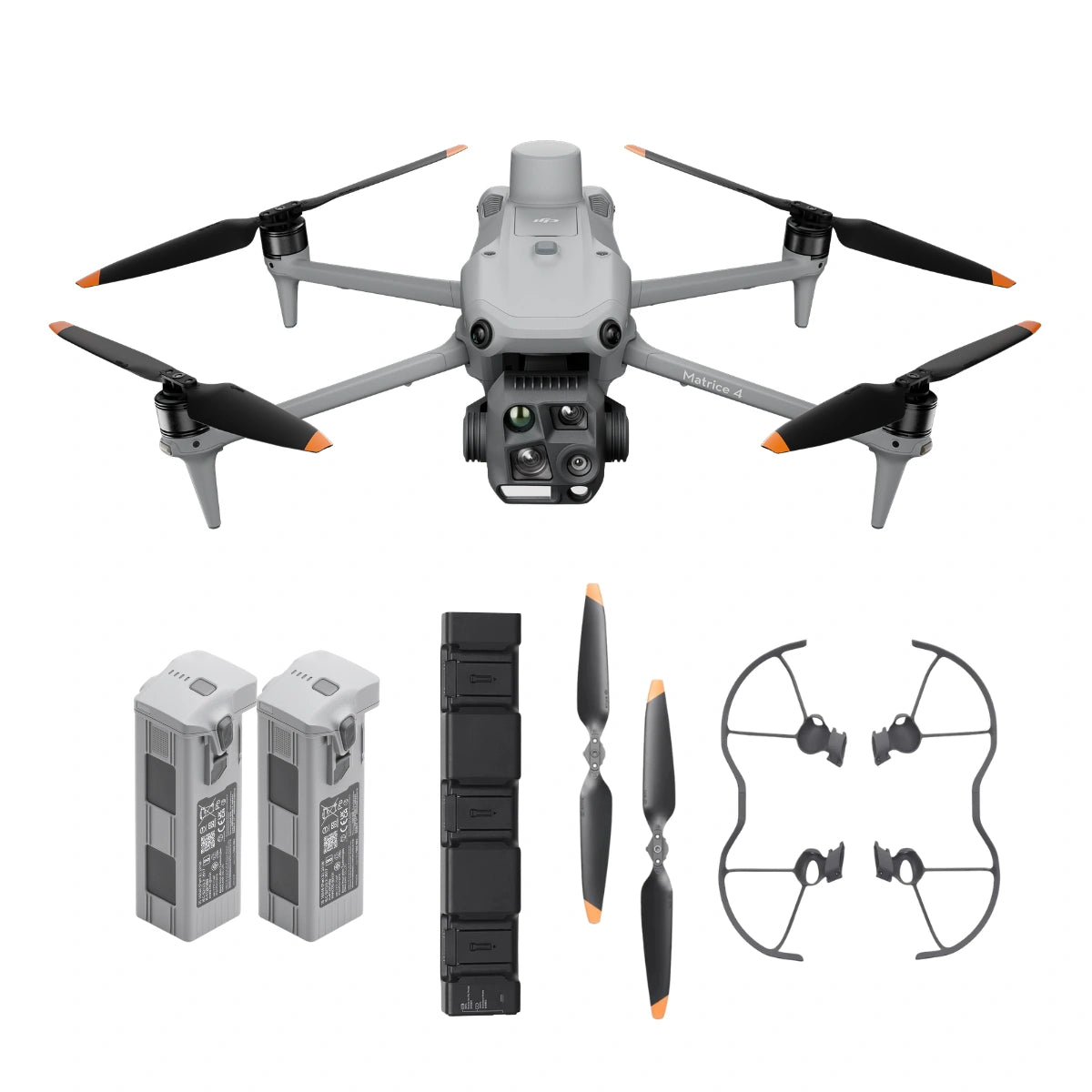

DJI Matrice 4T + 2x Batteries & 1x Charging Hub (200W)

DJI Matrice 4T + 2x Batteries & 1x Charging Hub (200W)

$7,874.00
$7,874.00
Sale Sold out
SKU B-NB-M4T-BUN MPN CP.EN.00000546.01 EAN 6941565994172 UPC 190021119307
  • Quad-sensor payload combines thermal wide medium tele zoom
  • Three total batteries extend deployment depth for any mission
  • Fast 200W hub sequences charging across three battery bays
  • Omnidirectional avoidance holds at full forward flight speed
  • Real-time AI flags people vehicles and vessels instantly
  • High-res thermal reaches 1280 by 1024 pixel clarity
  • Reinforced guards shield all four blades in tight spaces
  • Five total propellers support ongoing field spares coverage
  • Centimeter RTK positioning enables precise autonomous flight paths
  • NIR illumination extends visibility through extended nighttime field operations
Request Info / Quote ☎︎ 1 (805) 480-4033

View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 4T + 2x Batteries & 1x Charging Hub (200W): Complete Power Kit for Mission-Ready Deployment

The DJI Matrice 4T + 2x Batteries & 1x Charging Hub (200W) bundle arrives configured for immediate, extended-duration deployment, combining DJI's quad-sensor enterprise aircraft with the battery depth and charging capacity operators need before their first mission.

This configuration builds on the standard M4T Universal Edition kit by adding two DJI Matrice 4 Series Batteries and a 200W Charging Hub, bringing total battery count to three and adding a three-bay sequential charging path. Whether you're deploying a single aircraft or integrating into a larger platform lineup, the M4T's wide, medium tele, and 7x tele cameras pair with a 640 x 512 thermal sensor, laser range finder, and NIR light in one compact airframe.

Key Features and Benefits

  • Thermal sensing: 640x512 imager resolves usable heat signatures after dark.
  • Hybrid zoom reach: 112x tele optics resolve detail from 820 feet.
  • Battery depth: three total units support sustained multi-flight deployment schedules.
  • Sequential fast charge: 200W hub processes three batteries in priority order.
  • Real-time AI: onboard processor flags people, vehicles, and vessels instantly.
  • Full-speed sensing: omnidirectional avoidance holds through 47 mph forward flight.
  • Fast standup: 15-second launch via vision-assisted home point update system.
  • Precision positioning: built-in RTK delivers centimeter accuracy without ground points.
  • Blade protection: guard set shields all four propellers during close work.
  • Spares coverage: five total propellers support ongoing field-ready operational readiness.

A single battery rarely covers a full day of enterprise flight operations, and this configuration is designed around that reality. Three total batteries give operators the depth to rotate power through extended missions, while the 200W Charging Hub processes up to three Intelligent Flight Batteries in charge-priority sequence to minimize downtime between flights.

Two additional propellers add to your spares inventory, and the included Propeller Guard set shields all four blades for close-proximity or indoor work. Keep in mind the 200W Charging Hub requires the DJI 240W Portable Charger or DJI Power 1000, sold separately.

Built for Continuous Field Readiness

A single battery rarely stretches across a full deployment day, which is exactly the gap this configuration closes. Three batteries and a 200W Charging Hub give your operation the depth to run extended missions while keeping a battery charging in the background rather than waiting between flights.

The hub's three bays process power in priority order, addressing the highest-charge battery first for the fastest possible turnaround. Paired with additional propeller stock and a full guard set, this bundle equips a single operator or a growing platform lineup for continuous field readiness.

Compatibility and System Integration

  • DJI RC Plus 2 Enterprise: designated flight controller for the M4T (included).
  • Matrice 4 Series Battery: three total units ship with this configuration (included).
  • 200W Charging Hub: three-bay sequential charging for Matrice 4 batteries (included).
  • DJI 240W Portable Charger: required to power the hub (sold separately).
  • Matrice 4 Series Propellers: five blades total across kit and bundle (included).
  • Propeller Guard set: dual-arm coverage protecting all four blades (included).
  • DJI FlightHub 2: enables remote visibility and AI detection tools (sold separately).

Applications and Use Cases

  • Extended search missions: battery depth sustains multi-hour search and rescue coverage.
  • Powerline inspection: 7x tele optics resolve hardware from safe standoff range.
  • Confined-space work: propeller guards support safer indoor and close-range operation.
  • Fast turnaround: 200W hub delivers charged batteries between mission legs quickly.
  • Night deployment: thermal and NIR sensing hold visibility well after sunset.
  • Public safety operations: AI detection supports monitoring and vehicle tracking tasks.
  • Infrastructure monitoring: thermal measurement enables round-the-clock facility and substation checks.

The Matrice 4T exists to put thermal imaging, long-range zoom, and AI detection into one deployable platform, and this configuration extends that same readiness to your power and spares inventory. Three batteries, faster charging, extra propellers, and blade protection mean less logistics overhead and more time in the field.

Whether you're flying your first Matrice 4T or expanding an existing platform lineup, this configuration keeps power depth and spares readiness built in from the start. Dronefly stocks the full kit together so operators skip the extra step of sourcing batteries and charging hardware separately.

Shop the DJI Matrice 4T + 2x Batteries & 1x Charging Hub (200W) bundle now at Dronefly.

Aircraft

  • Takeoff Weight (with propellers): 1219 g* - *The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.
  • Takeoff Weight (with Low-Noise propellers): 1229 g* - *The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.
  • Max Takeoff Weight: Standard Propellers: 1420 g, Low-Noise Propellers: 1430 g
  • Dimensions: Folded: 260.6×113.7×138.4 mm (L×W×H), Unfolded: 307.0×387.5×149.5 mm (L×W×H), Maximum dimensions excluding propellers.
  • Max Payload: 200 g
  • Propeller Size: 10.8 in
  • Diagonal Wheelbase: 438.8 mm
  • Max Ascent Speed: 10 m/s
  • Maximum Ascent Speed With Accessories: 6 m/s
  • Max Descent Speed: 8 m/s
  • Max Descent Speed With Accessories: 6 m/s
  • Max Horizontal Speed (at sea level, no wind): 21 m/s, 21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways. No faster than 19 m/s with Sport mode in EU regions.
  • Max Altitude: 6000 m
  • Max Operating Altitude with Payload: 4000 m
  • Max Flight Time (without wind): 49 min (standard propellers), 46 min (low-noise propellers). Measured with the aircraft flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment.
  • Max Hover Time (without wind): 42 min (standard propellers), 39 min (low-noise propellers). Measured with the aircraft flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment.
  • Max Flight Distance (no wind): 35 km (standard propellers), 32 km (low-noise propellers). Measured by the aircraft hovering in a windless environment at sea level, from 100% battery level until 0%.
  • Max Wind Speed Resistance: 12 m/s** Max wind speed resistance during takeoff and landing.
  • Max Pitch Angle: 35°
  • Operating Temperature: -10℃ to 40℃ (14°F to 104°F)
  • GNSS: GPS + Galileo + BeiDou + GLONASS** GLONASS is supported only when the RTK module is enabled.
  • Hovering Accuracy Range (windless or breezy): ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)
  • RTK GNSS Accuracy: RTK Fix: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
  • Internal Storage: N/A
  • Ports: E-Port interface × 1: Supports official accessories and third-party PSDK devices (hot-swapping is not supported). E-Port Lite interface × 1: supports USB connection to DJI tuning software and some third-party PSDK devices. Accessories or expansion modules must be installed before powering on.
  • Propeller Model: 1157F (standard propellers), 1154F (low noise propeller)
  • Beacon: Built into the aircraft

Camera

  • Image Sensor: DJI Matrice 4T Wide: 1/1.3-inch CMOS, Effective Pixels: 48 MP, Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP, Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP, DJI Matrice 4E Wide: 4/3-inch CMOS, Effective Pixels: 20 MP, Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP, Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP
  • Lens: DJI Matrice 4T FOV: 82°, Equivalent Focal Length: 24 mm, Aperture: f/1.7, Focus: 1 m to ∞, DJI Matrice 4E FOV: 84°, Equivalent Focal Length: 24 mm, Aperture: f/2.8-f/11, Focus: 1 m to ∞, Medium Tele Camera FOV: 35°, Equivalent Focal Length: 70 mm, Aperture: f/2.8, Focus: 3 m to ∞, Tele camera FOV: 15°, Equivalent Focal Length: 168 mm, Aperture: f/2.8, Focus: 3 m to ∞
  • ISO Range: Normal Mode: ISO 100 to ISO 25600, Night Scene Mode: Matrice 4T: Wide Camera: ISO 100 to ISO 409600, Medium Tele Camera: ISO 100 to ISO 409600, Tele Camera: ISO 100 to ISO 819200, Matrice 4E: Wide Camera: ISO 100 to ISO 204800, Medium Tele Camera: ISO 100 to ISO 409600, Tele Camera: ISO 100 to ISO 409600
  • Shutter Speed: DJI Matrice 4T 2-1/8000 s, DJI Matrice 4E Wide: Electronic Shutter: 2-1/8000 s, Mechanical Shutter: 2-1/2000 s, Medium Telephoto: 2-1/8000 s, Telephoto: 2-1/8000 s
  • Max Photo Size: DJI Matrice 4T Wide: 8064 × 6048, Medium Telephoto: 8064 × 6048, Telephoto: 8192 × 6144, DJI Matrice 4E Wide: 5280 × 3956, Medium Telephoto: 8064 × 6048, Telephoto: 8192 × 6144
  • Minimum Photo Interval: DJI Matrice 4T: 0.7 s, DJI Matrice 4E: 0.5 s
  • Still Photography Modes: DJI Matrice 4T: Wide: Single: 12 MP/48 MP, Interval: 12 MP/48 MP, JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12MP, Panorama: 12 MP (raw image), 100 MP (stitched image), Medium Tele Camera: Single: 12 MP and 48 MP, Interval: 12 MP/48 MP, JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12MP, Telephoto: Single: 12 MP and 48 MP, Interval: 12 MP/48 MP, JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12MP, DJI Matrice 4E: Single: 20 MP, Interval: 20 MP, JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s, JPEG + RAW: 2/3/5/7/10/15/20/30/60 s, Smart Shooting: 20 MP, Panorama: 20 MP (raw image), 100 MP (stitched image), Medium Tele Camera: Single: 12 MP and 48 MP, Interval: 12 MP/48 MP, JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12 MP, Telephoto: Single: 12 MP and 48 MP, Interval: 12 MP/48 MP, JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12 MP
  • Video Codec and Resolution: Video Coding Format: H.264/H.265, Coding Strategy: CBR, VBR, Resolution: 4K: 3840 × 2160@30fps, FHD: 1920 × 1080@30fps
  • Max Video Bitrate: H.264: 60Mbps, H.265: 40Mbps
  • Supported File System: exFAT
  • Photo Format: DJI Matrice 4T: JPEG, DJI Matrice 4E: Wide: JPEG/DNG (RAW), Medium Tele Camera: JPEG, Telephoto: JPEG
  • Video Format: MP4 (MPEG-4 AVC/H.264)
  • Digital Zoom: Telephoto: 16x (112x hybrid zoom)

NIR Auxiliary Light

  • Infrared Illumination: DJI Matrice 4T: FOV: 5.7°±0.3°

Laser Module

  • Laser Rangefinding: Measurement Range: 1800 m (1 Hz) @20% reflectivity target* Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m Distance Measurement Accuracy: 1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σ Other Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters) * Performance degradation may occur in rainy or foggy conditions

Infrared Thermal Camera

  • Thermal Imager: DJI Matrice 4T: uncooled vanadium oxide (VOx) DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage.
  • Resolution: DJI Matrice 4T: 640 × 512
  • Pixel Pitch: DJI Matrice 4T: 12 μm
  • Frame Rate: DJI Matrice 4T: 30 Hz
  • Lens: DJI Matrice 4T DFOV: 45°±0.3°, DJI Matrice 4T equivalent focal length: 53 mm, DJI Matrice 4T Aperture: f/1.0, DJI Matrice 4T Focus: 5 m to ∞
  • Sensitivity: DJI Matrice 4T: ≤50mk@F1.0
  • Temperature Measurement Method: DJI Matrice 4T: Spot Meter, Area Measurement
  • Temperature Measurement Range: DJI Matrice 4T: High Gain Mode: -20℃ to 150℃ (-4°F to 302°F), Low Gain Mode: 0℃ to 550℃ (32°F to 1022°F)
  • Palette: DJI Matrice 4T: White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
  • Photo Format: DJI Matrice 4T: JPEG (8bit), R-JPEG (16bit)
  • Video Resolution: DJI Matrice 4T: 1280 × 1024@30fps (Super Resolution enabled, Night Mode not activated), Other conditions: 640 × 512@30fps
  • Video Bitrate: DJI Matrice 4T: 6.5Mbps (H.264 640 × 512@30fps), 5Mbps (H.265 640 × 512@30fps), 12Mbps (H.264 1280 × 1024@30fps), 8Mbps (H.265 1280 × 1024@30fps)
  • Video Format: DJI Matrice 4T: MP4
  • Still Photography Modes: DJI Matrice 4T: Single: 1280 × 1024/640 × 512, Interval: 1280 × 1024/640 × 512, JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
  • Photo Resolution: DJI Matrice 4T: Infrared: 1280 × 1024 (Super Resolution on), 640 × 512 (Super Resolution off)
  • Digital Zoom: DJI Matrice 4T: 28x
  • Infrared Wavelength: DJI Matrice 4T: 8um to 14um
  • Infrared Temperature Measurement Accuracy: DJI Matrice 4T: High Gain: ±2℃ or ±2%, whichever is greater, DJI Matrice 4T: Low Gain: ±5℃ or ±3%, whichever is greater

Gimbal

  • Stabilization System: DJI Matrice 4T: 3-axis (tilt, roll, pan), DJI Matrice 4E: 3-axis (tilt, roll, pan)
  • Mechanical Range: DJI Matrice 4T Gimbal Mechanical Limits: Tilt: -140° to 113°, Roll: -52° to 52°, Pan: -65° to 65°, Soft Limits: Tilt: -90° to 35°, Roll: -47° to 47°, Pan: -60° to 60°, DJI Matrice 4E Gimbal Mechanical Limits: Tilt: -140° to 50°, Roll: -52° to 52°, Pan: -65° to 65°, Soft Limits: Tilt: -90° to 35°, Roll: -47° to 47°, Pan: -60° to 60°
  • Controllable Rotation Range: DJI Matrice 4T: Pan: ±-90° to 35°, Pan: Not controllable, DJI Matrice 4E: Tilt: -90° to 35°, Pan: Not controllable
  • Max Control Speed (tilt): 100°/s
  • Angular Vibration Range: ±0.007°
  • Yaw Axis: Manual operation is uncontrollable. The MSDK interface program is controllable.
  • Ingress Protection Rating: No Standard Protection Level
  • Operating Temperature: Standard: -10°C to 40°C (14°F to 104°F)

Sensing

  • Sensing Type: Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.
  • Forward: Binocular Measurement Range: 0.4-22.5 m, Measurement Range: 0.4-200 m, Obstacle Avoidance Speed: Flight Speed ≤21 m/s, FOV: 90° (horizontal), 135° (vertical)
  • Backward: Measurement Range: 0.4-22.5 m, Measurement Range: 0.4-200 m, Obstacle Avoidance Speed: Flight Speed ≤21 m/s, Field of View (FOV): 90° (horizontal), 135° (vertical)
  • Lateral: Measurement Range: 0.5-32 m, Measurement Range: 0.5-200 m, Obstacle Avoidance Speed: Flight Speed ≤21 m/s, FOV: 90° (horizontal), 90° (vertical)
  • Downward: Measurement Range: 0.3-18.8 m, Obstacle Avoidance Speed: Flight Speed ≤10 m/s, The FOV to the front and rear is 160° and 160° to the right and left.
  • Operating Environment: Forward, Backward, Left, Right, and Upward: Delicate texture on the surface, adequate light. Downward: The ground has rich textures and sufficient lighting conditions*, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.). * Sufficient lighting conditions refer to an illuminance not lower than that of a nighttime city light scene.

Video Transmission

  • Video Transmission System: O4 Enterprise
  • Live View Quality: Remote Controller: 1080p/30fps
  • Operating Frequency: 2.400-2.4835 GHz, 5.725-5.850 GHz, 5.150-5.250 GHz (CE), Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
  • Transmitter Power (EIRP): 2.4 GHz: ≤33 dBm (FCC), ≤20 dBm (CE/SRRC/MIC), 5.8 GHz: <33 dBm (FCC), <30 dB (SRRC), <14 dBm (CE), 5.15-5.25: <23 dBm (FCC/CE)
  • Max Transmission Distance (unobstructed, free of interference): 25 km (FCC), 12 km (CE), 12 km (SRRC), 12 km (MIC). Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
  • Max Transmission Distance (with interference): Strong Interference - City Centers (approx. 1.5-5 km), Medium Interference - Suburban Areas (approx. 5-15 km), Micro interference: Suburbs/Seasides (approx. 15-25 km). * Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance.
  • Max Download Speed: 20 MB/s. The above data was measured under conditions where the aircraft and remote controller were in close proximity without interference.
  • Latency (depending on environmental conditions and mobile device): 130 ms. Under near-field interference-free conditions, the Latency performance when shooting with a 1x lens.
  • Antenna: 8 antennas, 2T4R
  • Others: Cellular Dongle Compartment

Memory Card

  • Supported SD Cards: U3/Class10/V30 or above is required, or use a memory card from the recommended list.
  • Recommended microSD Cards: Lexar 1066x 64GB U3 A2 V30 microSDXC, Lexar 1066x 128GB U3 A2 V30 microSDXC, Lexar 1066x 256GB U3 A2 V30 microSDXC, Lexar 1066x 512GB U3 A2 V30 microSDXC, Kingston Canvas GO! Plus 64GB U3 A2 V30 microSDXC, Kingston Canvas GO! Plus 128GB U3 A2 V30 microSDXC, Kingston Canvas GO! Plus 256GB U3 A2 V30 microSDXC, Kingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC

Intelligent Flight Battery

  • Capacity: 6741 mAh
  • Standard Voltage: 14.76 V
  • Max Charging Voltage: 17.0 V
  • Cell Type: Li-ion 4S
  • Energy: 99.5 Wh
  • Weight: 401 g
  • Recharging Temperature: 5°C to 40°C (41°F to 104°F)
  • Discharge Rate: 4C
  • Max Charging Power: 1.8C
  • Supports low-temperature charging: Not supported
  • Cycle Count: 200

Power Adapter (100W)

  • Input: 100-240 V (AC), 50-60 Hz, 2.5 A
  • Output: Max. 100 W (total). When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.
  • Rated Power: 100 W

Charging Hub

  • Input: USB-C: 5-20 V, max 5 A
  • Output: Battery Interface: 11.2 V to 17 V
  • Rated Power: 100 W
  • Recharging Type: 4 batteries charging in sequence. Support Standard Mode (100% SOC) and Standby Mode (90% SOC)
  • Compatible Battery: DJI Matrice 4E/T Series Intelligent Flight Battery
  • Charging Temperature: 5° to 40°C (41°F to 104°F)

DJI RC Plus 2 Enterprise

  • Video Transmission System: O4 Enterprise
  • Max Transmission Distance (unobstructed, free of interference): 25 km (FCC), 12 km (CE), 12 km (SRRC), 12 km (MIC). Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
  • Operating Band of Image Transmission: 2.4000-2.4835 GHz, 5.725 - 5.850 GHz, 5.1GHz (receive only). Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
  • Antenna: 2T4R, built-in multi-beam high-gain antenna
  • Video Transmission Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC), 5.1 GHz: <23 dBm (CE), 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
  • 4G Transmission: DJI Cellular Dongle 2
  • Wi-Fi Protocol: Wi-Fi Direct, Wireless Display, IEEE 802.11a/b/g/n/ac/ax, Support 2 × 2 MIMO Wi-Fi, Dual Band Simultaneous (DBS) with dual MAC, up to 1774.5 Mbps data rate (2 × 2 + 2 × 2 11ax DBS)
  • Wi-Fi Operating Band: 2.4000-2.4835 GHz, 5.150-5.250 GHz. 5.8 and 5.2GHz frequencies are prohibited in some countries. In some countries, the 5.2GHz frequency is only allowed for use in indoor.
  • Wi-Fi Transmitter Power (EIRP): 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC), 5.1 GHz: <23 dBm (FCC), 5.8 GHz <23 dBm (FCC/SRRC), <14 dBm (CE)
  • Bluetooth Protocol: Bluetooth 5.2
  • Bluetooth Operating Frequency: 2.400-2.4835 GHz
  • Bluetooth Transmitter Power (EIRP): <10 dBm
  • Screen Resolution: 1920 × 1200
  • Screen Size: 7.02 inches
  • Screen Frame Rate: 60 fps
  • Brightness: 1400 nits
  • Touchscreen Control: 10 Points Multi-touch
  • Built-in Battery: 2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8 Wh
  • External Battery: Optional, WB37 (4920 mAh @ 7.6 V) 37 Wh
  • Recharging Type: Supports PD fast charging, with a maximum specification of 20 V/3.25 A USB Type-C charger.
  • Storage Capacity: ROM 128 G + expandable storage via microSD card
  • Charging Time: 2 hrs for internal battery or internal and external battery. When remote controller is powered off and using a standard DJI charger.
  • Internal Battery Runtime: 3.8 hrs
  • External Battery Runtime: 3.2 hrs
  • Output Port: HDMI 1.4
  • Indicators: Status light & power light & permission light, three-color light, brightness can be adjusted according to ambient brightness.
  • Speaker: Supports buzzer
  • Audio: Array MIC
  • Operating Temperature: -20° to 50° C (-4°F to 122°F)
  • Storage Temperature: Within one month: -30° to 45° C (-22°F to 113°F), One to three months: -30° to 35° C (-22°F to 95°F), Three months to one year: -30° to 30° C (-22°F to 86°F)
  • Recharging Temperature: 5° to 40° C (41°F to 104°F)
  • Supported Aircraft Models: Support for Matrice 4T/4E

AL1 Spotlight

  • Weight: 99 g (including bracket), Approx. 91 g (excluding bracket)
  • Dimensions: 95×164×30 mm (L×W×H, including bracket), 79×164×28 mm (L×W×H, without bracket)
  • Max. Power: 32 W
  • Illuminance: 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters. The data was measured in a laboratory environment with the spotlight installed separately on the aircraft at an ambient temperature of 25°C.
  • Effective Illumination Angle: 23° (10% relative illumination)
  • Effective Illumination Area: 1,300 square meters @ 100 meters (10% relative illumination, Normal Mode), 2,200 square meters @ 100 meters (10% central illuminance, Wide FOV Mode)
  • Operating Mode: Supports always-on and strobe modes.
  • Gimbal Structural Design Range: Tilt: -140° to 50°
  • Controllable Range: Tilt: -90° to 35°
  • Max Control Speed (tilt): 120°/s
  • Gimbal Alignment Accuracy: ±0.1°
  • Operating Temperature: -20°C to 50°C (-4°F to 122°F)
  • Mounting: Quick-release hand-tightened screws

AS1 Speaker

  • Weight: 92.5 g (including bracket), Approx. 90 g (excluding bracket)
  • Dimensions: 73×70×52 mm (L×W×H, including bracket), 73×70×47 mm (L×W×H, without bracket)
  • Max. Power: 15 W
  • Max. Volume: At 1 meter, it can reach 114 decibels (114dB@1m). Data measured in a laboratory environment at 25℃. Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use.
  • Effective Broadcast Distance: 300 m. Data measured in a laboratory environment at 25℃. Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use.
  • Broadcast Mode: Real-time broadcasting (supports echo suppression*), recorded broadcasting, media import (supports simultaneous transmission and playback), text-to-speech*** Need to upgrade to the latest firmware. ** Currently only supports Chinese and English.
  • Operating Temperature: -20°C to 50°C (-4°F to 122°F)
  • Mounting: Quick-release hand-tightened screws

DJI Matrice 4T Universal Edition inclusions:

  • 1x DJI Matrice 4T
  • 1x DJI Matrice 4 Series Battery
  • 1x DJI RC Plus 2 Enterprise
  • 1x DJI 100W USB-C Power Adapter
  • 1x DJI Matrice 4 Series Charging Hub
  • 1x microSD Card
  • 1x DJI Matrice 4T Gimbal Protector
  • 1x DJI Cellular Dongle 2 Pry Bar
  • 3x DJI Matrice 4 Series Propellers
  • 1x 100W Power Adaptor AC Cable
  • 1x USB-C to USB-C Data Cable
  • 1x USB-A to USB-C Data Cable
  • 1x DJI Matrice 4 Series Storage Case
  • 1x DJI Matrice 4 Series Storage Case Shoulder Strap

Bundle Inclusions:

  • 1x DJI Matrice 4 Series Charging Hub (200W)
  • 2x DJI Matrice 4 Series Battery
  • 2x DJI Matrice 4 Series Propellers
  • 1x DJI Matrice 4 Series Propeller Guard
How many batteries are included in this bundle?

This configuration includes three DJI Matrice 4 Series Batteries total: one ships standard with the M4T Universal Edition kit, and two additional batteries are added here. Each battery delivers 99.5 Wh of energy and supports up to 49 minutes of flight time under optimal conditions. Three batteries let a single operator or a larger platform lineup rotate power without waiting on one unit to recharge.

Does this bundle include what I need to power the 200W Charging Hub?

No. The 200W Charging Hub requires the DJI 240W Portable Charger or DJI Power 1000 to operate, and neither is included in this configuration or the base M4T kit. The 100W USB-C Power Adapter that ships standard with the M4T is not compatible with the 200W hub. Plan to add a 240W charger or Power 1000 to complete your setup.

How many total propellers come with this configuration?

This bundle includes five Matrice 4 Series Propeller blades total: three ship with the standard M4T Universal Edition kit, and two additional propellers are added as part of this configuration. The extra propellers give your operation spares on hand for field replacement. All propellers use a quick-release mount for fast changeovers.

What coverage does the propeller guard provide?

The included Propeller Guard set uses a dual-arm design, with each arm covering two propellers on one side of the aircraft. Installed together, the two arms provide protection across all four blades. This setup supports safer flight in confined spaces, indoor inspections, or missions operating close to structures and obstacles.

How does the 200W hub handle charging three batteries?

The hub charges up to three DJI Matrice 4 Series Batteries in sequence, prioritizing whichever battery holds the highest remaining charge rather than charging all three at once. It supports Standard Mode for a full 100% charge and Ready-to-Fly Mode, which charges each battery to 90% for faster deployment. This keeps your platform moving between missions without long charging delays.
