DJI Zenmuse V1 Speaker

DJI Zenmuse V1 Speaker

$1,221.00
$1,221.00
Sale Sold out
SKU S-DJI-ZV1 MPN CP.EN.00000649.01 EAN 6937224110625
  • Powerful audio generates 129 decibels at one meter.
  • Messages reach ground targets up to 700 meters.
  • Supports MP3 AAC and WAV professional audio formats.
  • Text to speech converts typed text into audio.
  • AR projection helps pilots visualize current speaker orientation.
  • Safety mechanisms protect against overcurrent and thermal damage.
  • Synchronized control moves speaker with other gimbal payloads.
  • Operating temperature ranges from minus 4 to 122F.
  • Flexible mounting fits any standard DJI gimbal connector.
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Zenmuse V1: Professional 700m Long-Range Aerial Speaker

The Zenmuse V1 represents a significant advancement in unmanned aircraft communication technology for professional operators. This dedicated speaker payload allows for clear audio transmission over vast distances during high-stakes aerial operations. It is optimized for the Matrice 400 and Matrice 350 RTK platforms to deliver high-volume messaging. By offering multiple broadcast modes and intelligent audio processing, the V1 assists in search and rescue and industrial oversight. Professionals can now coordinate ground efforts and deliver critical information directly from the air with absolute clarity.

Zenmuse V1 highlights

  • Long distance projection: Reaches effective broadcast distances of 700 meters for wide coverage.
  • High decibel output: Produces 129 decibels of sound pressure for superior acoustic penetration.
  • Multi mode broadcasting: Features live voice text to speech and audio file playback options.
  • Intelligent gain control: Maintains consistent volume levels automatically when paired with Matrice 400.
  • Noise reduction technology: Directional pickup on the controller minimizes surrounding environmental interference.
  • Precision tilt gimbal: Single axis stabilization allows for targeted audio during complex flights.
  • Robust IP54 rating: Protects the internal speaker components from dust and water ingress.
  • Compact and lightweight: Weighs only 690 grams to maximize aircraft flight time potential.

Mission critical audio for professional drone deployments

The Zenmuse V1 empowers enterprise teams to reach ground targets with high clarity and significant volume. The system uses advanced digital processing to ensure 129 decibels are delivered without distortion. The Matrice 400 allows for simultaneous file transfer and playback, which is vital for rapidly evolving emergency scenarios. Pilots can manage the entire system through the DJI Pilot 2 interface, including real time broadcasting. The payload's thermal management ensures that the surface temperature remains safe for handling immediately after high intensity use in the field.

Platform and software integration

  • Matrice 400: Primary platform for high output 129 decibel communication missions.
  • Matrice 350 RTK: Supports 500 meter range and English or Chinese TTS.
  • Matrice 300 RTK: Compatible for long range communication when using DJI RC Plus.
  • DJI Pilot 2: Enables AR projection for visual speaker orientation and control.
  • DJI SkyPort: Industry standard connector for easy installation and multi payload synergy.
  • RC Plus: Optimized for directional voice capture during live field broadcasting operations.

Operational use cases

  • Search and rescue: Providing clear instructions to individuals in hard to reach areas.
  • Emergency signaling: Alerting large groups of people during natural disaster evacuations.
  • Public safety: Delivering safety announcements during high traffic or urban events.
  • Infrastructure security: Notifying unauthorized personnel to leave secure industrial or utility zones.
  • Coordination efforts: Directing ground teams during complex forest fire or rescue operations.
  • Environmental management: Using audio playback to manage wildlife near runways or sites.

Designed for enterprise operations

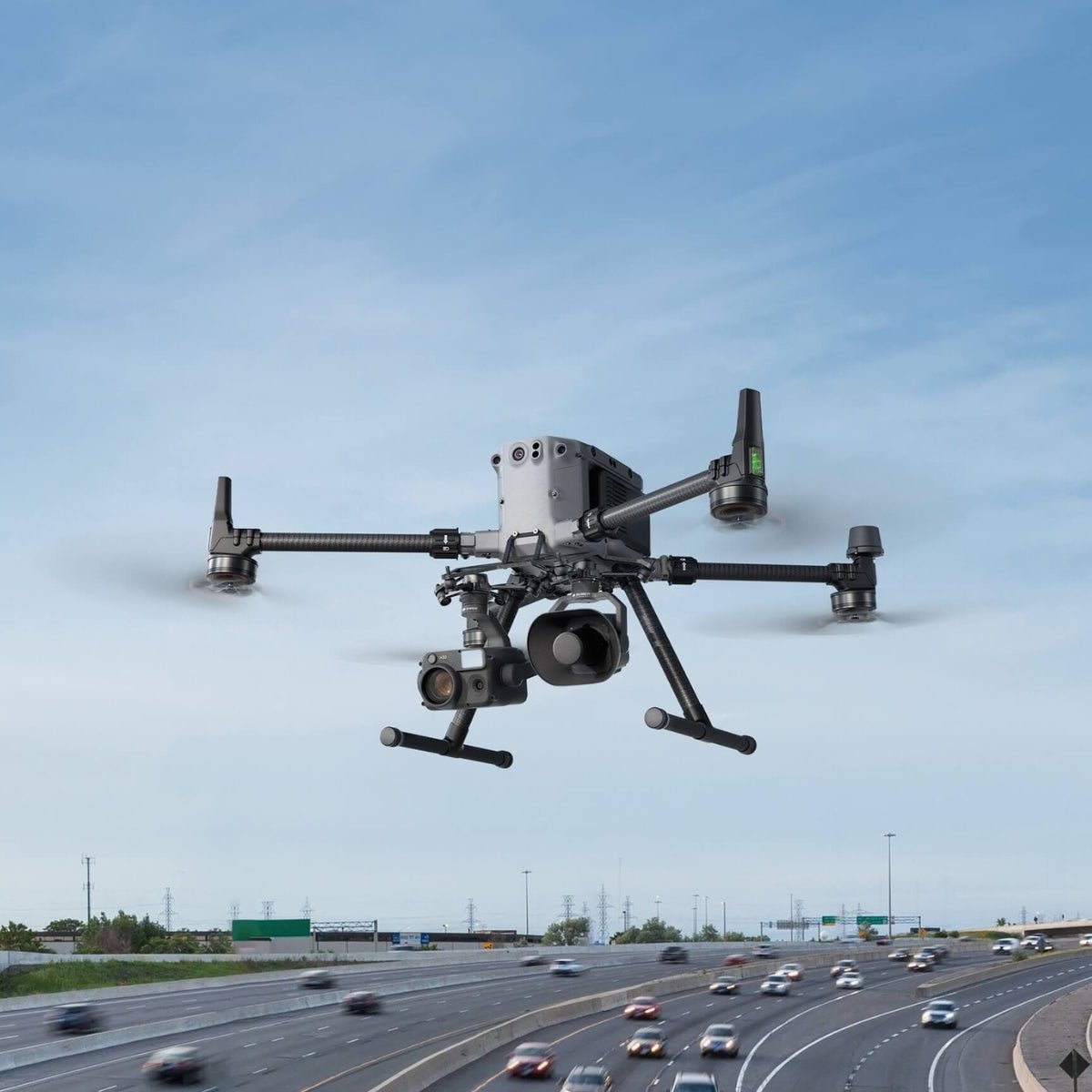

The Zenmuse V1 is engineered to serve as a key component of a multi-payload enterprise configuration. By mounting the V1 alongside a visual camera, the gimbal synchronization ensures that the audio is always directed where the lens is focused. This creates a unified sensor and communication suite that improves operational efficiency in the field. The payload is also compatible with Payload SDK, allowing for custom integrations that can automate audio responses based on external sensors. This level of interoperability makes the Zenmuse V1 a versatile tool for any organization requiring a professional aerial voice.

The Zenmuse V1 offers a robust solution for aerial professionals who need to reach ground personnel or the public with clear audio. Its high decibel output and advanced noise canceling technology ensure that communication is effective even in the most demanding conditions. By providing multiple broadcast options and seamless platform integration, the V1 consistently delivers value for professional missions.

Premier West Coast UAV dealer Dronefly has years of experience in the unmanned aircraft system (UAS) industry, making us ideally suited to become your exclusive drone partner. We provide a fully integrated UAV Solutions Lifecycle Partnership Program to support your communication needs from purchase to flight. Establish clear aerial communications for your professional fleet by securing the Zenmuse V1 at Dronefly.

Zenmuse V1 Specifications

  • Product name: Zenmuse V1
  • Weight: 690 ±10 g
  • Dimensions: 134 × 119 × 140 mm (L × W × H)
  • Rated power: 30 W
  • Supported aircraft: Matrice 400, Matrice 350 RTK, Matrice 300 RTK (requires DJI RC Plus)
  • Shell temperature: <50°C (122°F)
  • Ingress protection rating: IP54
  • Operating temperature: -20°C to 50°C (-4°F to 122°F)
  • Storage temperature: -20°C to 60°C (-4°F to 140°F)

Gimbal System

  • Stabilization: Single-axis (tilt)
  • Angular vibration range: ±0.01° (hover), ±0.02° (flight)
  • Mounting: Detachable DJI SKYPORT
  • Mechanical range: Tilt -125° to +25°
  • Controllable range (Matrice 400 downward ports): -120° to -5°
  • Controllable range (Matrice 400 third underside port): -60° to 0°
  • Controllable range (M300/M350 downward ports): -120° to -5°
  • Controllable range (M300/M350 upward port): -5° to +120°
  • Operation modes: Follow, Free, Re-center

Audio Performance

  • Impedance: 4 Ω
  • Nominal power: 25 W
  • Effective broadcast distance: 700 m (Matrice 400), 500 m (M300/M350)
  • Max sound pressure level: 129 dB @1 m (M400), 127 dB @1 m (M300/M350)
  • Effective bandwidth: 800 Hz – 8 kHz

Broadcast & Playback Functions

  • Recording and playback supported
  • Real-time broadcasting: Matrice 400 only
  • Text-to-speech languages (M400): Chinese, English, Spanish, Korean, Japanese, French
  • Text-to-speech languages (M300/M350): Chinese, English
  • Audio file formats: MP3, AAC, WAV
  • Simultaneous file transfer and playback supported on Matrice 400
  • Playback control: Record, stop, loop, volume adjustment
  • Custom controller button recording trigger supported
  • Gimbal synchronization with other payloads supported

Intelligent Features & Protection

  • Automatic gain control adjusts recording volume (Matrice 400)
  • Directional audio pickup with environmental noise reduction
  • Speaker temperature, overcurrent, and power protection
  • Directional broadcasting visualization via DJI Pilot 2 AR projection
  • 1x Zenmuse V1 Loudspeaker Payload
  • 1x Gimbal Port Protection Cap
  • 1x Storage Box
  • 1x Manuals
What is the difference in range between aircraft for the Zenmuse V1?

When mounted on the Matrice 400, the Zenmuse V1 can reach an effective broadcast distance of 700 meters. On the Matrice 350 RTK and Matrice 300 RTK, the effective range is 500 meters. The volume also varies slightly, with the Matrice 400 supporting 129 decibels while others support 127 decibels.

What audio formats are supported for playback?

The Zenmuse V1 supports the import and playback of local audio files in MP3, AAC, and WAV formats. This allows operators to pre-load specific messages or alerts for use during a mission. On the Matrice 400, the system also supports simultaneous file transfer and playback for improved efficiency.

Does the speaker require a special remote controller?

For the Matrice 300 RTK, the Zenmuse V1 requires the use of the DJI RC Plus remote controller. The Matrice 400 and Matrice 350 RTK are natively compatible with their standard enterprise controllers. The RC Plus is particularly useful for its directional audio pickup and environmental noise reduction features.

Can the gimbal move while the drone is in flight?

The Zenmuse V1 features a single-axis tilt gimbal that allows for a controllable range between -120 and -5 degrees in a downward configuration. This allows the pilot to aim the audio precisely at a target while the drone is hovering or moving. The system also supports gimbal synchronization with other payloads.

How is the volume adjusted during a mission?

Operators can manually adjust the volume through the DJI Pilot 2 application on their remote controller. When used with the Matrice 400, the system features intelligent volume adjustment that utilizes automatic gain control for live recordings. This helps maintain a consistent audio level regardless of the input source.
