Drone Dock Solar Security Trailer (Lite)

Drone Dock Solar Security Trailer (Lite): Rapid-Deploy Solar Surveillance Platform With 5G Remote Access and Local AI Recording

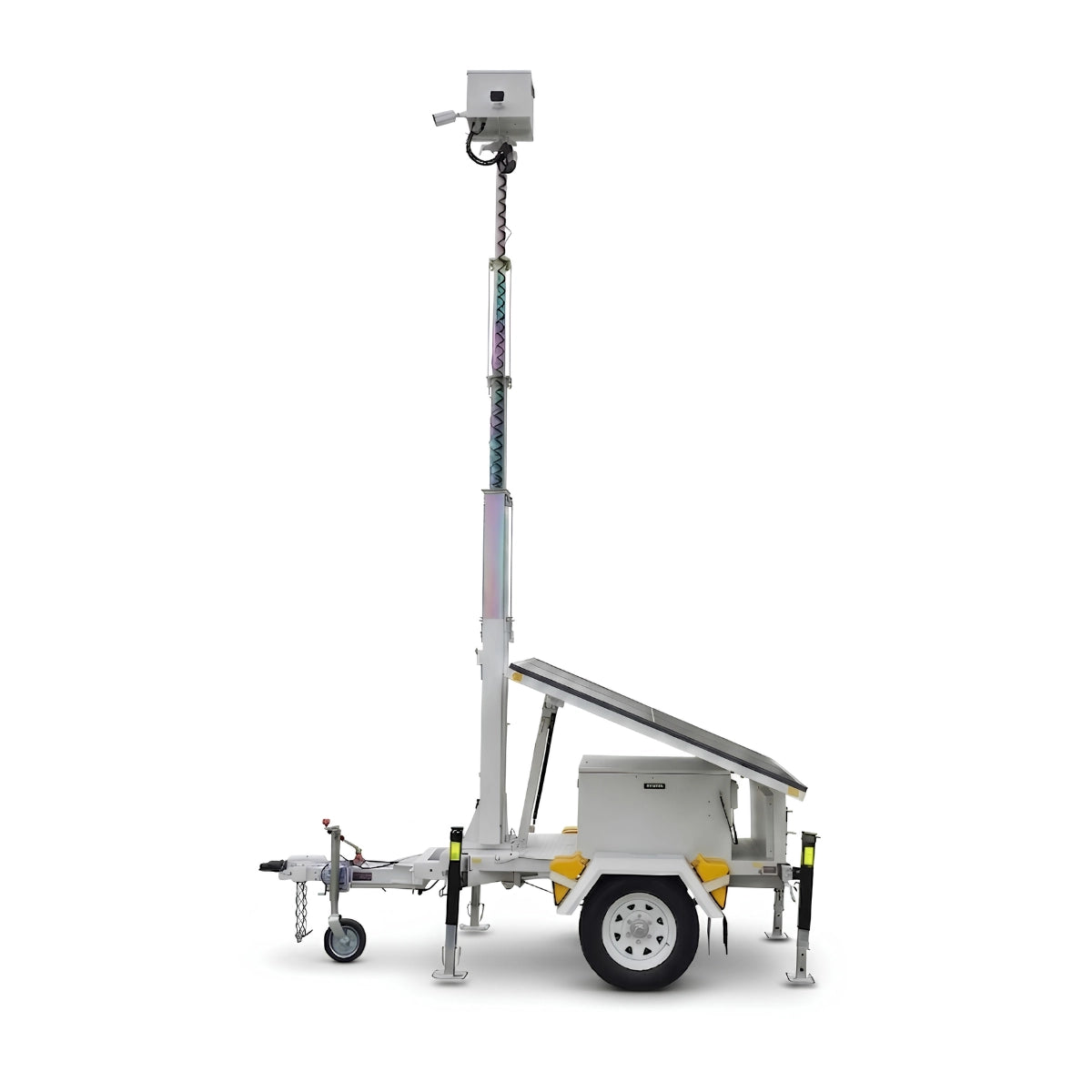

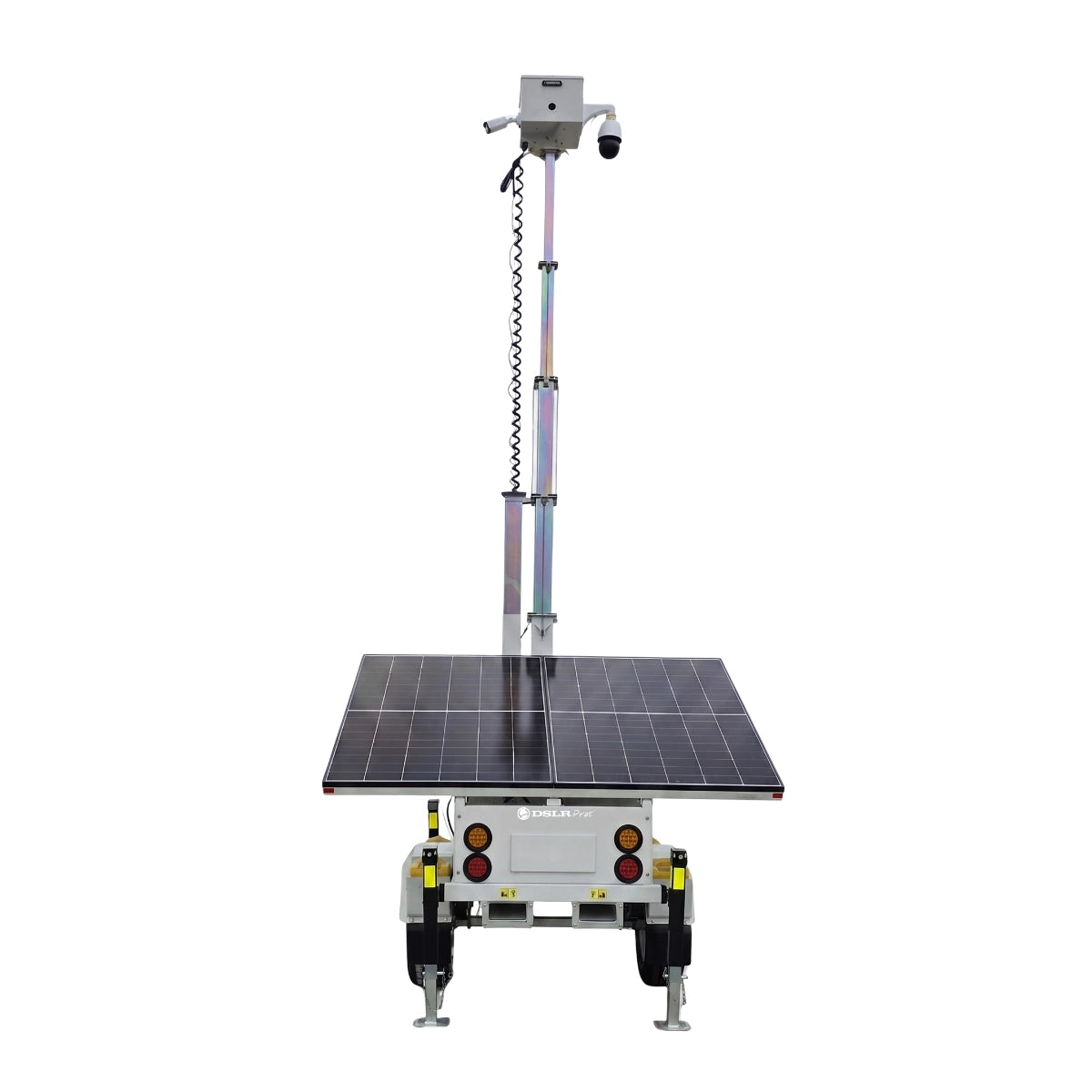

Dronefly's Drone Dock Solar Security Trailer (Lite) is a self-contained, solar-powered mobile surveillance platform built for organizations that need verifiable site coverage without committing to permanent camera infrastructure. The trailer ships with three Uniview 4MP Easystar fixed bullet cameras, a UNV IP Horn Speaker delivering up to 130 dBSPL of audio deterrence, and a 4-channel IQ PoE NVR — all mounted on a compact solar trailer with an integrated 5G modem for continuous remote access.

It is engineered for rapid deployment at construction sites, parking lots, laydown yards, temporary event perimeters, and any location where a fleet operator needs to put eyes and ears on a site fast and keep them running without on-site support.

Key Features and Benefits

• Three-camera layout: front, rear, and side fixed coverage monitors primary site approaches continuously.
• Solar platform: trailer operates on solar-assisted power with no grid connection or site infrastructure required.
• IP Horn Speaker: 130 dBSPL outdoor speaker delivers active audio deterrence and alarm-triggered announcements.
• Two-way audio: speaker and camera microphones enable live remote talk-down and real-time announcements.
• 4MP resolution: 2688 x 1520 imaging captures evidence-grade detail for incident review and documentation.
• Smart IR night vision: cameras maintain visibility up to 50 m (164 ft) through low-light and overnight conditions.
• ANR technology: automatic network replenishment protects recording continuity on intermittent 5G connections.
• 5G modem: remote live view and playback keeps fleet managers connected from any off-site location.
• PoE architecture: single-cable per device simplifies fleet maintenance and trailer redeployment logistics.
• Upgrade path: Lite platform integrates directly into the Drone Dock Security Trailer (Hawk) configuration.

What sets the Drone Dock Security Trailer (Lite) apart as a platform is its operational simplicity. Every component in the system is connected through PoE architecture, meaning a single cable per device handles both power and data. The onboard NVR records continuously to local storage, ANR technology protects footage integrity during cellular interruptions, and the IP Horn Speaker integrates directly with the NVR to deliver alarm-triggered audio broadcasts automatically when detection events fire.

For fleet integrators managing multiple rotating deployments, the standardized hardware stack and towable trailer format make redeployment, maintenance, and scaling straightforward across any number of sites.

The trailer is also the entry point in a scalable platform architecture. Organizations that start with the Lite can move up to the Hawk configuration as site requirements grow, carrying the trailer platform and core hardware forward without a full system replacement.

Every unit is fully configurable. Cameras, NVR, and accessories can be upgraded or added based on site requirements and operational scope. Dronefly customers receive a fully integrated UAV Solutions Lifecycle Partnership Program — from system configuration and commissioning to ongoing deployment support.

Deployable Audio and Visual Coverage From Day One

The Drone Dock Security Trailer (Lite) is designed around the operational reality that most temporary or semi-permanent deployments need a system that works immediately and runs without ongoing intervention. The solar power system eliminates site coordination for electrical access. The PoE NVR and camera stack are plug-and-play from the trailer frame. The IP Horn Speaker connects to the NVR and begins responding to detection events automatically once configured.

Remote access through the 5G modem means a security manager or fleet operator can monitor any unit in a deployment from a single off-site location. For organizations running multiple trailers across rotating sites, the Lite offers a consistent, low-maintenance baseline that holds up across extended field deployments without requiring on-site staffing.

Compatibility and System Integration

• NVR pairing: UNV NVR301-04B-P4-IQ records all three camera feeds via plug-and-play PoE connectivity.
• IP Horn Speaker: UNV IPS302030-S integrates with NVR for alarm-triggered audio and video-audio linkage.
• Speaker triggers: NVR activates audio broadcasts via Smart Intrusion Prevention and Ultra Motion Detection events.
• Camera standard: ONVIF Profile S, G, and T support third-party VMS and centralized fleet management integration.
• Compression support: Ultra 265, H.265, H.264, and MJPEG formats support most recording and bandwidth configurations.
• Remote access: HTTP, HTTPS, RTSP, P2P, and SNMP protocols enable flexible remote monitoring connectivity.
• Display output: simultaneous HDMI (up to 4K) and VGA output supports local monitoring station configurations.
• Upgrade path: Lite hardware and trailer platform integrate directly into the Drone Dock Security Trailer (Hawk).

Applications and Use Cases

• Construction site monitoring: three-direction fixed coverage documents activity and deters unauthorized site access.
• Parking lot and laydown yard security: continuous recording and 5G remote access support unmanned after-hours coverage.
• Temporary event security: rapid trailer deployment covers event perimeters without permanent camera installation.
• Rental fleet programs: standardized PoE hardware and towable platform simplify multi-unit fleet deployment and maintenance.
• Basic perimeter monitoring: consistent fixed coverage and local NVR recording satisfy foundational site security requirements.
• Audio deterrence deployments: IP horn speaker enables remote talk-down and alarm-triggered announcements at unstaffed sites.

The Drone Dock Security Trailer (Lite) solves the core challenge of temporary site surveillance: getting reliable, self-sustaining camera and audio coverage deployed quickly, without overbuilding the system or tying it to fixed infrastructure. Its platform architecture is built for organizations that run multiple sites simultaneously and need a surveillance unit that can be commissioned, redeployed, and managed remotely with minimal friction.

Every unit is fully configurable to match your specific site and fleet requirements. Live SOC monitoring for active deterrence is available upon request. For configuration details including solar capacity, battery runtime, mast specifications, and custom build options, contact the Dronefly team.

Dronefly is a premier West Coast UAV dealer with years of experience helping organizations build scalable, field-ready security solutions. Whether you are deploying a single trailer or building out a multi-site fleet program, our team will configure, commission, and support your Drone Dock Security Trailer (Lite) from day one.

Call Steve Jelesijevic at  310-904-9082 today to start getting your new Drone Dock Solar Security Trailer system deployed.
