Freefly Astro Max Aircraft (NDAA/Blue)

Freefly Astro Max Aircraft (NDAA/Blue)

$28,995.00
$28,995.00
Sale Sold out
SKU S-FF-ASTRO-MAX-BLUE MPN 950-00187
  • Blue UAS-approved enterprise drone for secure operations
  • Designed and assembled in the USA with NDAA-compliant components
  • 3 kg maximum payload supports professional mapping and inspection sensors
  • Up to 43 minutes flight time with no payload installed
  • 7010 motors and 21-inch propellers deliver power and stability
  • Dual SL8 Air batteries ensure longer missions and system redundancy
  • Foldable carbon-fiber frame simplifies field transport and storage
  • Smart Dovetail mount enables fast sensor changeovers without tools
  • RTK-ready GPS provides centimeter-level accuracy for survey missions
  • Pilot Pro controller supports secure, precise flight management
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Freefly Astro Max Aircraft (NDAA/Blue): U.S.-assembled enterprise drone for secure, compliant operations

The Freefly Astro Max (NDAA/Blue) is an enterprise-grade aerial platform designed and assembled in the United States using NDAA-compliant components. Approved under the Department of Defense Blue UAS framework, it meets the highest standards of security and supply-chain integrity. With up to 43 minutes of flight time and a 3 kg payload capacity, the Astro Max (NDAA/Blue) delivers professional-grade performance for government, public safety, and industrial missions requiring data protection and compliance.

Secure performance and adaptable design

Powered by 7010 motors and 21-inch propellers, the Astro Max (NDAA/Blue) offers precise control, powerful lift, and efficient operation. The carbon-fiber foldable arms and Smart Dovetail quick-mount system allow for rapid deployment and flexible sensor integration. Its dual SL8 Air battery setup and RTK-ready GPS enable accurate, long-duration missions, while the open architecture supports a wide range of professional payloads including LiDAR, mapping, and thermal systems.

Built for compliance and mission assurance

The Astro Max (NDAA/Blue) complies fully with NDAA sourcing restrictions and Blue UAS cybersecurity standards. Its secure flight control hardware and U.S. assembly ensure operational integrity and trust for sensitive missions. Designed for both enterprise and public-sector applications, it provides reliable, precise flight capability backed by verified hardware and firmware transparency.

Key Features and Benefits

  • NDAA/Blue UAS-approved: Verified under the DoD Blue UAS program
  • Designed and assembled in the USA: NDAA-compliant sourcing and production
  • 3 kg maximum payload: Supports LiDAR, thermal, and mapping sensors
  • 43 minutes flight time: Long endurance with no payload
  • 7010 motors + 21-inch propellers: Delivers stability and efficiency
  • Carbon-fiber folding frame: Portable and durable for field operations
  • Dual SL8 Air batteries: Extends mission time and provides redundancy
  • Smart Dovetail interface: Enables quick sensor swapping
  • RTK-ready GPS: Centimeter-level positioning accuracy
  • Pilot Pro controller: Provides secure telemetry and mission control

Applications and Use Cases

  • Government and defense missions: Secure Blue UAS-approved operations
  • Public safety and emergency response: Rapid aerial deployment for incident awareness
  • Infrastructure and utility inspection: Reliable data collection for critical assets
  • Mapping and surveying: RTK-enabled precision geospatial work
  • Construction progress documentation: Accurate and repeatable aerial imaging
  • LiDAR operations: 3D terrain modeling and volumetric analysis
  • Research and environmental monitoring: Secure, compliant data acquisition
  • Industrial inspection: High-resolution imaging with compliant hardware

The Freefly Astro Max (NDAA/Blue) is the trusted U.S.-assembled platform for organizations requiring compliance, data security, and mission-ready performance. Built under the Blue UAS framework, it combines Freefly's proven flight technology with certified NDAA-compliant components.

Dronefly provides professional system configuration, integration, and ongoing technical support for the Astro Max (NDAA/Blue). Order today to equip your organization with a secure and compliant aerial platform.

Astro Max

  • Up to 43 minutes flight time
  • 31 minutes with LR1 Payload
  • 20 minutes with max payload (3kg)
  • 3kg max payload
  • Booms fold up to ½ the diameter
  • Pre-installed Astro Isolator for quick-release powered payload attachment
  • Alternate payload attachments sold separately:

    Integrator Vibration Isolator (non-electronic)
    Freefly Smart Dovetail Kit (hard mount)
    Astro Max Isolator (50A & 70A options for payloads over 1.5 KG / 3.3 lbs)

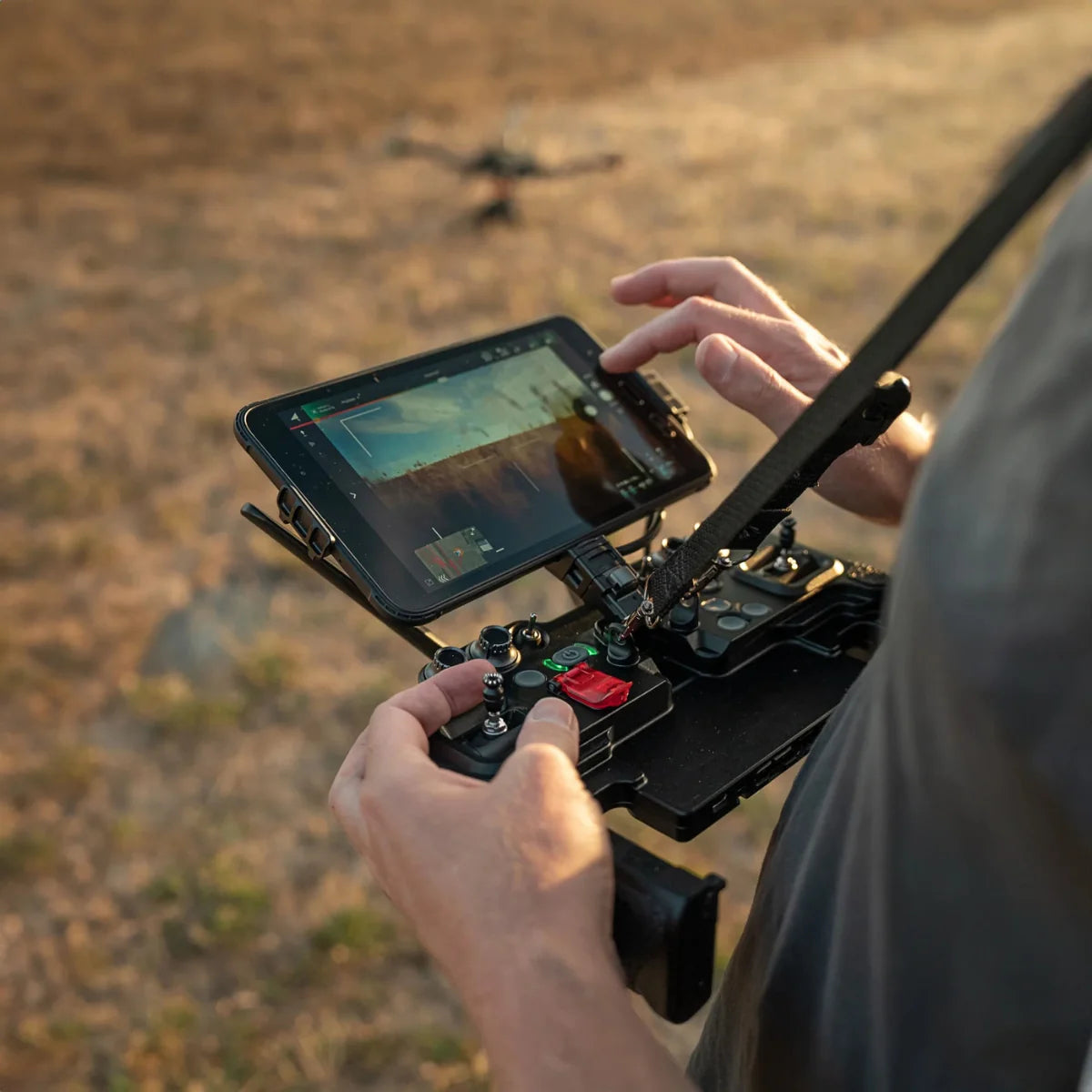

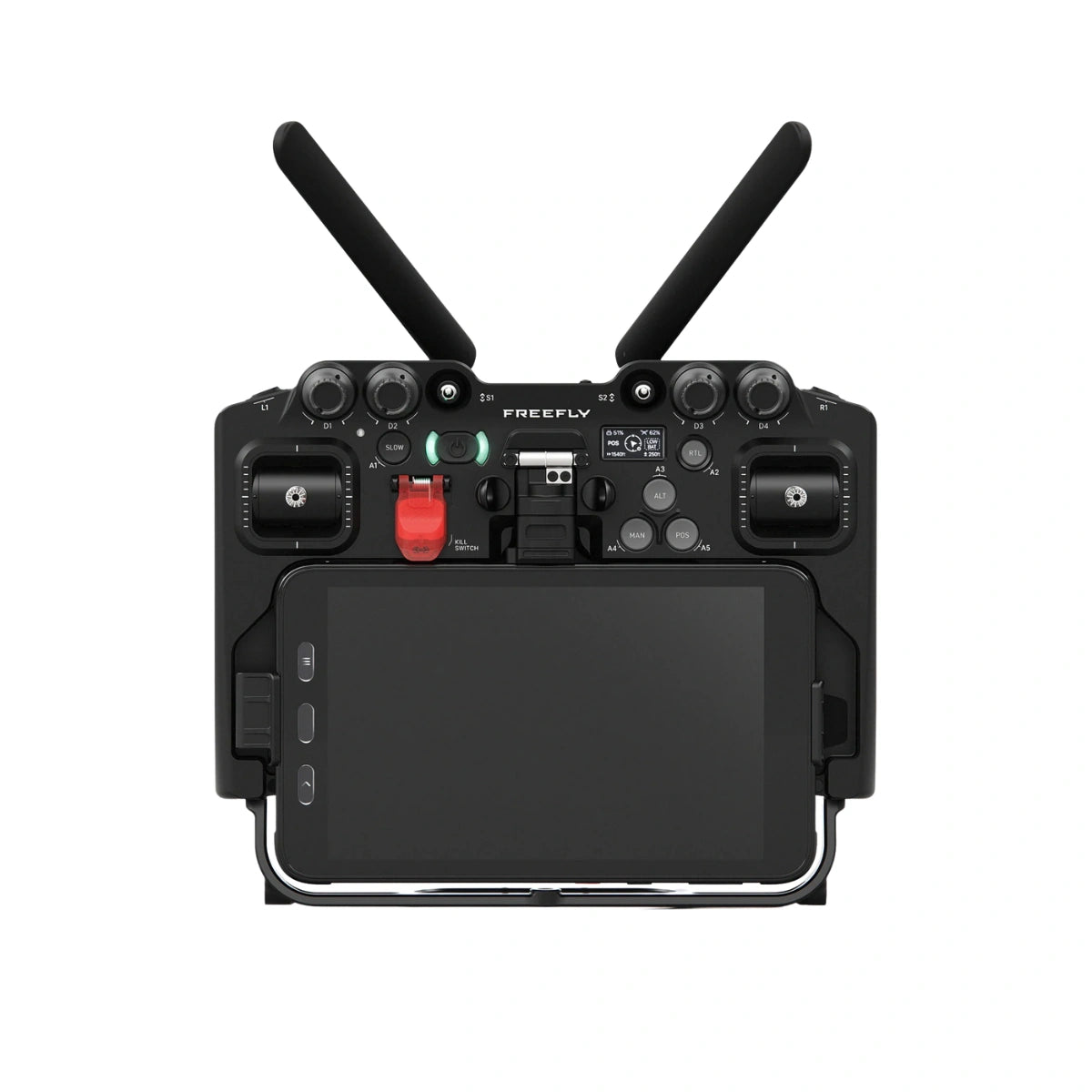

Pilot Pro Controller

  • High resolution rockers for precise camera / gimbal control
  • Configured with robust long-range radio hardware:

    Herelink 1.1 Radio (2.4 GHz)

  • Internal battery with external power inputs to support hot-swapping for maximum uptime
  • Emergency kill-switch
  • Discreet physical buttons for all key user actions
  • Includes custom configured, pre-installed 8" Samsung Galaxy Tablet Active5 tablet
  • Realtime drone and gimbal speed limits
  • Custom padded neck strap

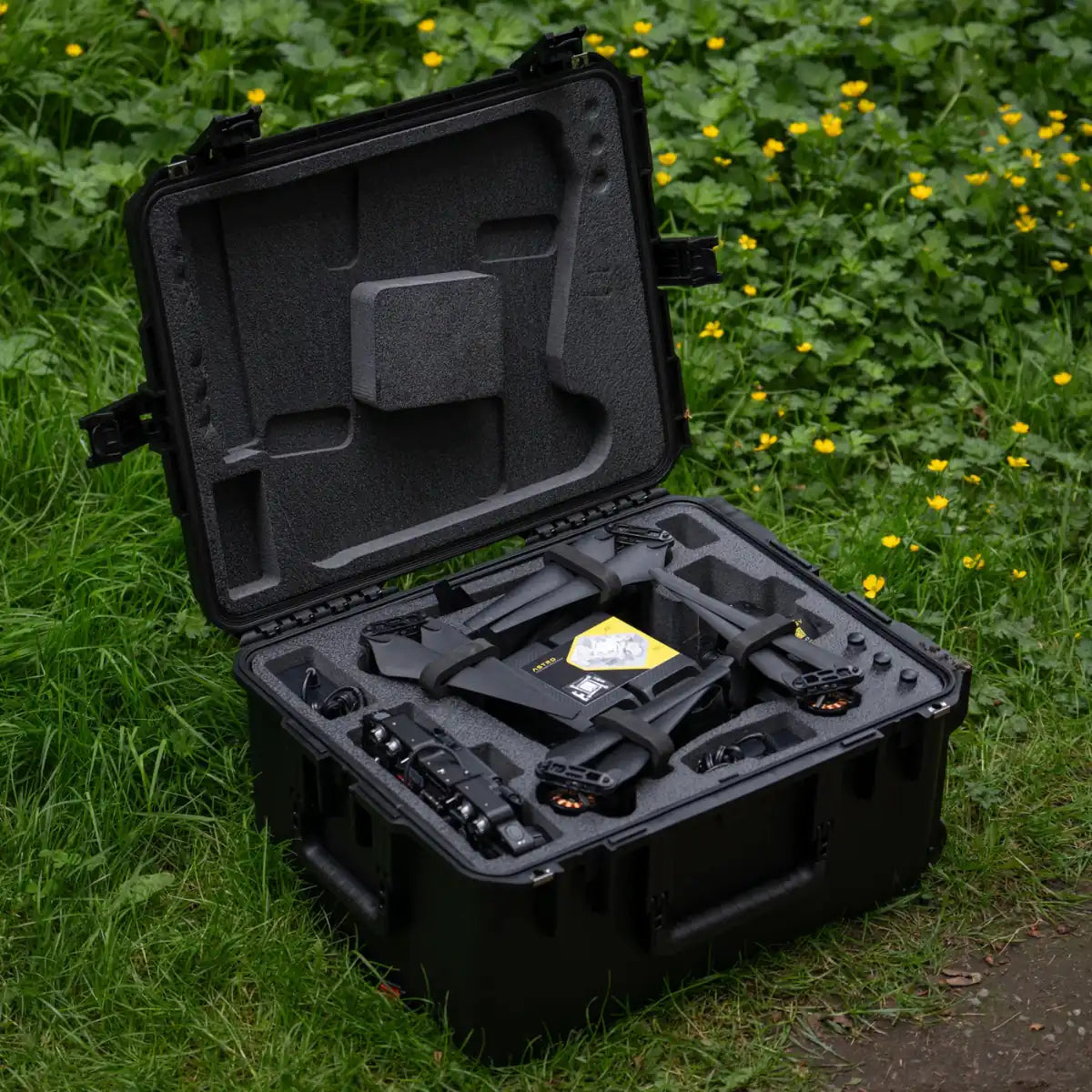

Astro Compact Travel Case

  • Holds everything needed to fly Astro
  • Astro with 2 SL8 batteries* installed and legs folded
  • Pilot Pro radio controller
  • LR1 Payload (sold separately)
  • Pair of SL8 Chargers
  • Set of spare props (1 each CW & CCW)
  • Basic tools
  • Custom cut foam, tested to protect against drops from 1 meter
  • Submersible and dust tight (MIL-STD 810G)
  • Airline checkable
  • SKB Rolling Case - 3i-2217-10

Case Dimensions

  • 24.52" x 19.5" x 12.22" / 62.28 x 49.53 x 31.04 cm

Weight of Astro in Case

  • As shipped/checked (no SL8s): 36.16 lbs / 16.40 kg
  • Full kit (with two SL8s*): 40.66 lbs / 18.44 kg

Batteries

  • SL8-Air Batteries*
  • Astro uses two SL8-Air batteries per flight
  • Voltage: 21.6 V (6S)
  • Capacity: 7.3 Ah, 157 Wh
  • Weight: 2.25 lbs
  • Chemistry: Lithium-Ion
  • Auxiliary output: USB-C Power Delivery

Chargers

  • SL8 Fast Charger*
  • One charger charges one Freefly SL8-Air battery at a time
  • Approximate charge time for one SL8-Air battery, from 0%: 90 mins
  • Input: 100 / 240 VAC
  • Output: 200 Watts
  • Supplied with North America power cable (NEMA 1-15 ungrounded, Type A)
  • Power cable is replaceable (IEC320 connector)
  • Designed and Assembled in USA

*Batteries and chargers needed for flight not included, sold separately.

  • 1x Astro Max (with folding landing gear, high efficiency props, and Astro Isolator)*
  • 1x Astro compact travel case
  • 1x each hex driver (1.5 mm, 2 mm, 2.5 mm)
  • 4x Proptectors
  • Spare parts:
  • 1x Extra Proptector
  • 4x Spare isolator balls
  • 2x Rubber hole grommet
  • 1x Pilot Pro controller
  • 1x Samsung Active Tab (pre-configured and installed into controller)
  • 1x Herelink 1.1 RF (2.4 GHz)
  • 1x Custom padded neck strap
What is the Freefly Astro Max (NDAA/Blue)?

It is a U.S.-built, Blue UAS-approved version of the Astro Max industrial drone for secure and compliant operations.

Is the Astro Max (NDAA/Blue) listed under the Blue UAS Framework?

Yes. It is officially approved by the U.S. Department of Defense as a Blue UAS platform.

What is the maximum payload capacity of the Astro Max (NDAA/Blue)?

It can carry payloads up to 3 kg (6.6 lb).

How long can the Astro Max (NDAA/Blue) fly?

It offers up to 43 minutes of flight time with no payload.

Where is the Astro Max (NDAA/Blue) manufactured?

It is designed and assembled in the United States using NDAA-compliant components.

What payloads are compatible with the Astro Max (NDAA/Blue)?

It supports professional payloads such as LiDAR, thermal imagers, and mapping sensors via the Smart Dovetail mount.
