GDU S220 Pro 1K Version Public Safety Bundle

GDU S220 Pro 1K Version Public Safety Bundle

$10,850.00
$10,850.00
Sale Sold out
  • Integrated quad sensor system captures visual thermal and distance data
  • 1280 by 1024 thermal imaging enables precise heat detection
  • 10x optical and 160x hybrid zoom enable long-range observation
  • Laser rangefinder measures targets accurately up to 1500 meters
  • Up to 41 minutes flight time supports extended operations
  • RTK positioning delivers centimeter-level accuracy across missions
  • AI processing enables automated recognition and tracking workflows
  • Includes loudspeaker and spotlight for real-time response capability
  • Omnidirectional sensing improves navigation safety in complex environments
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Integrated Aerial System for Multi-Layer Situational Awareness and Response

The GDU S220 Pro 1K Version Public Safety Bundle is a fully configured aerial system designed to deliver visual, thermal, and positional data within a single operational platform.

By combining a wide-angle camera, 48MP zoom camera, 1280 × 1024 thermal sensor, and laser rangefinder, it enables simultaneous data acquisition across multiple sensing layers without requiring additional payload swaps.

This bundle is structured for deployment at the system level, including RTK positioning, loudspeaker, spotlight, and extended battery support.

With up to 41 minutes of flight time, 15 km (9.32 miles) transmission range, and integrated AI processing up to 100T, it supports coordinated operations where real-time awareness, communication, and decision-making must be maintained.

Key Features and Benefits

  • Integrated quad sensor system: Combines visual, thermal, and ranging capabilities.
  • High-resolution thermal imaging: 1280 × 1024 sensor enables detailed heat analysis.
  • Long-range zoom capability: 10× optical and 160× hybrid zoom system.
  • Laser rangefinding system: Measures distances from 10 to 1500 meters accurately.
  • Extended endurance platform: Up to 41 minutes of continuous flight operation.
  • High-precision RTK positioning: Enables centimeter-level geospatial accuracy across missions.
  • AI-enabled processing system: 21T onboard and up to 100T edge computing.
  • Public safety payload integration: Includes loudspeaker and spotlight for response operations.
  • Omnidirectional sensing system: Enhances navigation safety in complex environments.

Enabling Coordinated Multi-Sensor Operations Across Teams

For organizations managing coordinated field operations, the ability to align visual, thermal, and positional data into a single workflow is critical.

The S220 Pro platform enables this by delivering synchronized multi-sensor outputs while maintaining long-range connectivity up to 15 km (9.32 miles).

Its combined imaging stack and laser ranging provide both identification and measurement capabilities, while onboard and edge AI processing support automated recognition and tracking.

This allows teams to reduce manual workload, standardize data collection, and maintain operational continuity across multiple deployment scenarios.

Compatibility and System Integration

  • Integrated payload architecture: Combines cameras, thermal sensor, and rangefinder in one system.
  • RTK module integration: Provides high-precision positioning for mapping and response workflows.
  • PSDK expansion interface: Supports additional payloads including AI modules and accessories.
  • GDU Flight II compatibility: Enables mission planning and autonomous flight execution.
  • UVER platform integration: Supports cloud-based data synchronization and fleet management.
  • Multi-network communication: Supports Wi-Fi, Bluetooth, and network-based connectivity workflows.
  • PYK-200 controller system: Provides centralized aircraft and payload control interface.

Applications and Use Cases

  • Coordinated search operations: Deploy thermal and zoom imaging across large search areas.
  • Law enforcement operations: Monitor and track targets using aerial multi-sensor data.
  • Emergency response coordination: Provide real-time situational awareness across teams.
  • Infrastructure and hazard assessment: Identify risks using thermal and visual data layers.
  • Disaster management operations: Evaluate affected zones and support response planning.
  • Night and low-visibility operations: Combine thermal imaging and spotlight illumination.

The GDU S220 Pro 1K Public Safety Bundle provides a structured aerial system for organizations that require consistent, multi-layer situational awareness.

Its integrated sensors, AI processing, and bundled response tools support scalable deployment across diverse mission types.

Dronefly works with agencies and organizations to design complete UAV systems that align with operational requirements. Our team can help integrate the S220 Pro into your workflows and expand its capabilities as your mission needs evolve.

Aircraft

  • Maximum flight time: 41 minutes
  • Takeoff weight: 4.51 lbs (2.05 kg)
  • Max ascent speed: 8 m/s
  • Max descent speed: 6 m/s
  • Max wind speed resistance: 12 m/s
  • Max takeoff altitude: 6 km
  • Global navigation satellite system: Remote controller supports GPS + BeiDou
  • IP rating: IP43

Remote Controller

  • Model: PYK-200 remote controller
  • Operating temperature: -4°F to 122°F (-20°C to 50°C)
  • Max operating time (built-in battery): 1.5 hours (0–90%), 2.0 hours (0–100%)
  • Max operating time (external battery, optional): up to 3 hours (0–100%)

Camera System

  • Wide-angle video resolution: 7264 × 4086 @15 fps; 3840 × 2160 @30/60 fps; 1920 × 1080 @30 fps
  • Telephoto video resolution: 7264 × 4086 @15 fps; 3840 × 2160 @30/60 fps; 1920 × 1080 @30 fps
  • Thermal resolution: 1280 × 1024 @30 fps
  • Laser rangefinder: 10–1500 m
  • Remote controller video support: 4K/60 fps H.264 and H.265

Image Sensor

  • Wide-angle: 1/1.49" CMOS
  • Telephoto: 1/2" CMOS, 48 MP

Lens

  • Integrated wide-angle lens
  • Telephoto lens
  • Quad-sensor system with infrared lens and laser rangefinder

ISO Range

  • Wide-angle (video/manual): 100–25600
  • Wide-angle (photo/auto): 100–6400
  • Telephoto (video/auto): 100–11200
  • Telephoto (manual): 100–25600
  • Telephoto (photo/auto): 100–11200

Shutter Speed

  • Telephoto: 8 s to 1/8000 s

Media Formats

  • Photo format: JPEG
  • Video format: MP4

Gimbal

  • Stabilization: 3-axis mechanical gimbal (pitch, roll, pan)

Battery

  • Aircraft battery capacity: 8000 mAh
  • Remote controller battery (internal): 7000 mAh @ 7.2 V
  • Remote controller battery (external, optional): 7000 mAh @ 7.2 V
  • Nominal voltage: 14.76 V
  • Battery type: Lithium-ion
  • Battery quantity: 1

Dimensions

  • Drone (folded): 75 × 272 × 148 mm (2.95 × 10.70 × 5.82 in)
  • Drone (unfolded): 613 × 699 × 160 mm (24.13 × 27.51 × 6.29 in)
  • Remote controller: 262 × 139 × 103 mm (10.31 × 5.47 × 4.05 in)

Weight

  • Drone: 4.1 lbs (1.86 kg)
  • Remote controller (without external battery): 2.31 lbs (1.05 kg)
  • Remote controller (with external battery): 2.86 lbs (1.3 kg)

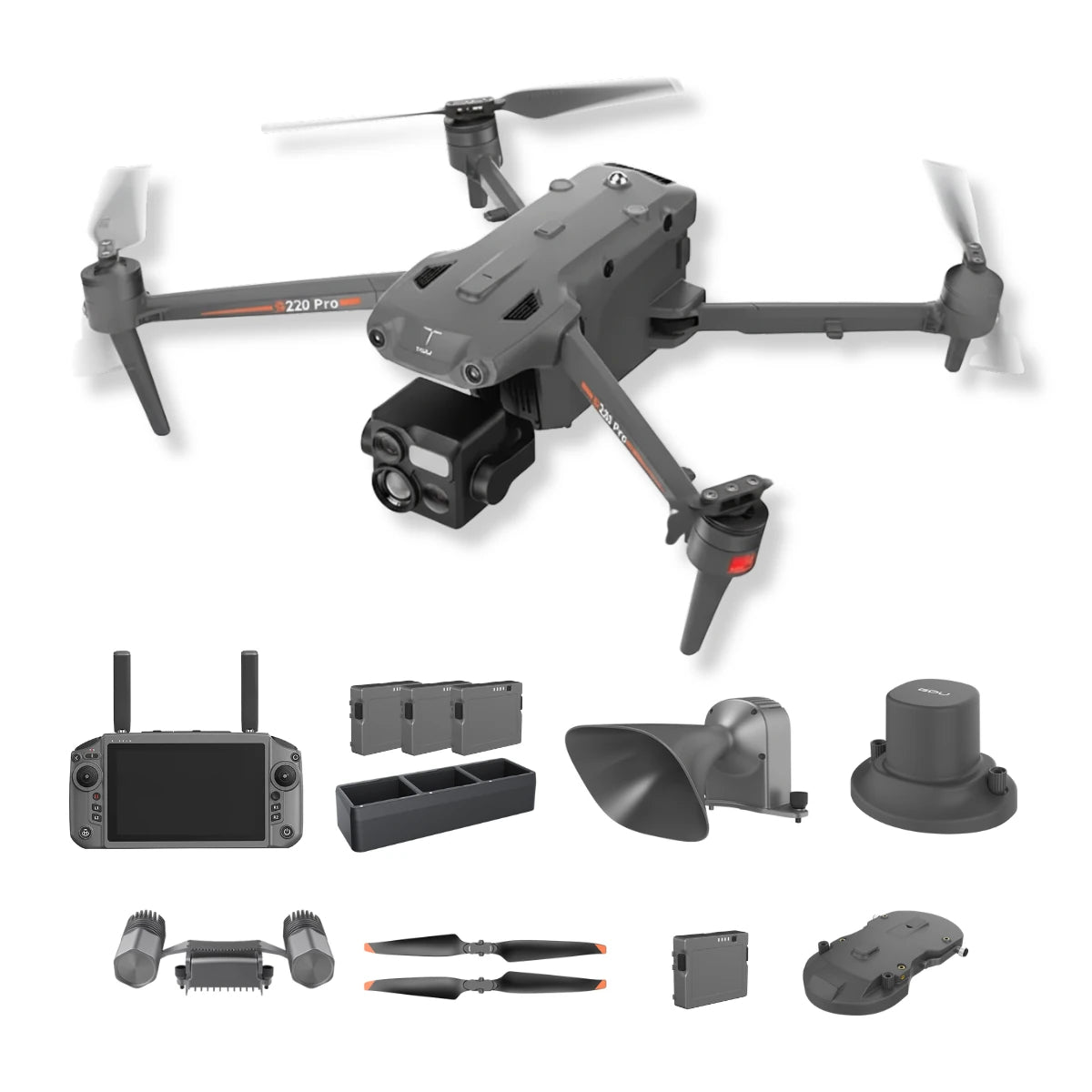

Core System:

  • 1x S220 Pro Series 1K Thermal Camera Drone
  • 1x PYK-200 Remote Controller
  • 1x Power Adapter
  • 1x Single-Cell Charging Hub
  • 1x Spare Aircraft Propeller (Pair)
  • 1x Charging Cable
  • 1x Protective Case
  • 1x Screwdriver

Public Safety Bundle Items:

  • 1x GDU S200 3 Batteries + 3-Way Hub
  • 1x GDU S200 Loudspeaker
  • 1x GDU S200 Spotlight
  • 1x GDU S220 Propellers (1A1B Set)
  • 1x GDU S200 Remote Controller Battery
  • 1x GDU S200 1-to-2 Splitter Box
  • 1x GDU S200 RTK Module
  • 1x MicroSD Card
  • 1x User Manual
  • 1x GDU-Tech 1 Year Limited Warranty
What makes the GDU S220 Pro 1K Version suitable for coordinated operations?

The system combines visual, thermal, and ranging sensors into one platform, allowing teams to access multiple data types simultaneously. This reduces the need for separate systems or repeated flights. It enables more efficient coordination across personnel during operations.

How does the GDU S220 Pro 1K Version support real-time decision-making?

The drone provides live visual and thermal data along with distance measurements through the laser rangefinder. Combined with AI-assisted recognition and long-range transmission, teams can assess situations quickly. This helps improve response time and operational awareness.

What is the operational range of the GDU S220 Pro 1K?

The system supports a transmission range of up to 15 km (9.32 miles) under ideal conditions. It also includes zoom and thermal capabilities that allow operators to observe targets from a distance. This makes it suitable for large-area coverage.

Does the GDU S220 Pro 1K Version Public Safety Bundle include positioning capabilities?

Yes, the bundle includes an RTK module that provides centimeter-level positioning accuracy. This allows for precise navigation and location tracking. It is useful for mapping and mission-critical operations.

What accessories are included in the GDU S220 Pro 1K Version Public Safety Bundle?

The bundle includes multiple batteries, a charging hub, loudspeaker, spotlight, RTK module, and supporting accessories. These components allow the system to be deployed immediately.
