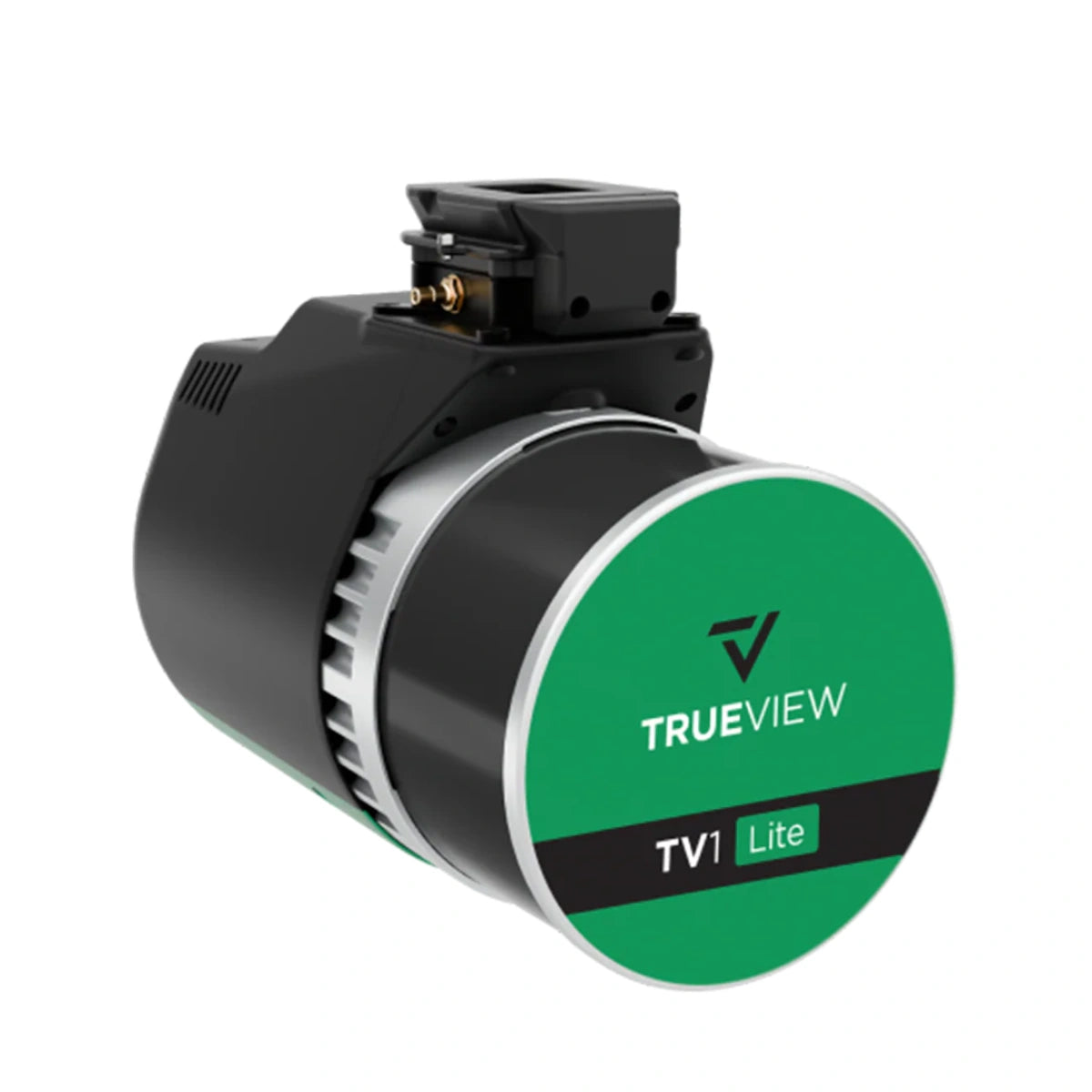

GeoCue TrueView 1 Lite LiDAR Sensor

GeoCue TrueView 1 Lite LiDAR Sensor

$20,890.00
$20,890.00
Sale Sold out
SKU S-GEO-TV1L MPN PLD1001836A00T
  • Dual-return Hesai XT-32 captures ground data through vegetation
  • 640,000 points-per-second enables dense point clouds
  • Integrated 5MP camera delivers distortion-free colorization
  • TrueNav GNSS/IMU delivers survey-grade trajectory data
  • 1.4 kg payload preserves flight endurance
  • Includes one year LP360 Drone software access
  • Designed and assembled in Alabama, USA
  • Two days in-person training included
  • Rugged hardcase protects sensor during deployment
  • Compatible with Freefly and Inspired Flight platforms
  • Compatible with Matrice 300/350/400; mounting kit sold separately
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

GeoCue TrueView 1 Lite: Professional entry-level LiDAR payload

The GeoCue TrueView 1 Lite is the premier choice for organizations seeking a budget-friendly path to survey-grade LiDAR capabilities.

This lightweight, 1.4 kg payload combines the reliable Hesai XT-32 dual-return laser scanner with a high-performance FLIR imaging system to capture dense 3D point clouds and colorized datasets.

Designed and assembled in the USA, the TrueView 1 Lite focuses on simplicity and efficiency, providing all the essential tools for professional mapping without unnecessary costs.

With the integrated TrueNav positioning system and included LP360 Drone software, this sensor offers a complete, field-ready solution for surveyors, researchers, and environmental professionals.

TrueView 1 Lite features at a glance

  • Point cloud density: Delivers 640,000 points per second for high-resolution 3D data
  • Vegetation penetration: Hesai XT-32 dual-return scanner captures ground data under cover
  • Precise colorization: 5MP global shutter camera with 90-degree FOV for clear imagery
  • Integrated navigation: TrueNav GNSS/IMU system provides dependable trajectory data
  • Lightweight build: Payload weighs only 1.4 kg to maintain aircraft agility
  • Complete workflow: Bundled with LP360 Drone software for seamless data processing
  • American manufacturing: Proudly designed and assembled in Huntsville, Alabama, USA
  • Training included: Features two days of expert in-person training for new operators
  • Reliable support: One year of hardware and software maintenance included with purchase

Professional 3D data acquisition and simplified processing

The TrueView 1 Lite provides an uncompromising approach to budget LiDAR by utilizing the same high-tier processing algorithms found in more expensive GeoCue systems. The Hesai XT-32 scanner allows for the collection of detailed structural data, while the 5MP global shutter camera provides distortion-free colorization even at higher flight speeds.

The included TV1 Lite Annual Processing license allows users to handle everything from raw data export to PPK trajectory processing within the LP360 environment. This streamlined approach ensures that even organizations new to LiDAR can produce professional .las files that are compatible with any industry-standard GIS or modeling software.

Hardware, software, and SDK compatibility

  • Platform support: Native integration for Freefly Astro Max and Inspired Flight IF800
  • Expanded airframes: Supported on DJI M300/M350 RTK with optional hardware kits
  • Software integration: Native post-processing in GeoCue's LP360 Drone software
  • Mounting kits: Standard kits included for Astro and IF800 aircraft platforms
  • Data standards: Exports standard .las files for cross-platform software compatibility
  • Processing license: Includes one year of TV1 Lite annual processing and support

Deployment scenarios

  • Topographic surveys: Generate accurate terrain models for civil engineering projects
  • Infrastructure audits: Inspect power lines, bridges, and cellular towers with 3D precision
  • Environmental monitoring: Track changes in coastal zones and forested regions
  • Construction tracking: Measure stockpiles and site progress with consistent volumetric data
  • Agriculture research: Analyze crop height and terrain variations for precision farming
  • Urban planning: Create detailed 3D models of city blocks for development analysis
  • Mining operations: Conduct frequent safety and volume surveys in open-pit environments

Designed for enterprise operations

The TrueView 1 Lite represents a strategic shift in accessible LiDAR technology, offering a professional hardware platform that is both easy to operate and cost-effective to maintain.

By focusing on the core components required for survey-grade accuracy, this system enables a wider range of organizations to benefit from high-density 3D data collection. The system’s lightweight footprint and robust software ecosystem ensure that your aerial mapping program can scale efficiently as your project needs evolve.

Dronefly acts as your exclusive drone partner, ensuring that your transition to LiDAR technology is supported by expert knowledge and a fully integrated Solutions Lifecycle. We provide the comprehensive support and technical backing necessary to turn your TrueView 1 Lite into a high-output professional asset.

Maximize your mapping potential today by choosing the GeoCue TrueView 1 Lite from Dronefly.

  • LiDAR Scanner: Hesai XT-32 (32 channels)
  • Laser Returns: Dual return (critical for mapping terrain through vegetation)
  • Point Rate: 640,000 points per second (up to 1.28 million with dual returns)
  • Operating Range: 80m recommended (120m maximum)
  • LiDAR Accuracy: ±1 cm range accuracy / 0.5 cm precision
  • Camera: Integrated 5 MP FLIR Global Shutter (80° Field of View)
  • Weight: 1.4 kg (3.1 lbs)
  • Positioning: Integrated TrueNav GNSS/IMU system for survey-grade results
  • Drone Compatibility: DJI Matrice 300/350/400, Freefly Astro, Inspired Flight IF800/1200
  • Software Included: 1-year subscription to LP360 Drone for processing and colorization
  • Training: 2 days of professional instruction at GeoCue HQ (Huntsville, AL) or remote
  • Support: 1 year of hardware and software technical support
  • Storage: Data logged via included USB thumb drive
  • 1x TV1 Lite Sensor
  • 1x USB thumb drive
  • 1x Sensor hardcase
  • 1 Year of LP360 drone subscription
  • 1 year of hardware and software support
  • 2 days of included training at our Huntsville, AL office
Where is the TrueView 1 Lite manufactured?

The TrueView 1 Lite is designed and assembled in the USA, specifically in Huntsville, Alabama. This ensures high manufacturing standards and provides users with a direct line to domestic technical support and hardware maintenance. However, the TrueView 1 Lite is not NDAA-compliant.

Can the TrueView 1 Lite be equipped with a different camera?

The TV1 Lite is designed as a fixed-specification payload with a 5MP global shutter camera. If your mission requires higher resolution imagery—such as 26MP, 45MP, or 61MP—or if you need multiple cameras for wider coverage, we recommend exploring the standard TrueView 1 model or other payloads in the TrueView series.

Can I process the data in other software besides LP360?

The TV1 Lite includes the tools to process raw LiDAR data and generate industry-standard .las files within LP360 Drone. Initial processing and colorization must be completed in LP360 Drone. Once exported as a point cloud (.las), the data can be imported into any compatible third-party GIS or CAD software for further modeling, analysis, or deliverables.

What is the weight of the sensor and how does it affect the drone?

The sensor weighs 1.4 kg (approximately 3.1 lbs). This lightweight design is intended to minimize the impact on the drone's center of gravity and battery life. On platforms like the Freefly Astro or Inspired Flight IF800, you can expect professional-grade flight endurance while carrying the full LiDAR payload.

Is the mounting kit included for the DJI M350?

Mounting kits for the Inspired Flight IF800 and Freefly Astro Max are typically provided at no additional cost because the necessary technology is already part of those drone platforms. For the DJI M300 or M350, you will need to purchase a separate mounting and antenna kit to support the TV1 Lite.
