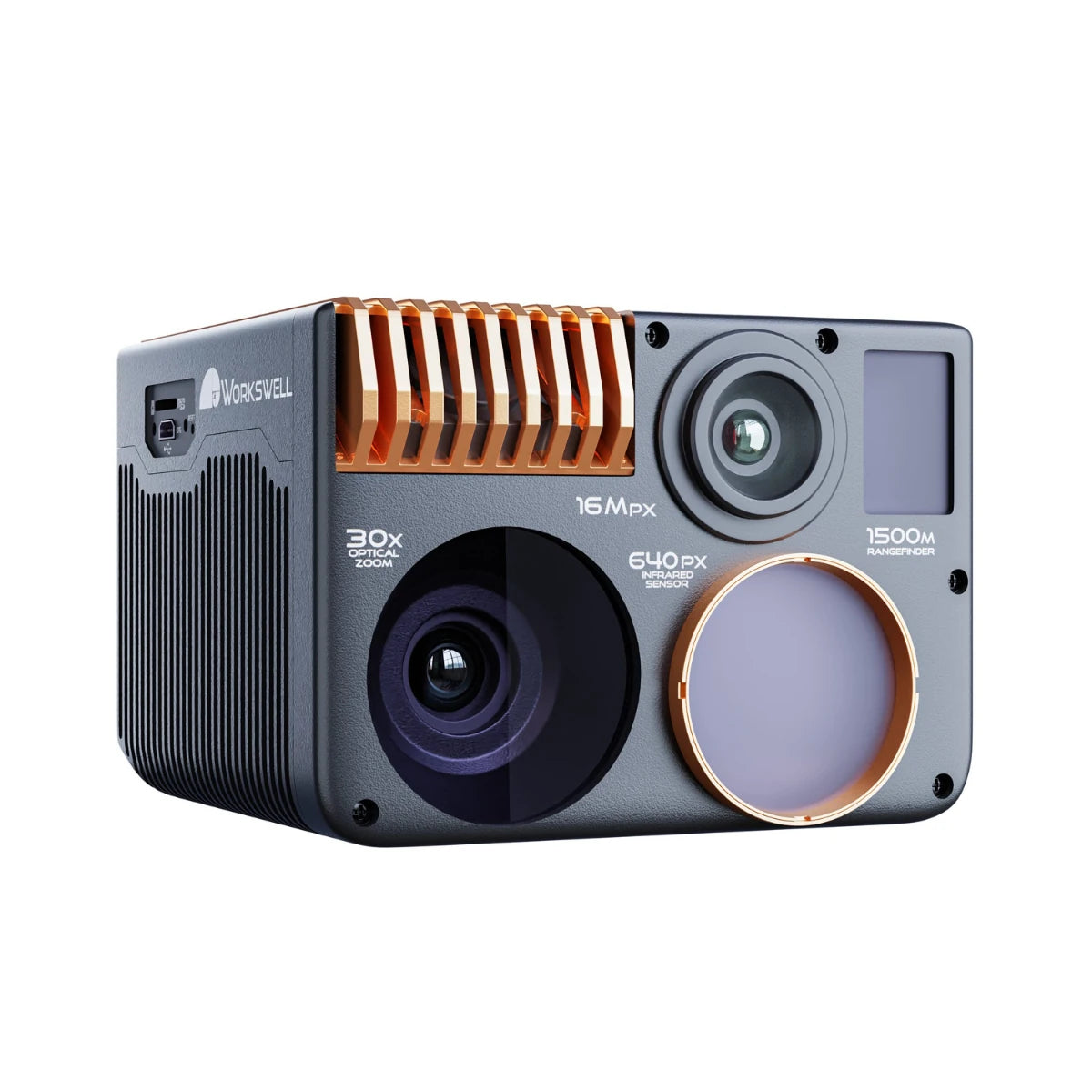

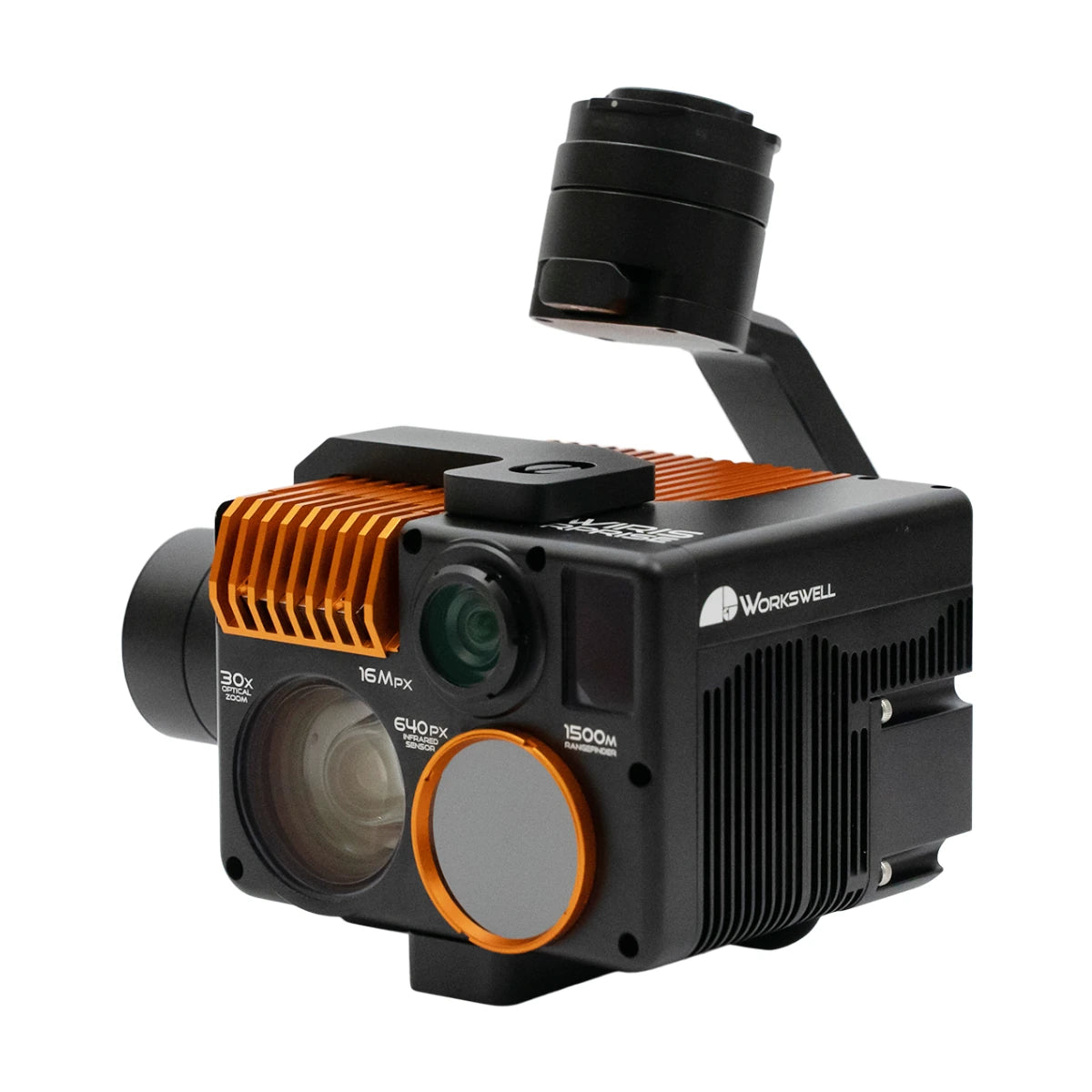

Inspired Flight IF1200A Payload Workswell WIRIS Enterprise Thermal Camera with Gremsy Pixy WE Gimbal

Workswell WIRIS Enterprise Thermal Camera with Gremsy Pixy WE Gimbal: Radiometric Imaging to 1,500°C for the IF1200A

The Workswell WIRIS Enterprise Thermal Camera with Gremsy Pixy WE Gimbal turns a single IF1200A flight into a complete inspection dataset, pairing a radiometric thermal camera with two RGB cameras and a laser rangefinder on one stabilized platform.

Each captured scene generates five separate images automatically: high-resolution thermal, high-resolution visible, a controller screenshot, an optical zoom frame, and a standard IR image, so a single pass covers what would otherwise take multiple sensor swaps.

Key Features and Benefits

• Radiometric thermal camera: captures 640x512 imaging up to 1500 degrees Celsius
• Super resolution mode: enhances thermal images to 1.3 megapixel resolution
• 30x optical zoom: identifies distant targets without closing physical distance
• 16MP fixed camera: captures high resolution imagery for mapping documentation
• Laser rangefinder: measures target distance accurately up to 1500 meters
• Rugged IP66 rating: withstands dust, rain, and pressurized water jets
• Stabilized Pixy WE gimbal: keeps footage smooth during active flight
• WIRIS OS control: streams real time data during every flight
• Calibrated thermal lens: ensures accurate temperature readings for research work
• ThermoLab software included: analyzes thermal data with detailed reporting tools

Depending on configuration, the thermal sensor reads temperatures up to 1,500°C, while a 30x optical zoom brings distant targets into focus without repositioning the aircraft. Whether outfitting a single IF1200A or standardizing sensor packages across a broader fleet, an IP66-rated housing and a purpose-built Gremsy Pixy WE gimbal keep this payload field ready in demanding conditions without extra protective equipment. Thermal inspection teams, firefighting units, and environmental researchers all get detection, documentation, and precise measurement in one deployment.

Built for Data You Can Act On

Compliance documentation and trend analysis both depend on radiometric accuracy holding up over time, and a ±2°C calibrated accuracy rating gives operators confidence in every reading this payload produces. The 30x optical zoom lets inspectors confirm findings from a safe standoff distance, keeping personnel away from hazardous equipment or unstable structures during an assessment.

An IP66 housing and included rugged case reduce the operational risk of field damage, protecting a sensor investment that's central to inspection, security, and research programs alike. Together, these systems turn a single flight into a defensible, repeatable dataset.

Compatibility and System Integration

• IF1200A airframe: connects via MavLink through flight controller (sold separately)
• Gremsy Pixy WE gimbal: arrives fully integrated and mounted (included)
• Hard transport case: protects the full payload during travel (included)
• Rugged payload case: houses the camera for field storage (included)
• Micro SD card: provides additional storage for image capture (included)
• ThermoLab software license: enables full radiometric analysis on desktop (included)
• Gremsy T3V3 gimbal: offers an alternate mounting option (sold separately)

Applications and Use Cases

• Industrial inspection: identifies overheating equipment before failures cause costly downtime
• Firefighting support: locates hotspots and monitors fire behavior from altitude
• Security surveillance: detects intruders using thermal signatures during nighttime operations
• Search and rescue: locates missing persons through dense vegetation cover
• Geological survey: documents terrain features using high resolution mapping imagery
• Environmental research: monitors wildlife and ecosystems without disturbing natural habitats

Combining radiometric thermal imaging, optical zoom, and precise distance measurement into a single payload cuts down the number of flights needed to build a complete inspection record.

Rugged construction and calibrated sensors support that record across repeated deployments, whether the mission is a one-time survey or a recurring monitoring program. The result is a sensor package that scales from a single aircraft to a broader fleet without changing the underlying data quality.

Dronefly equips IF1200A operators with the payload configurations that match their mission scope, from a single unit to a multi-aircraft program. Our specialists can confirm gimbal setup and MavLink licensing requirements as part of your order.

Buy the Workswell WIRIS Enterprise with Gremsy Pixy WE Gimbal direct from Dronefly today.
