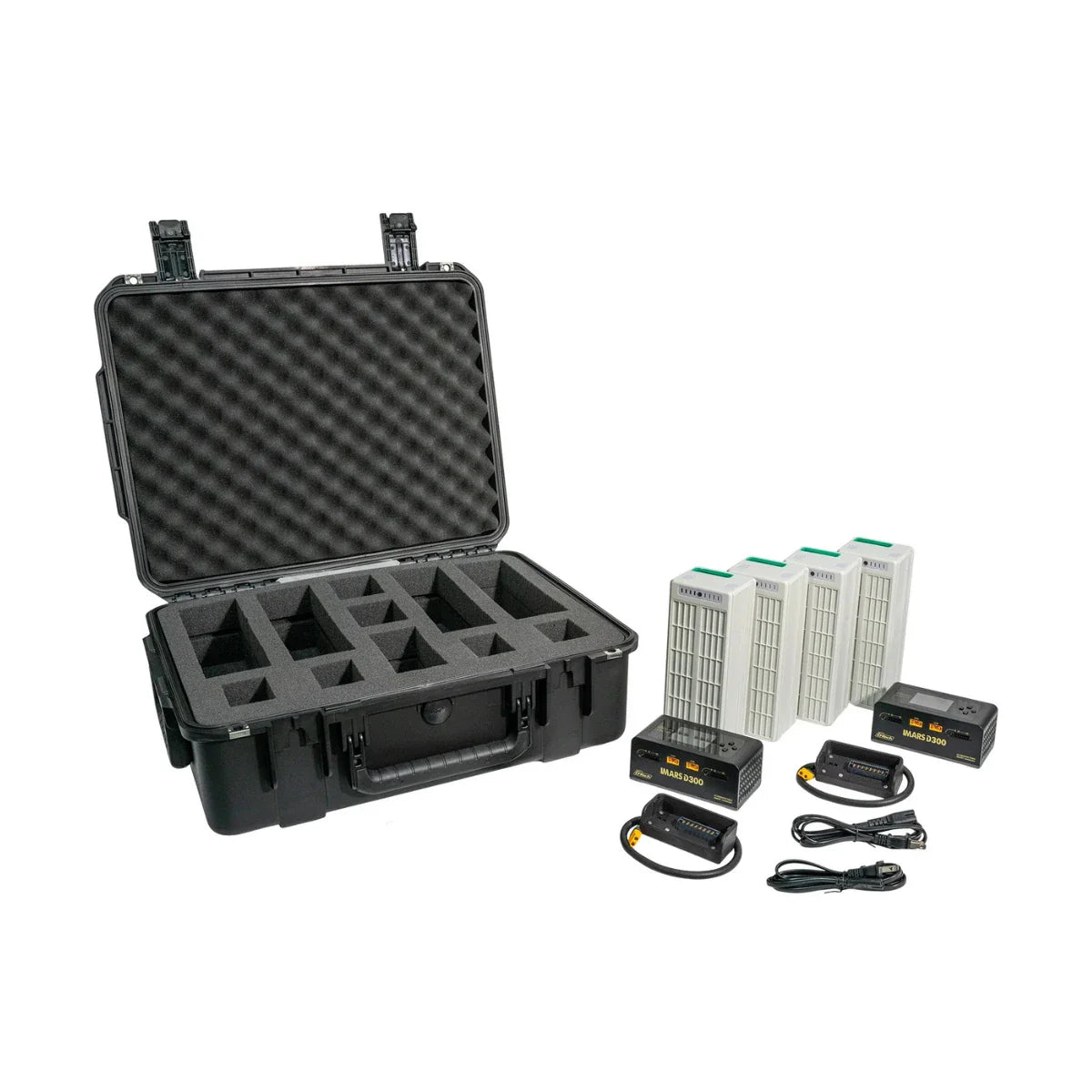

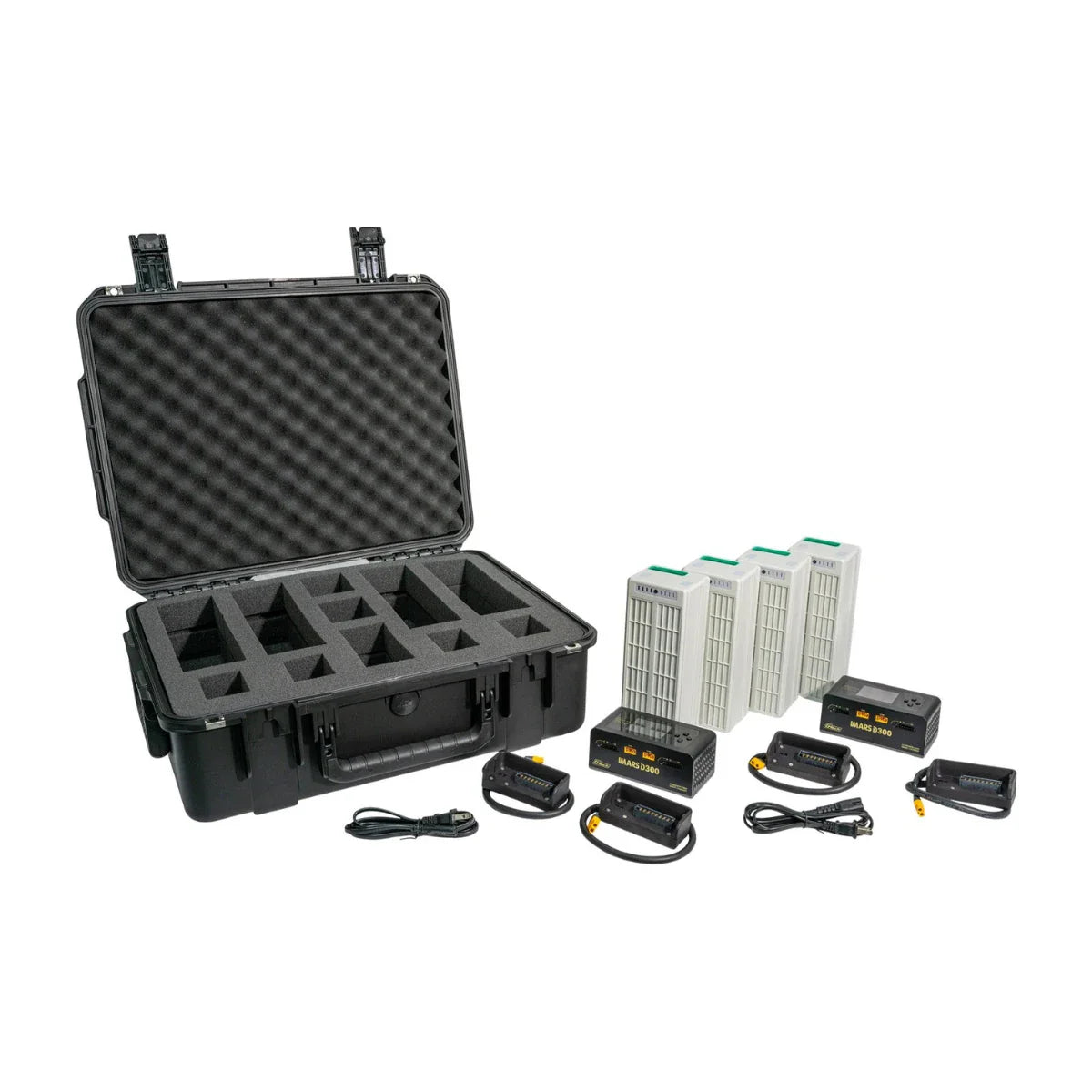

Inspired Flight IF800 Battery Kit

Inspired Flight IF800 Battery Kit

$4,000.00
$4,000.00
Sale Sold out
SKU S-IF-IF800-BATKIT MPN 102835
  • Includes 4 IB388 batteries for dual-set IF800 configuration
  • 387.6 Wh capacity supports extended UAV mission duration
  • Two chargers support parallel charging across battery sets
  • Enables continuous operations through efficient battery rotation
  • Hot-swappable batteries allow rapid replacement between flights
  • Smart BMS system ensures safe and stable battery operation
  • NFC support enables access to battery diagnostics and status
  • DroneCAN communication integrates with IF800 aircraft system
  • Rugged case supports transport and protection during deployment
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Inspired Flight IF800 Battery Kit: Dual-Set Battery and Charging Kit for IF800 Power Management

The Inspired Flight IF800 Battery Kit combines multiple IB388 smart batteries with charging hardware to support efficient power management for IF800 operations. It includes four high-voltage batteries configured as two complete sets, along with two chargers and charging cables for structured charging workflows.

Each IB388 battery delivers 387.6 Wh using lithium high-voltage chemistry and communicates with the aircraft via DroneCAN. Designed for rapid deployment, the system supports hot swapping, NFC-based diagnostics, and consistent performance across repeated flight cycles.

Key Features and Benefits

  • Four-battery system: includes 4 IB388 batteries forming 2 complete sets
  • 387.6 Wh capacity: delivers high-energy output for mission endurance
  • Two chargers included: supports simultaneous charging across battery sets
  • Battery rotation: enables continuous flight operations with minimal downtime
  • Hot-swap capability: allows battery changes without powering down aircraft
  • Integrated BMS: manages safety, monitoring, and performance control
  • NFC-enabled batteries: supports detailed status and diagnostics access
  • DroneCAN interface: ensures direct communication with IF800 system
  • Transport case: provides protection and portability for field operations

Applications and Use Cases

  • Mapping workflows: supports extended survey missions with multiple flights
  • Inspection operations: enables repeated deployments with battery rotation
  • Remote deployments: supports operations in areas with limited charging access
  • Training sessions: allows continuous flight cycles without interruption
  • Field operations: improves efficiency through structured charging workflows
  • Mission continuity: ensures reliable power availability across deployments

The IF800 Battery Kit provides a structured and efficient power system for IF800 operations. Its multi-battery configuration and charging support enable consistent performance across extended mission cycles.

With Dronefly, you get UAV components designed to support reliable and repeatable operations. Order the Inspired Flight IF800 Battery Kit from Dronefly today.

Battery Specifications

  • Battery chemistry: Lithium polymer high-voltage (LiHv)
  • Configuration: 6S1P with internal BMS
  • Nominal energy: 387.6 Wh
  • Capacity: 17,000 mAh
  • Nominal voltage: 22.8 V
  • Max voltage (100%): 26.1 V
  • Minimum voltage (1% capacity): 21.6 V
  • Minimum safe voltage: 19.8 V

Charge and Discharge

  • Max continuous discharge: 40 A
  • Max burst discharge: 55 A
  • Max charge current: 17 A (1C)
  • Cut-off charge current: 18 A
  • Max charge voltage: 26.1 V (4.35 V/cell)
  • Overcharge cutoff voltage: 4.38 V/cell (BMS regulated)

Battery Management

  • Cell balancing: BMS controlled (<0.01 V variance)
  • Self-discharge: Reduces to 3.8 V/cell after 48 hours
  • Additional data access: Available via NFC
  • Aircraft communication: DroneCAN

Physical

  • Weight: 2.08 kg
  • Dimensions: 74 × 89 × 228 mm

Environmental

  • Operating temperature: -10°C to 45°C
  • Max internal temperature: 70°C
  • Storage temperature: 10°C to 30°C

Lifecycle

  • Life expectancy: 150–300 cycles
  • Long-term storage: Cycle once every 3 months

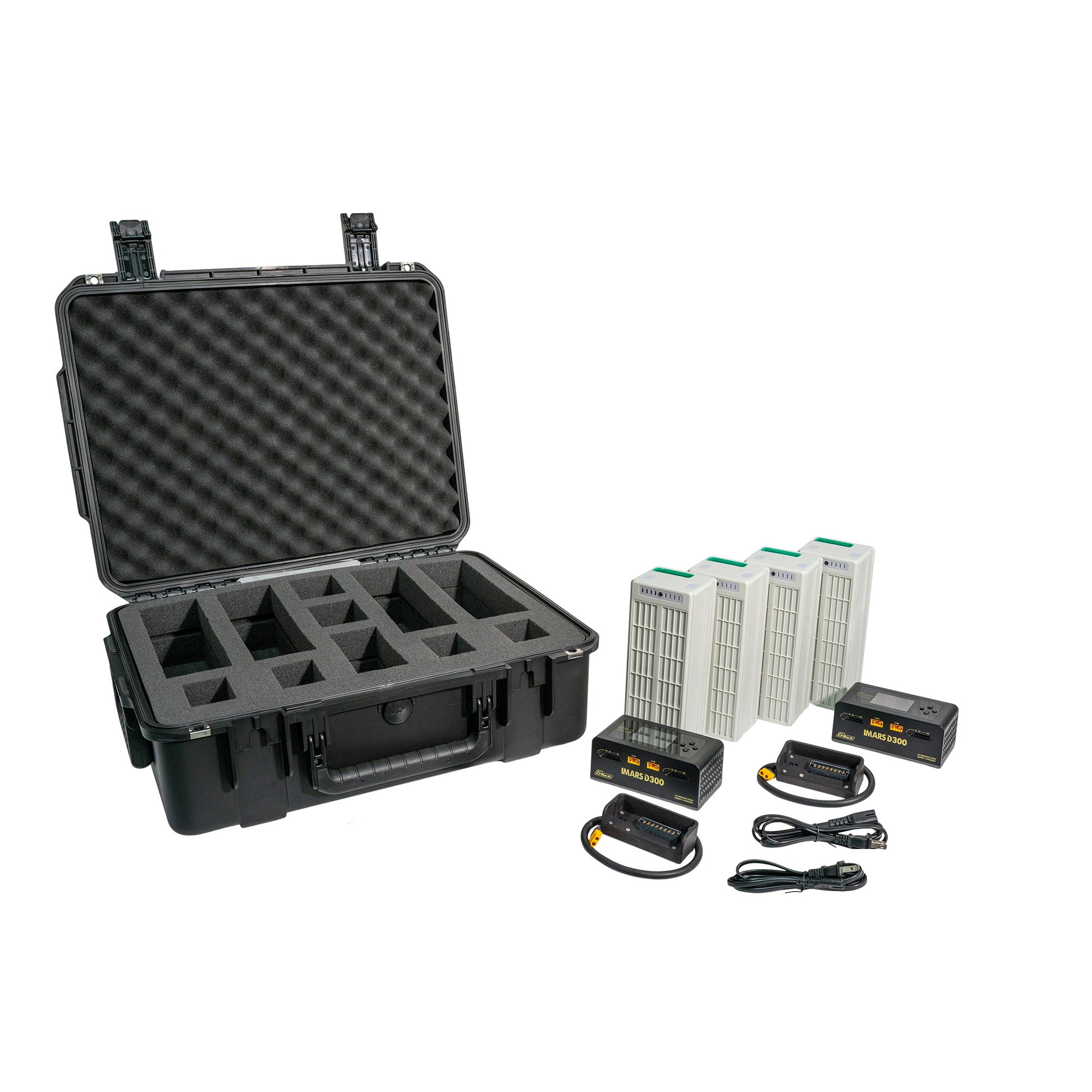

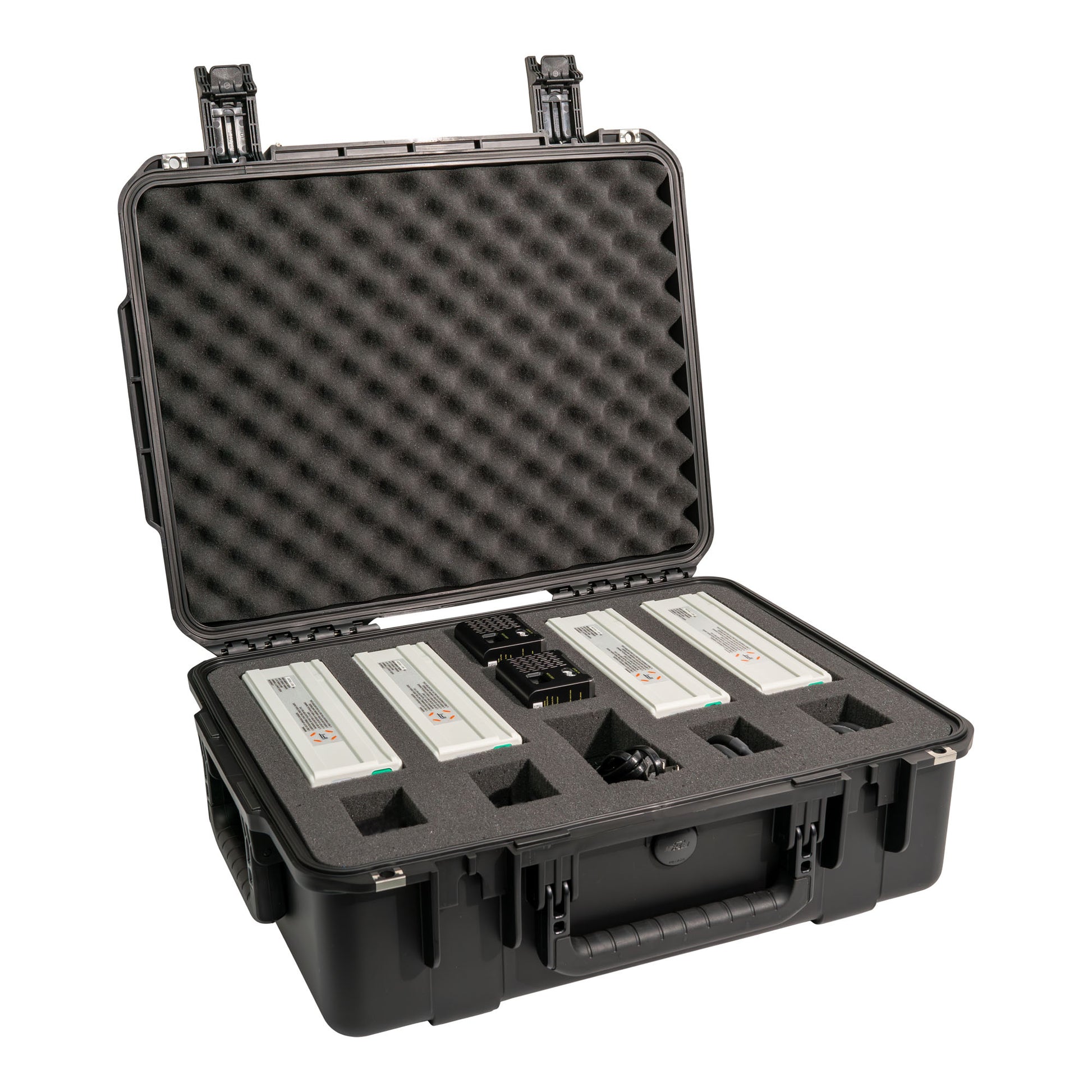

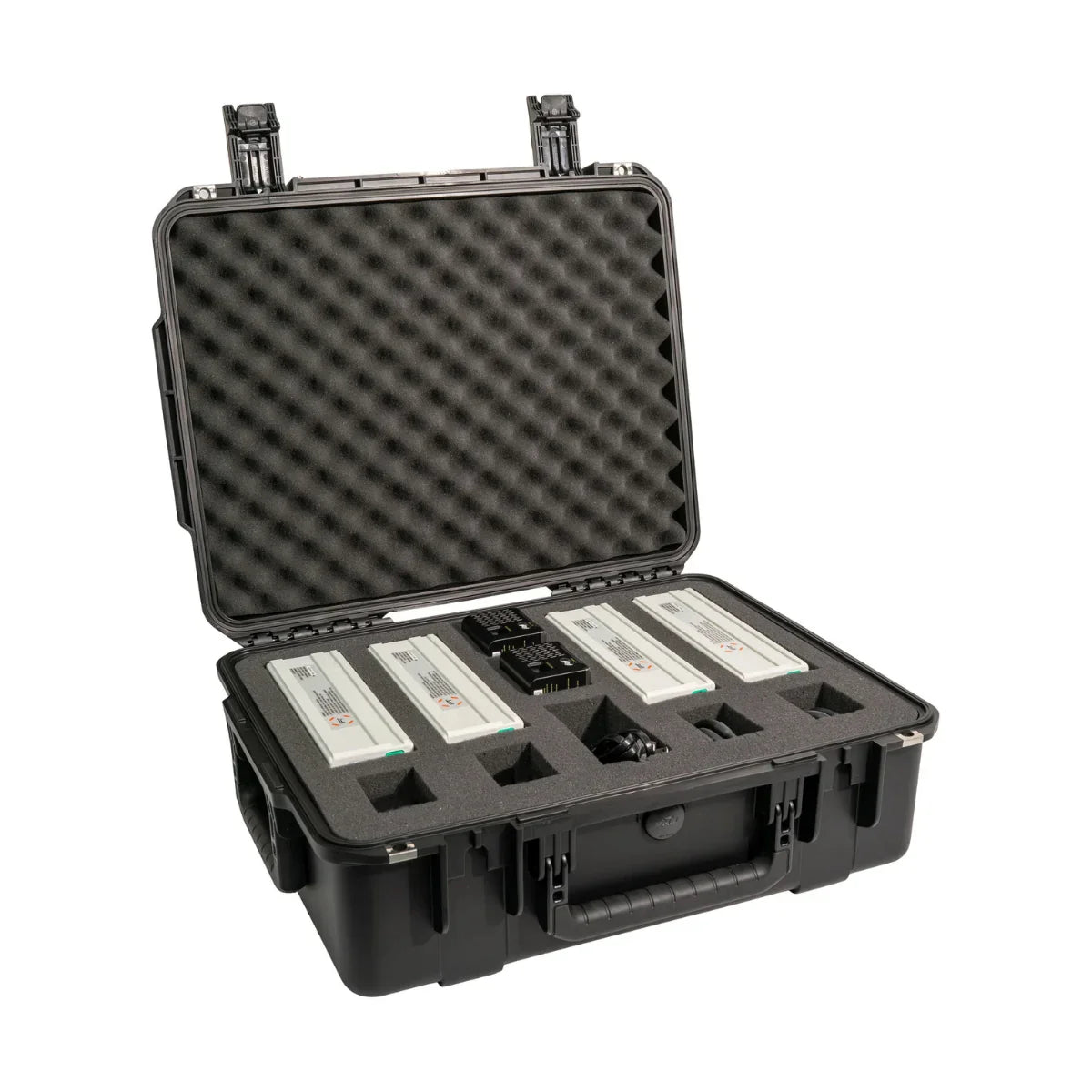

  • 4x Inspired Flight IB388 Smart Voltage Batteries
  • 2x Inspired Flight IF800 Battery Charger
  • 2x AC Power Cords
  • 2x IF800 Charging Cables
  • 1x Rugged Transport Case
What does the Inspired Flight IF800 Battery Kit include?

It includes four IB388 batteries, two chargers, charging cables, and a transport case. This forms two complete battery sets. It is designed for extended operations.

How does the Inspired Flight IF800 Battery Kit improve workflow efficiency?

It allows simultaneous charging and battery rotation. This reduces downtime between flights. It supports continuous operations.

Are the IB388 batteries in the Inspired Flight IF800 Battery Kit hot-swappable?

Yes, they can be replaced without powering down the aircraft. This improves turnaround time. It supports rapid deployment.

What technology is used in the IB388 batteries?

They use lithium polymer high-voltage chemistry with a 6S configuration. They include an integrated BMS, NFC, and DroneCAN communication. This ensures performance and monitoring.

Is the Inspired Flight IF800 Battery Kit designed specifically for the IF800?

Yes, it is built for the IF800 platform. It ensures proper fit and compatibility. It is not intended for other aircraft.
