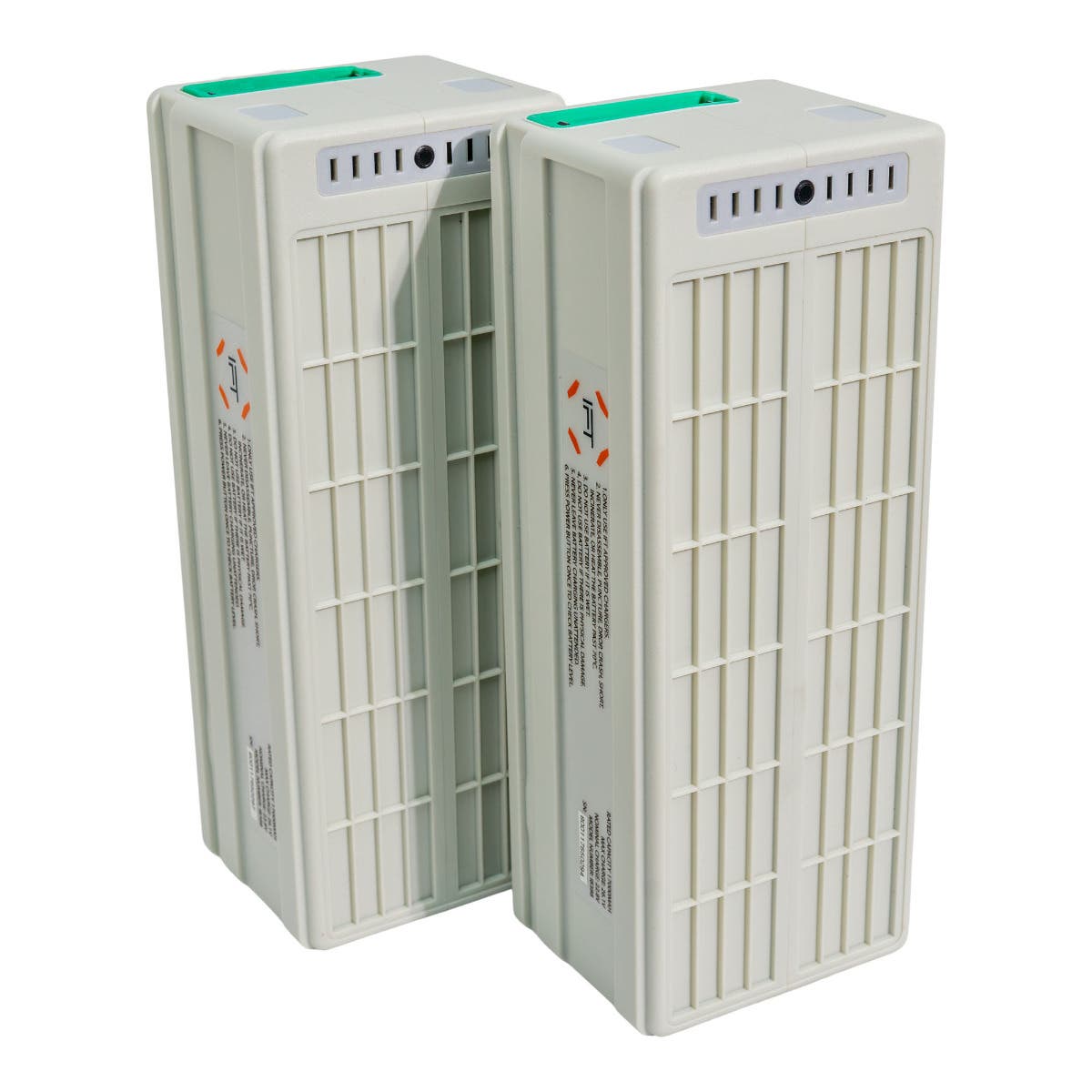

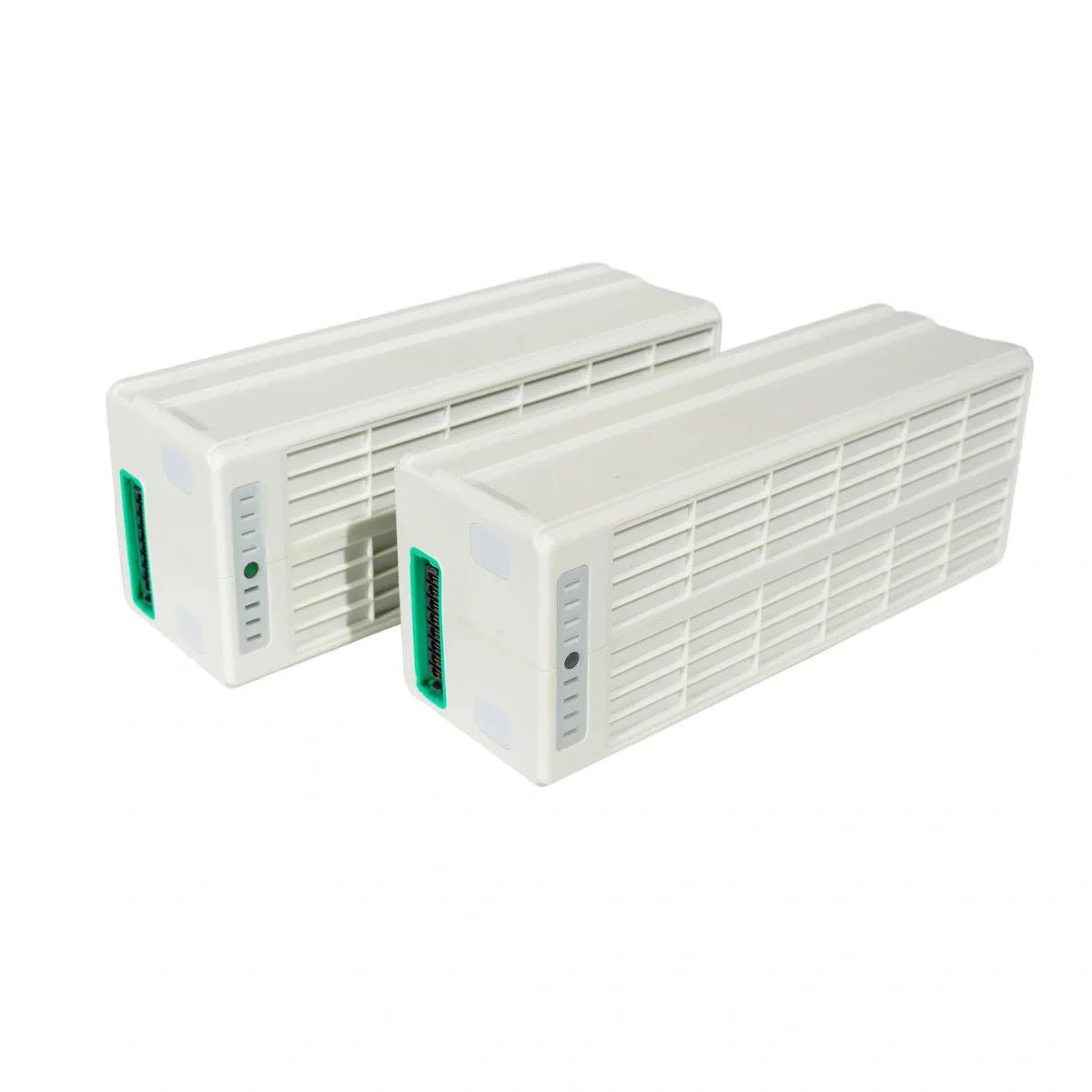

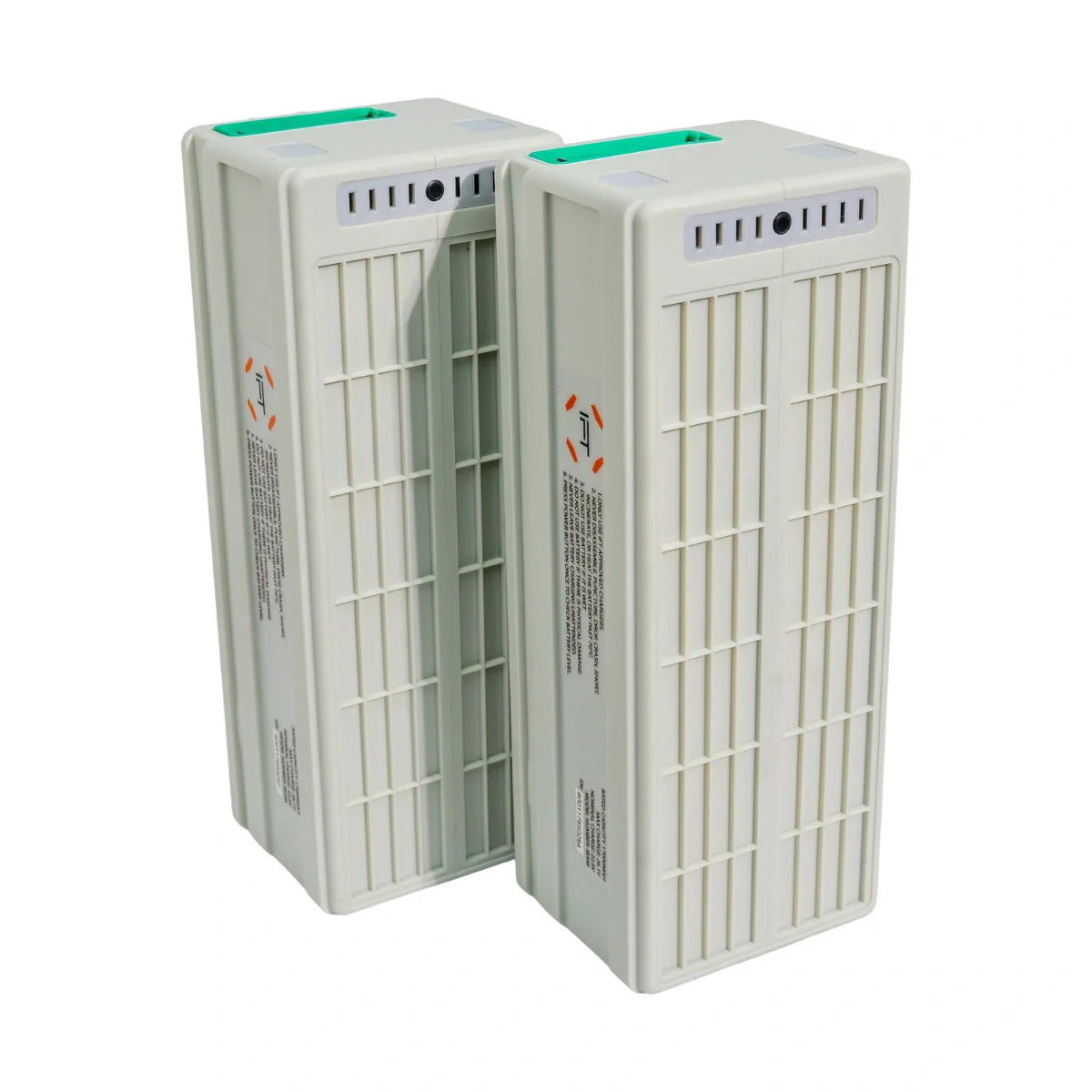

Inspired Flight IF800 Battery Set

Inspired Flight IF800 Battery Set

$1,500.00
$1,500.00
Sale Sold out
SKU S-IF-IF800-BATT MPN 102836
  • Includes 2 IB388 batteries for IF800 dual battery configuration
  • 387.6 Wh capacity supports extended UAV mission duration
  • 17,000 mAh provides high-capacity energy for demanding operations
  • 22.8 V nominal voltage ensures stable flight power output
  • Hot-swappable batteries enable rapid replacement between missions
  • Smart BMS system provides protection and performance monitoring
  • NFC support enables detailed battery status access in field
  • DroneCAN communication integrates seamlessly with aircraft systems
  • Internal balancing maintains <0.01 V cell variance for reliability
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Inspired Flight IF800 Battery Set: IB388 Dual Smart Battery System for IF800 Power and Performance

The Inspired Flight IF800 Battery Set is a dual IB388 smart battery system engineered to power the IF800 platform with consistent and high-capacity energy output. Each battery delivers 387.6 Wh using a 6S lithium high-voltage configuration, supporting stable flight performance and system communication through DroneCAN. The integrated BMS manages protection, balancing, and thermal monitoring, while NFC capability allows operators to access detailed battery data. Designed for operational efficiency, the hot-swappable design supports rapid battery changes, enabling continuous UAV workflows across demanding missions.

Key Features and Benefits

  • IB388 dual system: includes 2 matched batteries for IF800 operation
  • 387.6 Wh energy: supports extended mission duration per battery
  • 17,000 mAh capacity: provides high energy density for UAV workloads
  • 22.8 V output: ensures stable voltage across flight operations
  • Hot-swap capability: allows battery replacement without powering down aircraft
  • Integrated BMS: manages protection, monitoring, and system performance
  • NFC functionality: enables access to battery diagnostics and status data
  • DroneCAN interface: supports direct communication with aircraft systems
  • Precision balancing: maintains <0.01 V cell variance during operation

Applications and Use Cases

  • Primary flight power: provides required battery system for IF800 aircraft
  • Backup battery sets: supports extended operations with additional capacity
  • Continuous deployment: enables rapid turnaround between flights
  • Training missions: supports repeated flight cycles for operator training
  • Field operations: reduces downtime through quick battery swaps
  • Mission readiness: ensures consistent power availability for scheduled flights

The IF800 Battery Set provides a consistent and integrated power solution tailored to the IF800 platform. Its smart battery features and high-capacity design support reliable performance across repeated operations.

With Dronefly, you get dependable UAV components built for real-world deployment. Order the Inspired Flight IF800 Battery Set from Dronefly today.

Battery Specifications

  • Battery chemistry: Lithium polymer high-voltage (LiHv)
  • Configuration: 6S1P with internal BMS
  • Nominal energy: 387.6 Wh
  • Capacity: 17,000 mAh
  • Nominal voltage: 22.8 V
  • Max voltage (100%): 26.1 V
  • Minimum voltage (1% capacity): 21.6 V
  • Minimum safe voltage: 19.8 V

Charge and Discharge

  • Max continuous discharge: 40 A
  • Max burst discharge: 55 A
  • Max charge current: 17 A (1C)
  • Cut-off charge current: 18 A
  • Max charge voltage: 26.1 V (4.35 V/cell)
  • Overcharge cutoff voltage: 4.38 V/cell (BMS regulated)

Battery Management

  • Cell balancing: BMS controlled (<0.01 V variance)
  • Self-discharge: Reduces to 3.8 V/cell after 48 hours
  • Additional data access: Available via NFC
  • Aircraft communication: DroneCAN

Physical

  • Weight: 2.08 kg
  • Dimensions: 74 × 89 × 228 mm

Environmental

  • Operating temperature: -10°C to 45°C
  • Max internal temperature: 70°C
  • Storage temperature: 10°C to 30°C

Lifecycle

  • Life expectancy: 150–300 cycles
  • Long-term storage: Cycle once every 3 months
  • 2x IB388 High Voltage Smart Batteries (1 set)
What does the Inspired Flight IF800 Battery Set power?

The battery set powers the IF800 aircraft using a dual-battery configuration. Both batteries are required for operation. It provides the primary energy source for flight.

What technology is used in the IB388 battery?

The IB388 uses lithium polymer high-voltage (LiHv) chemistry in a 6S configuration. It includes an integrated BMS for safety and performance. It also supports NFC and DroneCAN communication.

Can the Inspired Flight IF800 Battery Set be swapped during operations?

Yes, the batteries are hot-swappable. This allows replacement without shutting down the aircraft. It supports continuous mission workflows.

How is battery data accessed on the IB388?

Battery data can be accessed through NFC and compatible applications. The system provides detailed diagnostics and health information. It also communicates directly with the aircraft.

What is the lifecycle of the Inspired Flight IF800 Battery Set?

The battery is rated for 150 to 300 cycles. Proper handling and storage help maintain performance. Periodic cycling is recommended for long-term storage.
