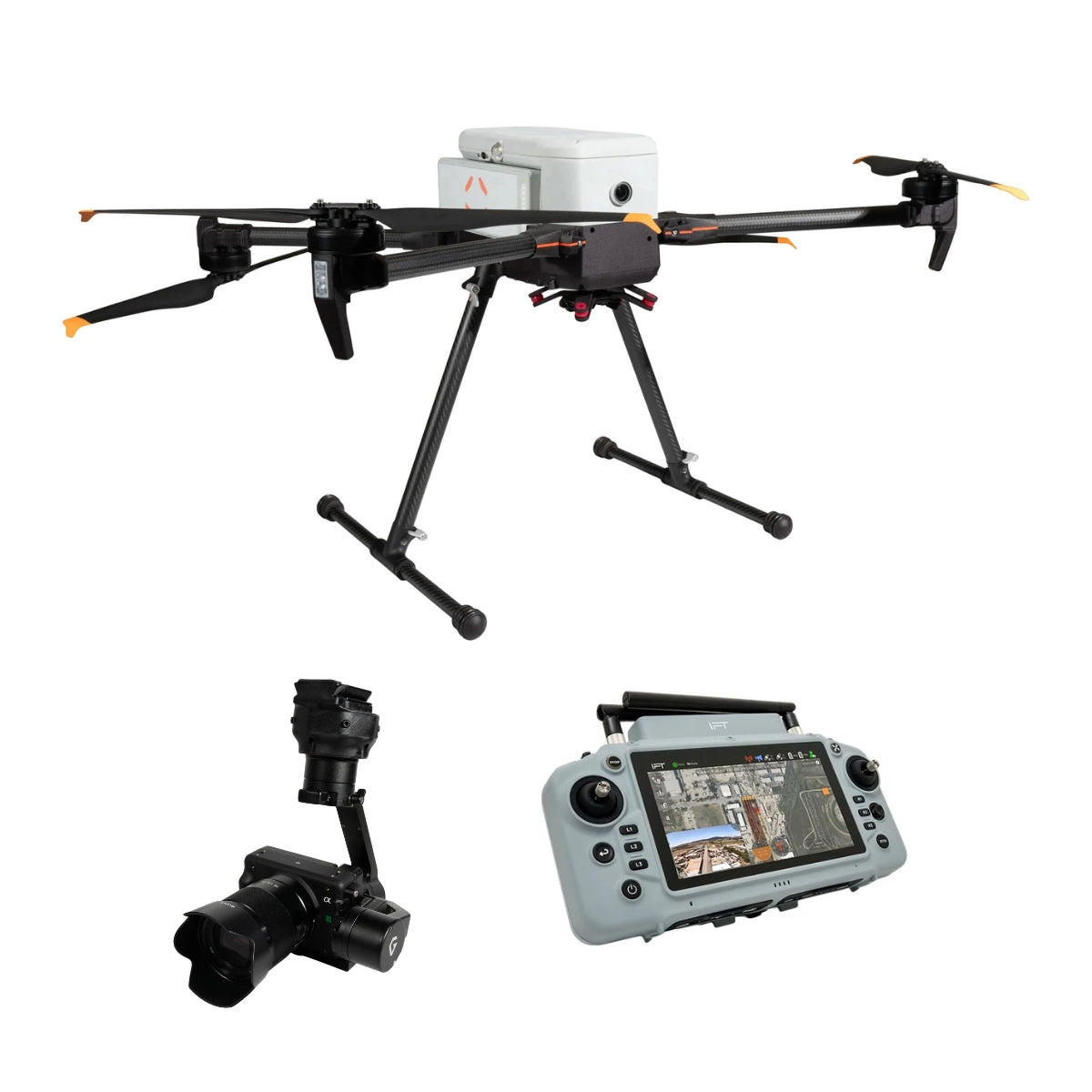

Inspired Flight IF800 with GS-ONE Ground Control Station + Sony ILX-LR1 Bundle

Inspired Flight IF800 with GS-ONE Ground Control Station + Sony ILX-LR1 Bundle

$38,245.00
$38,245.00
Sale Sold out
  • Extended flight sessions run up to 54 minutes.
  • Precision imaging comes from a full-frame 61 megapixel sensor.
  • Redundant flight control reduces risk across every mission.
  • Integrated gimbal stabilization holds imagery steady at altitude.
  • Weatherproof IP43 construction supports repeated field deployment cycles.
  • Adaptive E-mount lenses expand mission coverage options easily.
  • Dual hot-swappable batteries minimize downtime between flight cycles.
  • Scalable payload architecture supports growing sensor program needs.
  • Stabilized six-mile transmission range keeps crews connected reliably.
  • Certified Blue UAS compliance simplifies government program procurement.
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Inspired Flight IF800 with GS-ONE Ground Control Station + Sony ILX-LR1 Bundle: A Ready-to-Deploy Mapping Platform with 54-Minute Endurance

The IF800 Tomcat Quadcopter arrives configured with the GS-ONE ground control station and the Sony ILX-LR1 camera payload as a single, pre-integrated system, so operators evaluating a first professional platform and teams expanding an existing NDAA-compliant fleet both receive the same deployment-ready package.

This Blue UAS certified airframe supports up to 54 minutes of flight time on dual hot-swappable IB388 batteries, with the CubePilot Cube Blue H7 flight controller and dual GNSS receivers providing the stability needed for consistent data capture through wind gusts up to 23 knots. Whether the aircraft is joining a single-unit toolkit or a larger sensor program, the airframe, controller, and payload arrive matched and mission ready.

Key Features and Benefits

  • Endurance profile: up to 54 minutes per flight on hot-swappable batteries.
  • Sensor capability: 61 megapixel full-frame imaging for photogrammetry grade output.
  • Lift margin: 6.6 lb (3.0 kg) payload capacity for sensor flexibility.
  • Redundancy built in: triple IMU flight controller reduces single-point failure risk.
  • Field durability: IP43 rating and a foldable frame for repeated deployment.
  • Data link: GS-ONE maintains connection across a six-mile transmission range.
  • Battery telemetry: NFC-enabled packs report health without powering on the aircraft.
  • Program compliance: NDAA status and Blue UAS certification streamline agency procurement.
  • Wind tolerance: stable operation continues through gusts reaching twenty-three knots.
  • Optical flexibility: interchangeable E-mount lenses adapt coverage to mission scope.

Where lower-resolution cameras require multiple passes to cover the same ground, the Sony ILX-LR1's 61MP full-frame sensor captures survey-grade detail in fewer flights, shortening the data collection window on any project timeline. Its interchangeable E-mount lens system lets an operator match focal length to mission altitude, and the standard 35mm optic covers most mapping and inspection work out of the box.

GS-ONE ground control extends that efficiency with a 2,000-nit touchscreen and up to five hours of runtime, holding a reliable six-mile link across a full operating day. Every component in this package, aircraft, controller, camera, batteries, and case, integrates through Inspired Flight's supported ecosystem without third-party adaptation.

Imaging Performance Built for Scale

Data quality compounds across a project when the sensor resolves fine detail on the first pass. The ILX-LR1's BIONZ XR processor holds noise low from ISO 100 through 32000, so imagery stays usable in shifting light without reprocessing in post. Mechanical and electronic shutter modes prevent blur during forward flight, and native 4:3 capture drops straight into standard photogrammetry pipelines.

Because the lens mount accepts the broader Sony E-mount lineup, the same airframe adapts to survey, inspection, or close-range documentation work as project requirements shift, protecting the platform investment across multiple use cases.

Compatibility and System Integration

  • GS-ONE ground station: included standard, ready to fly on arrival.
  • Sony ILX-LR1 system: included as camera, lens, gimbal, and mount.
  • Flight batteries: two IB388 packs and a charger included with purchase.
  • Case and transport: rugged wheeled case included for full system storage.
  • Alternate controller: Blue Herelink ground station available, sold as a separate SKU.
  • Lens expansion: additional Sony E-mount optics sold separately for specialized coverage.
  • Protection plans: Inspired Care coverage available as an optional annual add-on.
  • Sensor lineup: Gremsy VIO and Sentera payloads compatible, priced and sold separately.

Applications and Use Cases

  • Survey programs: builds orthomosaic datasets for land and site analysis.
  • Asset inspection: documents towers, rooftops, and pipeline infrastructure in detail.
  • Progress tracking: repeat flights monitor construction sites over project timelines.
  • Planning support: delivers survey-grade imagery for development and permitting work.
  • Mapping pipelines: still imagery feeds directly into photogrammetry processing software.
  • Visual reporting: 4K video supplements inspection documentation for stakeholder review.

A platform is only as useful as the ecosystem behind it. The IF800 Tomcat with GS-ONE and Sony ILX-LR1 gives operators a matched aircraft, controller, and camera system backed by Blue UAS certification and NDAA compliance, ready for immediate deployment on day one. That combination of endurance, resolution, and compliance keeps the platform relevant as project scope grows.

Whether this is a first professional platform or an addition to a growing sensor program, Dronefly ships the IF800 Tomcat with GS-ONE and Sony ILX-LR1 as one verified, mission-ready system. Every unit is backed by Dronefly's UAV Solutions Lifecycle Partnership Program, so support continues well past the initial purchase.

Order the IF800 Tomcat Quadcopter with GS-ONE and Sony ILX-LR1 from Dronefly today.

Inspired Flight IF800

Performance

  • Maximum ascent speed: 5 m/s (16 ft/s)
  • Maximum descent speed: 3 m/s (10 ft/s)
  • Maximum air speed: 22 m/s (49 mph)
  • Maximum wind resistance: 10 m/s, 12 m/s gusts (19 knots, 23 knots gusts)
  • Maximum tilt angle: 30°
  • Maximum angular velocity: Tilt 300°/s, Yaw 120°/s
  • Operating temperature: -20°C to 45°C (-4°F to 113°F)
  • Service ceiling: 4.2 km (14,000 ft) with 0.0 kg (0.0 lb) payload, 3.2 km (10,500 ft) with 1.5 kg (3.3 lb) payload, 2.0 km (6,500 ft) with 3.0 kg (6.6 lb) payloaod

Physical Specifications

  • Diagonal size (propeller center to center): 905 mm (35.6 in)
  • Unfolded dimensions (flight ready): 132 × 114 × 52 cm (51.8 × 44.8 × 20.3 in)
  • Folded dimensions (stowed): 36 × 44 × 20 cm (14.2 × 17.4 × 7.8 in)
  • Empty weight (without batteries): 4.2 kg (9.2 lbs)
  • Weight with batteries: 8.5 kg (18.7 lbs)
  • Maximum gross takeoff weight: 11.5 kg (25.3 lbs)
  • Maximum payload capacity: 3.0 kg (6.6 lbs)
  • Transport case dimensions: 52.8 × 80.7 × 31.7 cm (20.8 × 31.8 × 12.5 in)
  • Transport case weight (with aircraft and GCS): 18 kg (40 lbs)

Flight Stack

  • Flight controller: CubePilot Cube Blue H7 with triple redundant IMU
  • GNSS / Compass: Dual CubePilot Here4
  • Downward ground sensor: LightWare SF000/B
  • Payload power rails: 12 V, 2 A
  • Payload interface: Pixhawk Payload Bus Standard
  • Operating software: ArduPilot Copter QUAD V

Flight Modes

  • Position Hold: Maintains GPS position and altitude with responsive controls for faster speeds
  • Loiter: Holds GPS position and altitude for slow, precise, and stable flying
  • Auto: Executes pre-defined waypoint missions
  • RTL (Return to Launch): Automatically returns to the takeoff location and lands
  • Land: Automatically lands while maintaining horizontal position
  • Altitude Hold: Maintains altitude only; serves as a failsafe mode if GPS signal is lost

Sony ILX-LR1

Imaging

  • Lens mount: Sony E
  • Lens communication: Yes
  • Image sensor: 1.38-inch CMOS
  • Effective resolution: 60 MP (9504 × 6336)
  • Actual resolution: 60 MP (9504 × 6336)
  • Image stabilization: No
  • Built-in ND filter: No
  • Capture type: Stills and video

Exposure

  • Shutter type: Mechanical focal plane shutter and electronic global shutter
  • ISO sensitivity: Native ISO 100–32,000

Focus

  • Focus modes: Automatic and manual focus

Video

  • Internal recording formats: XAVC HS 4:2:2/4:2:0 (8/10-bit), XAVC S 4:2:2 (10-bit), XAVC S 4:2:0 (8-bit), XAVC S-I 4:2:2 (10-bit)
  • Maximum recording resolution: UHD 4K (3840 × 2160) up to 59.94 fps
  • Full HD recording: Up to 1920 × 1080 at 120 fps (XAVC S)
  • Video output: 4:2:2 8/10-bit up to UHD 4K; 16-bit RAW output up to UHD 4K
  • Fast/slow-motion recording: Supported
  • Gamma profiles: S-Cinetone, Sony S-Log3
  • Built-in microphone: None
  • IP streaming: MJPEG up to 3840 × 2160 at 30 fps

Storage & Interfaces

  • Memory card slot: Single SD/SDHC/SDXC (UHS-II)
  • Internal storage: None
  • Video outputs: 1× Micro-HDMI, 1× USB-C 3.0/3.1/3.2 Gen 1
  • Audio I/O: None
  • Power input: 1× Molex 6-pin (10–18 VDC)
  • Other I/O: 1× 6-pin camera interface (control, data, monitor I/O)
  • Wireless connectivity: None
  • Mobile app support: No
  • GPS: No

Power

  • Power consumption: 3.8 W

Environmental

  • Operating temperature: 0°C to 40°C (32°F to 104°F)

Physical Specifications

  • Tripod mount: 1× 1/4"-20 female (bottom)
  • Accessory mounting threads: 20× M4
  • Hot shoe: None
  • Viewfinder: Optional (not included)
  • Display: None
  • Dimensions: 100 × 74 × 42.5 mm (3.9 × 2.9 × 1.7 in)
  • Weight: 243 g (8.6 oz, body only)
  • 1x IF800 TOMCAT aircraft
  • 4x Propellers
  • 1x GS-ONE ground controller
  • 1x ugged transport case
  • 1x Sony ILX-LR1 payload
  • 2x Intelligent flight batteries (IB388)
  • 1x Battery charger
How much flight time does the IF800 Tomcat provide with the Sony ILX-LR1 installed?

Flight time on the IF800 Tomcat reaches up to 54 minutes on the dual hot-swappable battery system when unloaded, with real-world endurance holding above 40 minutes once the Sony ILX-LR1 payload is mounted. The hot-swap battery design lets an operator complete a battery change in the field within minutes, which keeps a single-unit deployment or a multi-aircraft program moving without long ground delays.

What makes the GS-ONE controller suited to extended field operations?

The GS-ONE pairs a 2,000-nit, 7-inch touchscreen with an IP55-rated enclosure and a hot-swappable battery rated for up to five hours of runtime. Its six-mile transmission range and Blue UAS compliant design make it a reliable choice for extended missions in bright outdoor conditions, whether the deployment is a single aircraft or part of a larger fleet rotation.

Can the Sony ILX-LR1's lens configuration change based on mission requirements?

Yes. The ILX-LR1 uses Sony's interchangeable E-mount system and ships in this bundle with a standard 35mm lens. Operators can swap in other compatible E-mount lenses to adjust focal length for different altitudes or coverage areas, which extends the value of the same camera body across multiple project types.

Does the IF800 Tomcat meet compliance requirements for government contracts?

Yes. The IF800 Tomcat holds Blue UAS certification from the Defense Innovation Unit and is NDAA compliant, meeting sourcing requirements common to federal, defense, and public safety procurement. This compliance status applies to both individual aircraft purchases and larger program-level acquisitions.

What exactly ships in the IF800 Tomcat GS-ONE and Sony ILX-LR1 bundle?

This bundle includes the IF800 Tomcat aircraft, four propellers, the GS-ONE ground controller, a rugged transport case, the Sony ILX-LR1 payload with its standard 35mm lens and integrated gimbal, two IB388 batteries, and a charger. The Blue Herelink controller and other Inspired Flight payloads, such as the Gremsy VIO or Sentera sensors, are sold separately.

Does the Sony ILX-LR1 support video capture in addition to mapping stills?

Yes. Alongside its primary 61MP full-frame still capture for photogrammetry and mapping, the ILX-LR1 records UHD 4K video. That capability supports inspection documentation and real-time monitoring tasks where detailed visual review matters more than audio.
