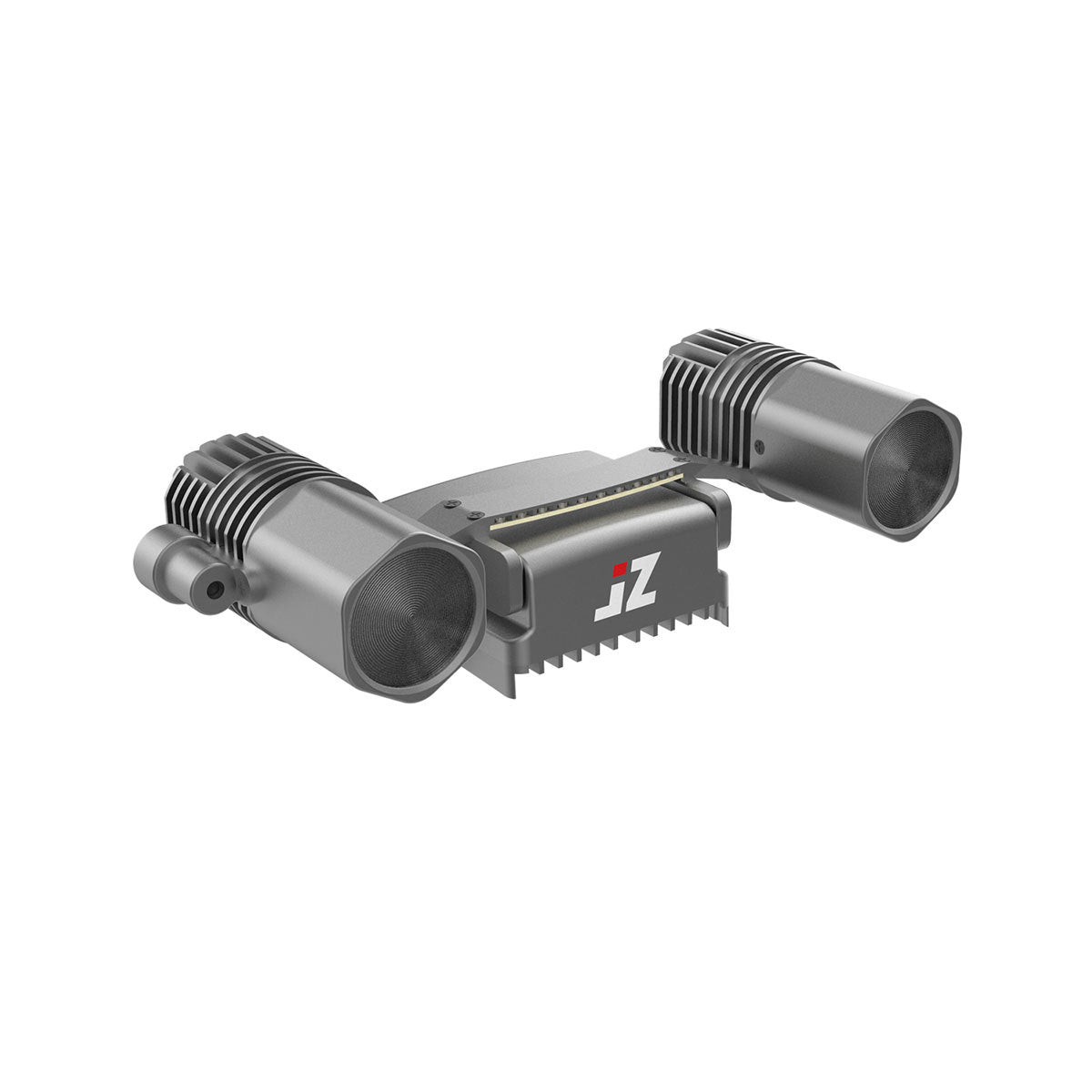

JZ Drones T30 V2 Matrix Lamp for DJI Matrice 4T/4E

JZ Drones T30 V2 Matrix Lamp for DJI Matrice 4T/4E

$899.00
$899.00
Sale Sold out
SKU S-NB-JZ-T30-V2 MPN JZ.SL.0003.01 EAN 6976509040011
  • Powerful 40W lighting ensures strong aerial illumination performance
  • Focused 14° beam enables precise lighting of target areas
  • 24 lux at 50 m supports effective close-range visibility
  • 5 lux at 100 m enables reliable mid-range lighting coverage
  • 2.5 lux at 150 m supports extended-range visibility operations
  • Stabilized gimbal maintains aligned lighting during dynamic flight
  • Adjustable tilt supports 0° to -90° lighting control
  • Pilot 2 control enables real-time brightness adjustments
  • Lightweight 117 g design minimizes impact on flight performance
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

JZ Drones T30 V2 Matrix Lamp for DJI Matrice 4T/4E: Focused Aerial Illumination System for Low-Light Operations

The JZ Drones T30 V2 Matrix Lamp is a DJI SDK-compatible illumination payload designed for reliable aerial lighting in low-light environments using DJI Matrice 4E and Matrice 4T platforms. It delivers 40 W of focused output through a 14° beam, providing up to 24 lux at 50 meters (164.04 ft) for effective scene visibility.

The system integrates with DJI Pilot 2 for real-time brightness adjustment, flash control, and gimbal positioning. With a single-axis stabilized gimbal linked to the camera, it maintains aligned and stable lighting direction during flight, supporting inspection, public safety, and nighttime operations.

Key Features and Benefits

  • 40W output: provides high-intensity illumination for night operations
  • 14° beam angle: delivers focused lighting for targeted area coverage
  • 24 lux at 50 m: supports strong close-range illumination performance
  • 5 lux at 100 m: enables mid-range visibility during aerial operations
  • 2.5 lux at 150 m: supports extended-range lighting performance
  • Single-axis gimbal: stabilizes lighting and aligns with camera movement
  • Gimbal control: supports 0° to -90° adjustable tilt range
  • Pilot 2 integration: enables real-time lighting control and adjustments
  • Flash mode: supports adjustable burst brightness and flash frequency

Applications and Use Cases

  • Search operations: illuminates terrain during nighttime search missions
  • Public safety: provides aerial lighting for emergency response scenarios
  • Inspection work: enhances visibility for infrastructure inspection in darkness
  • Fire response: supports visibility during nighttime firefighting operations
  • Security patrol: enables illumination for surveillance and monitoring tasks
  • Disaster response: improves visibility during rescue and recovery missions

The T30 V2 is designed for operators requiring consistent and controlled aerial illumination across mission types. Its focused beam, stabilized gimbal, and real-time control enable reliable visibility in demanding environments.

When you purchase from Dronefly, you gain a UAV solutions partner focused on long-term operational success. From integration to deployment, Dronefly supports your mission—order the T30 V2 Matrix Lamp from Dronefly today.

General Specifications

  • Electrical interface: DJI SDK
  • Dimensions: 143 × 43.5 × 63.5 mm
  • Weight: 117 g
  • Protection rating: IP4X
  • Max power consumption: 40 W

Compatibility & Installation

  • Compatible aircraft: DJI Matrice 4E, DJI Matrice 4T
  • Installation: screw quick-release mount
  • Gimbal: single-axis stabilized head

Lighting System

  • Lighting method: combined lighting
  • Lighting angle: 14°
  • Green wavelength: 520–525 nm
  • Red wavelength: 620–625 nm
  • Laser indication distance: ≥500 m

Illumination Performance

  • 50 m: 113 m² coverage, 24 lux
  • 100 m: 471 m² coverage, 5 lux
  • 150 m: 1063 m² coverage, 2.5 lux

Environmental Specifications

  • Operating temperature: -10 °C to 50 °C
  • Storage temperature: -20 °C to 60 °C
  • 1x JZ Drones T30 V2 Matrix Lamp for DJI Matrice 4T/4E
  • Warranty
What does the JZ Drones T30 V2 Matrix Lamp do during operations?

The JZ Drones T30 V2 Matrix Lamp provides aerial illumination during low-light or nighttime missions. It allows operators to clearly see the ground or target area. This improves safety and operational effectiveness.

How bright is the JZ Drones T30 V2 Matrix Lamp at different distances?

It provides 24 lux at 50 meters (164.04 ft), 5 lux at 100 meters (328.08 ft), and 2.5 lux at 150 meters (492.12 ft). This supports visibility across short, medium, and longer ranges. Performance depends on environmental conditions.

How is the JZ Drones T30 V2 Matrix Lamp controlled?

The system is controlled through the DJI Pilot 2 app. Operators can adjust brightness, activate flash modes, and control gimbal movement. This allows real-time lighting adjustments during flight.

Does the JZ Drones T30 V2 Matrix Lamp support camera-linked movement?

Yes, the single-axis gimbal can link with the drone’s camera gimbal. This keeps the light aligned with the camera view. It ensures consistent illumination of the target area.

Is the laser feature included with the JZ Drones T30 V2 Matrix Lamp?

The laser indication feature is optional and not included in the standard configuration. When available, it helps mark the center of the illuminated area. This improves targeting accuracy during operations.
