MicaSense RedEdge-P Dual for SkyScout Series

MicaSense RedEdge-P Dual for SkyScout Series

$23,027.00
$23,027.00
Sale Sold out
  • Dual sensors capture 10 simultaneous spectral bands from coastal blue to near-IR
  • Coastal blue band enables shallow water vegetation and weed identification workflows
  • Pan-sharpening achieves 2 cm / 0.8 in per pixel spatial resolution in post-processing
  • Global shutter across all 10 lenses eliminates motion distortion during flight
  • Double radiometric calibration sustains data accuracy across varying light conditions
  • 5.1 MP panchromatic band achieves 3.98 cm GSD at 120 m / 400 ft AGL
  • Synchronized 10-band capture with automatic triggering and image geotagging
  • Multi-index output pipeline generates RGB, NDVI, NDRE, OSAVI, NIT, CIR, and DSM
  • Up to 3 raw DNG images per second for efficient large-area program coverage
  • American-made by AgEagle, compatible with the WISPR SkyScout Series
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

MicaSense RedEdge-P Dual: Dual-Sensor 10-Band Multispectral Payload for Enterprise Vegetation and Environmental Programs on the SkyScout Series

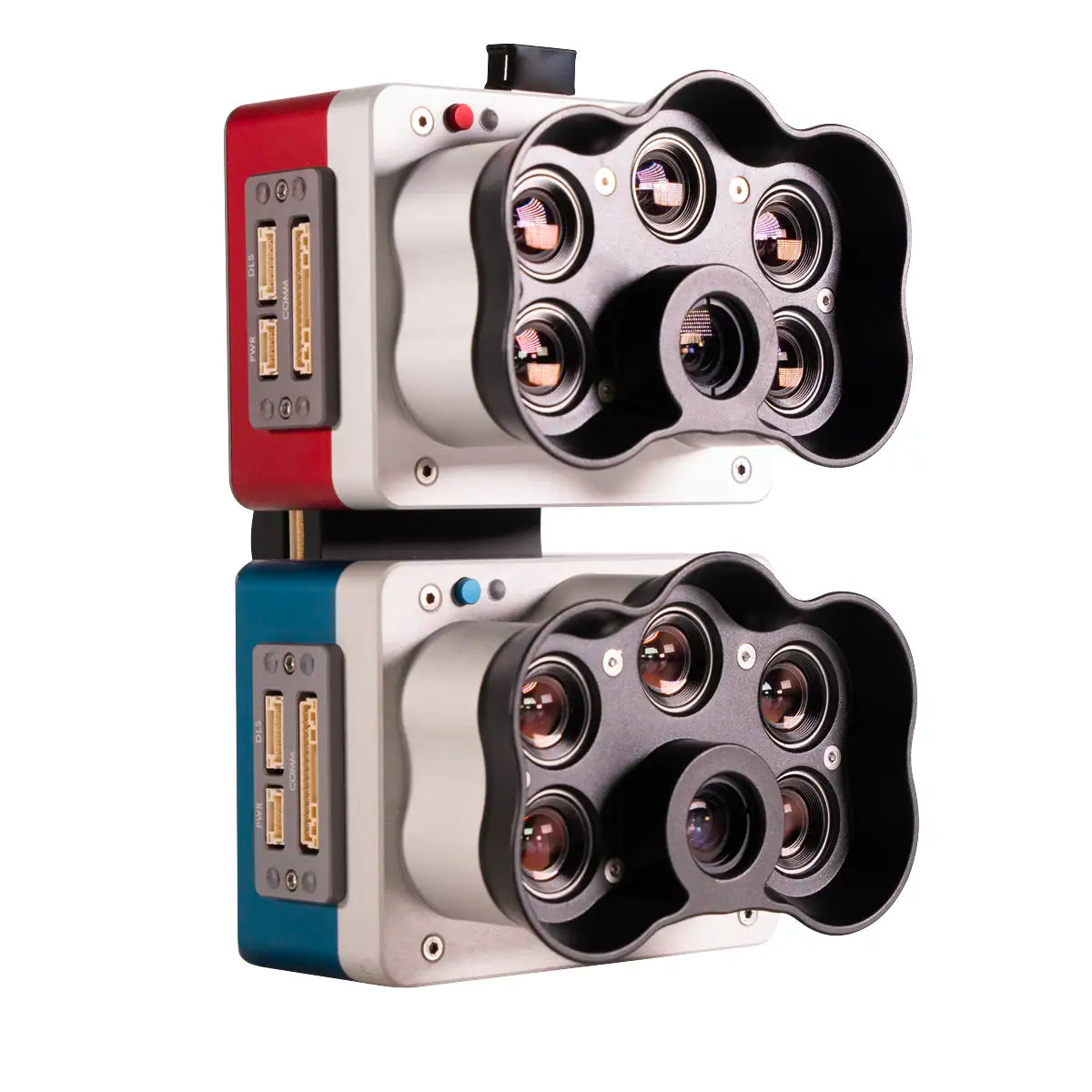

The MicaSense RedEdge-P Dual is a professional dual multispectral sensor system built by AgEagle in the USA, combining the RedEdge-P and RedEdge-P Blue cameras into a unified payload that captures 10 spectral bands simultaneously for enterprise-grade vegetation analysis, environmental monitoring, and precision agriculture programs.

Compatible with the WISPR SkyScout Series, it produces multispectral imagery across the coastal blue through near-infrared spectrum, delivering satellite-comparable spectral datasets at spatial resolutions that ground-based and orbital systems cannot match at operational cost. For fleet operators and program managers requiring reliable, calibrated multispectral data at scale, the RedEdge-P Dual provides the spectral depth and radiometric consistency that research, agriculture, and environmental programs depend on.

The payload captures 1.6 MP per multispectral band at a ground sample distance of 7.7 cm / 3 in per pixel at 120 m / 400 ft AGL, with the 5.1 MP panchromatic band achieving 3.98 cm / 1.5 in per pixel at the same altitude. Pan-sharpening technology brings spatial resolution to 2 cm / 0.8 in per pixel in post-processing.

A global shutter across all 10 lenses eliminates motion distortion during flight, while double radiometric calibration through the DLS2 light sensor and CRP2 reflectance panel maintains data integrity across varying illumination conditions. All 10 bands capture synchronously with automatic triggering and geotagging, reducing flight time requirements and simplifying post-processing across large-area survey programs.

MicaSense RedEdge-P Dual Mission-Ready Capabilities

  • Dual sensor architecture: two cameras deliver 10 simultaneous spectral bands per capture.
  • Coastal blue band: dedicated 444nm channel enables shallow water vegetation and weed analysis.
  • Pan-sharpening output: post-processing achieves 2 cm / 0.8 in per pixel spatial resolution.
  • Global shutter across all 10 lenses: distortion-free capture supports accurate spatial analysis.
  • Double radiometric calibration: DLS2 and CRP2 panel sustain data accuracy across light conditions.
  • Panchromatic resolution: 5.1 MP band achieves 3.98 cm / 1.5 in GSD at 120 m / 400 ft AGL.
  • Synchronized 10-band capture: automatic triggering and geotagging reduce post-processing complexity.
  • Fast capture rate: up to 3 raw DNG images per second supports efficient large-area coverage.
  • Multi-index output pipeline: generates RGB, NDVI, NDRE, OSAVI, NIT, CIR, and DSM data products.
  • American-made: designed and built in the USA by AgEagle for professional program deployment.

The MicaSense RedEdge-P Dual addresses the core requirement of enterprise multispectral programs: consistent, radiometrically accurate 10-band data from a drone platform that integrates into existing SkyScout Series fleet operations.

Its synchronized capture pipeline, double calibration system, and satellite-comparable spectral coverage make it a deployable primary sensor for agriculture, environmental research, water resource management, and habitat monitoring programs that require repeatable, analysis-ready outputs across multiple flights and field conditions.

Dronefly works with enterprise operators to configure SkyScout Series payload programs around sensors that deliver production-ready data, and the MicaSense RedEdge-P Dual is a strong fit for fleets where multispectral data quality and radiometric consistency are program requirements.

The full kit includes both sensors, DLS2 light sensor, CRP2 reflectance panel, and all supporting hardware. An upgrade kit is available for programs that already operate a RedEdge-P sensor. Order now or contact Dronefly to configure your RedEdge-P Dual deployment.

General Specifications

  • Weight: 745 g / 26.2 oz (two sensors, mounting hardware, DLS2, and cable)
  • Dimensions: 13.2 × 8.8 × 9.67 cm (5.1 × 3.1 × 3.5 in)
  • External power: 7.0–25.2 V
  • Power input: 11 W standby, 14 W average, 20 W peak
  • Storage: CFexpress card
  • Operating temperature: 0–40°C (32–104°F) without airflow; 0–50°C (32–122°F) with airflow >0.5 m/s
  • IP rating: IP4X

Spectral Bands

  • 10 multispectral bands: Coastal Blue 444(28), Blue 475(32), Green 531(14), Green 560(27), Red 650(16), Red 668(14), Red Edge 705(10), Red Edge 717(12), Near-IR 740(18), Near-IR 842(57)

Camera

  • RGB output: 5.1 MP (global shutter, aligned with all bands)
  • Sensor resolution: 1456 × 1088 (1.6 MP per multispectral band)
  • Sensor resolution: 2464 × 2056 (5.1 MP panchromatic band)
  • Ground sample distance: 7.7 cm (3 in) per pixel at 120 m AGL (multispectral)
  • Ground sample distance: 3.98 cm (1.5 in) per pixel at 120 m AGL (panchromatic)
  • Pan-sharpened spatial resolution: 2 cm (0.8 in) per pixel
  • Capture rate: Up to 3 raw DNG images per second
  • Field of view: 50° HFOV × 38° VFOV (multispectral)
  • Field of view: 44° HFOV × 38° VFOV (panchromatic)

Interfaces

  • Three configurable GPIO ports (trigger input, PPS input, PPS output, top-of-frame signals)
  • Host virtual button
  • USB 2.0 port for Wi-Fi
  • Serial interface
  • 10/100/1000 Ethernet

Key Features

  • 10 multispectral bands at 1.6 MP each
  • Pan-sharpening technology for 2 cm (0.8 in) spatial resolution
  • Coastal blue band for water vegetation analysis and weed identification
  • Double radiometric calibration with DLS2 light sensor and CRP2 reflectance panel
  • Global shutter on all 10 lenses for distortion-free image capture
  • Narrow spectral bands for enhanced data accuracy
  • Synchronized 10-band image capture with automatic triggering and geotagging
  • 1x RedEdge-P Sensor
  • 1x RedEdge-P Blue Sensor
  • 1x CRP2 Reflectance Panel
  • 1x DLS2 Light Sensor with Integrated GPS
  • 1x USB Wi-Fi Dongle
  • 1x Lens Cover
  • 1x Integration Cables
  • 1x Mounting Hardware
  • 1x 128GB CFexpress Card
  • 1x CFexpress Card Reader
  • 1x Hard Carrying Case
  • 1x Start Guide
What makes the MicaSense RedEdge-P Dual suitable for enterprise fleet programs?

The RedEdge-P Dual captures 10 spectral bands simultaneously across the coastal blue through near-infrared spectrum, with synchronized triggering, automatic geotagging, and double radiometric calibration built into every flight. For enterprise programs requiring repeatable, analysis-ready multispectral data across multiple flights and varying field conditions, the dual calibration system and synchronized 10-band pipeline reduce variability and post-processing complexity at scale.

What spectral bands does the MicaSense RedEdge-P Dual capture and why does it matter?

The system captures 10 bands total: coastal blue at 444nm, blue at 475nm, green at 531nm, green at 560nm, red at 650nm, red at 668nm, red edge at 705nm, red edge at 717nm, near-IR at 740nm, and near-IR at 842nm. The breadth of this coverage enables spectral analysis comparable to Landsat 8 and Sentinel 2A satellite data at significantly higher spatial resolution, supporting applications from chlorophyll efficiency analysis and weed identification to water body vegetation surveys and time-series environmental monitoring.

How does the double radiometric calibration system work in the field?

Radiometric calibration is handled through two components included in the full kit. The DLS2 light sensor monitors ambient illumination continuously throughout each flight, compensating for changes in sun angle and cloud cover in real time. The CRP2 calibration reflectance panel is used on the ground before each flight to establish a baseline calibration reference. Together they ensure that spectral data collected across different flights, days, and lighting conditions remains consistent and comparable for time-series analysis and multi-flight program workflows.

What resolution and ground sample distance does the payload achieve?

Each multispectral band captures at 1456 x 1088 pixels, achieving a ground sample distance of 7.7 cm / 3 in per pixel at 120 m / 400 ft AGL. The 5.1 MP panchromatic band achieves 3.98 cm / 1.5 in per pixel at the same altitude. With pan-sharpening applied in post-processing, spatial resolution reaches 2 cm / 0.8 in per pixel, providing detail far beyond what satellite platforms deliver at operational cost for enterprise programs.

What is included in the full kit and is an upgrade option available?

The full RedEdge-P Dual kit includes the RedEdge-P sensor, RedEdge-P Blue sensor, CRP2 reflectance panel, DLS2 light sensor with integrated GPS, USB Wi-Fi dongle, lens cover, integration cables, mounting hardware, 128 GB CFexpress card, CFexpress card reader, hard carrying case, and start guide. For enterprise programs that already operate a RedEdge-P sensor, an upgrade kit is available that includes the RedEdge-P Blue camera and supporting accessories without the RedEdge-P, CRP2, or DLS2.
