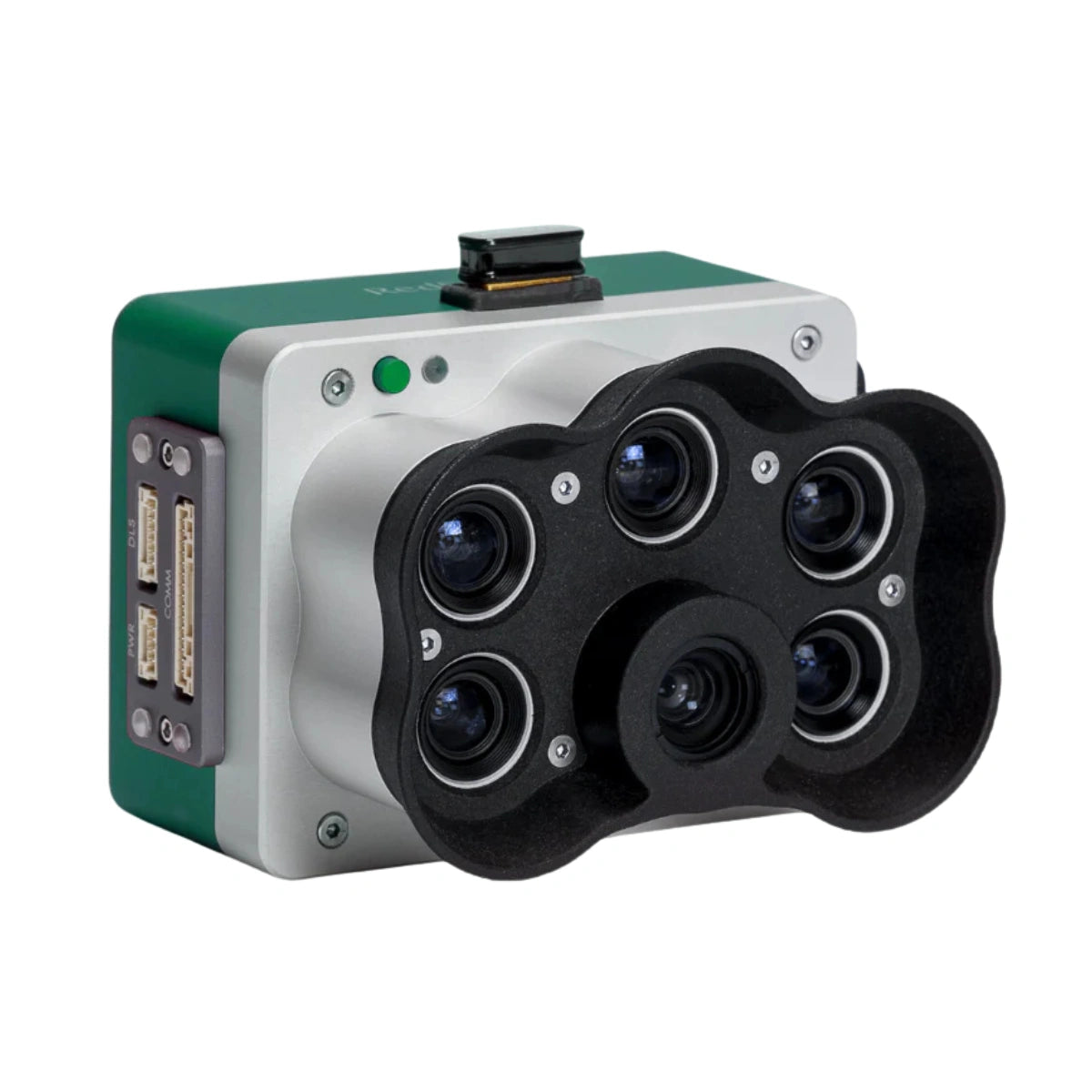

Micasense RedEdge-P Green Multispectral Kit

Micasense RedEdge-P Green Multispectral Kit

$8,495.00
$8,495.00
Sale Sold out
  • Five narrow spectral bands capture detailed plant health information
  • Panchromatic channel supports 2 cm pan-sharpened imaging resolution
  • Three-frame-per-second capture supports large multispectral missions
  • Radiometric calibration ensures stable results across varying light
  • CFexpress storage enables fast data ingestion and processing
  • Global shutter RGB aligns accurately with multispectral channels
  • IP4X design protects optics in rugged environmental conditions
  • Compatible with Matrice 350 and Matrice 400 SkyPort
  • DLS2 light sensor maintains accurate ambient illumination data
  • Carry case protects gear during field deployment and travel
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

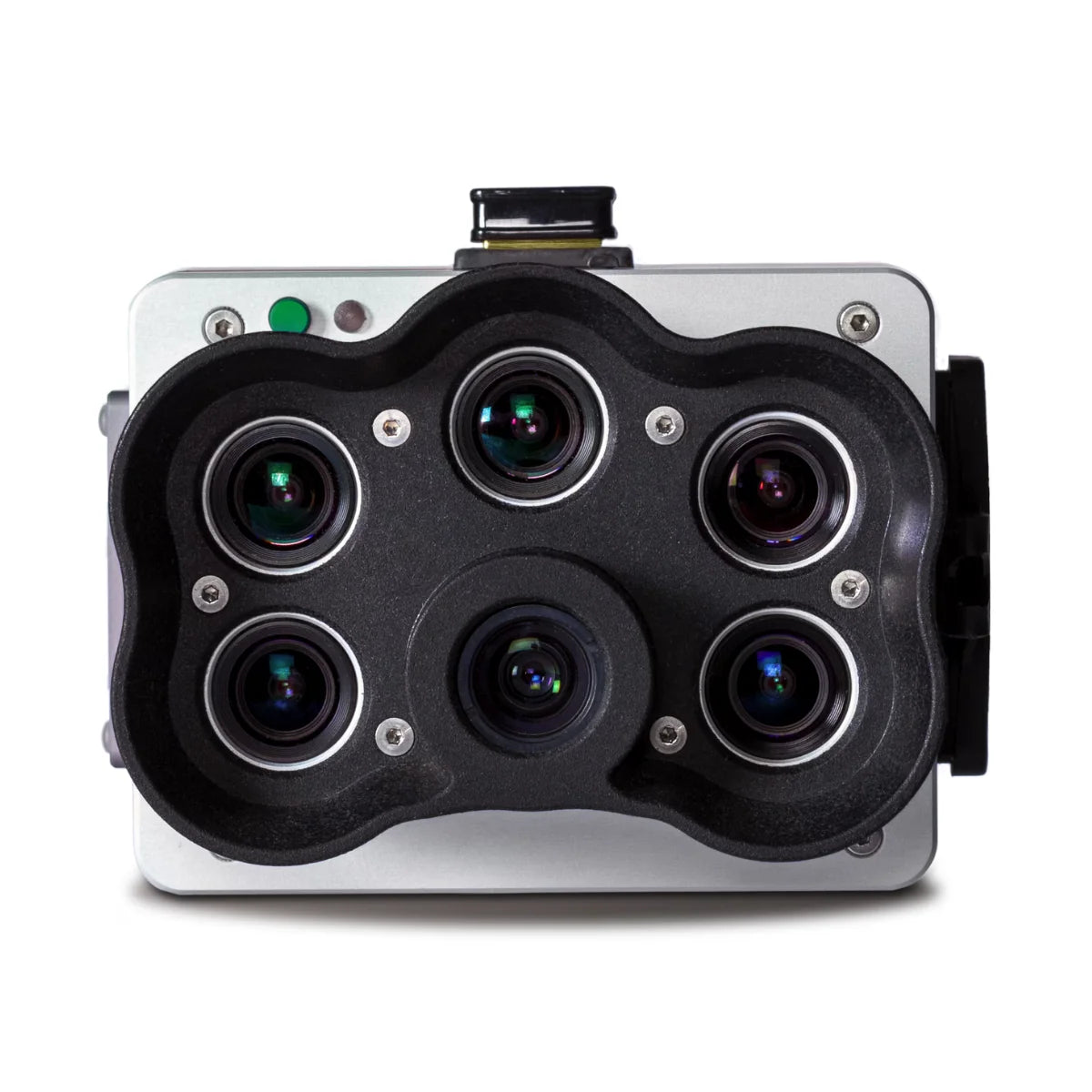

MicaSense RedEdge-P Green Multispectral Kit: Precision multispectral data for environmental and agricultural mapping

The MicaSense RedEdge-P Green Multispectral Kit delivers high-accuracy narrowband imaging for agricultural managers, environmental agencies, and scientific research teams. This complete package includes the RedEdge-P Green sensor, calibration tools, DLS2 light sensor, CFexpress storage, integration cables, and a hardened carrying case.

Designed to work seamlessly with the DJI Matrice 350 and Matrice 400 airframes through the SkyPort adapter, the system provides a stable, reliable platform for advanced multispectral data collection across varied operational environments.

Core features at a glance

  • Five narrow spectral bands: cyan, green, yellow, red, near-infrared.
  • Panchromatic channel: supports 2 cm resolution after pan-sharpening.
  • Three-frame-per-second capture: enables efficient coverage of large sites.
  • Aligned RGB output: global shutter RGB aligned to multispectral channels.
  • 7.7 cm GSD at 120 m: accurate spectral sampling for field assessments.
  • 3.98 cm panchromatic GSD at 120 m: crisp detail for high-resolution mosaics.
  • CRP and DLS calibration: ensures consistent spectral measurements across missions.
  • CFexpress storage: designed for high-speed data ingest and export.
  • IP4X enclosure: protects against dust during agricultural operations.
  • Supports SkyPort integration: compatible with Matrice 350 and Matrice 400.

Narrowband multispectral imaging for advanced vegetation interpretation

The RedEdge-P Green captures five precisely tuned bands—cyan, green, yellow, red, and near-infrared—supporting vegetation species differentiation, plant stress analysis, and water body vegetation mapping. Its synchronized RGB and panchromatic outputs enhance accuracy, while post-processed pan-sharpening delivers up to 2 cm pixel resolution for high-detail mapping.

The included CRP reflectance panel and DLS light sensor enable consistent radiometric performance, ensuring comparability across multi-season or multi-location surveys.

Enterprise-ready workflow integration for complex field missions

Optimized for enterprise deployment, the RedEdge-P Green integrates smoothly with DJI Matrice platforms using the SkyPort adapter for power, triggering, and data synchronization. CFexpress storage supports rapid capture of large datasets, while the global shutter architecture captures sharp imagery during dynamic flight conditions.

With an IP4X enclosure, narrowband optical filters, and a practical set of mounting and transport accessories, the system is designed for reliable performance across agricultural, environmental, and research applications.

System compatibility and data workflow integration

  • Compatible with DJI Matrice 350 RTK using SkyPort adapter.
  • Compatible with DJI Matrice 400 RTK series using SkyPort adapter.
  • Supports Pix4D, Agisoft, and leading spectral analysis platforms.
  • DLS2 provides synchronized light measurement for radiometric consistency.
  • CFexpress workflow supports rapid data processing after large missions.
  • USB Wi-Fi dongle enables sensor setup and device management.
  • Universal DLS2 mount integrates cleanly with DJI payload frameworks.

Field applications and mission scenarios

  • Multi-species vegetation mapping: differentiates plant types and invasive species.
  • Crop vigor evaluation: measures pigment variation and stress indicators.
  • Wetland and near-shore monitoring: assesses aquatic and emergent vegetation.
  • Environmental impact reporting: documents habitat health and land condition.
  • Public water system oversight: supports reservoir and waterway analysis.
  • Restoration site monitoring: tracks habitat rehabilitation over extended periods.
  • Glacier and snowline mapping: assists environmental researchers in rugged areas.
  • Agricultural nutrient assessment: improves resource allocation and efficiency.
  • Regional ecosystem monitoring: supports biodiversity and landscape surveys.
  • High-frequency time-series campaigns: ensures consistency in changing light conditions.

Engineered for enterprise performance

The RedEdge-P Green provides accurate narrowband spectral data built for scalable enterprise workflows. Its precise calibration tools, rapid capture rate, and compatibility with DJI Matrice platforms support demanding field operations where reliability and spectral integrity are essential.

The system’s modular design and 10-band expandability further extend its scientific value in long-term monitoring and applied research.

The MicaSense RedEdge-P Green Multispectral Kit enables teams to collect repeatable, high-resolution vegetation data essential for environmental analysis and agriculture. Its robust construction and advanced optical system make it a dependable asset for professional mapping missions.

Dronefly is the West Coast’s trusted provider of enterprise UAV solutions, offering expert support and integration guidance for advanced sensor deployments. Order from Dronefly today — the West Coast’s trusted enterprise UAV source.

  • Weight: 745 g / 26.2 oz (two sensors, mounting hardware, DLS2, and cable)
  • Dimensions: 13.2 cm × 8.8 cm × 9.67 cm / 5.1 in × 3.1 in × 3.5 in
  • RGB output: 5.1 MP (global shutter, aligned with all bands)
  • Sensor resolution: 1456 × 1088 (1.6 MP per multispectral band)
  • Sensor resolution (panchromatic): 2464 × 2056 (5.1 MP)
  • Ground sample distance: 7.7 cm / 3 in per pixel (multispectral) at 120 m / ~400 ft AGL
  • Ground sample distance (panchromatic): 3.98 cm / 1.5 in per pixel at 120 m / ~400 ft AGL
  • Field of view: 50° HFOV × 38° VFOV (multispectral), 44° HFOV × 38° VFOV (panchromatic)
  • Capture rate: Up to 3 images per second raw DNG
  • Storage: CFexpress card
  • Interfaces: Three configurable GPIO; trigger input; PPS input; PPS output; top-of-frame signals; host virtual button; USB 2.0 for Wi-Fi; serial; 10/100/1000 Ethernet
  • External power: 7.0 V – 25.2 V
  • Power input: 11/14.0/20 W (standby, average, peak)
  • Heat tolerance (no airflow): 0–40° C / 0–104° F
  • Heat tolerance (airflow >0.5 m/s): 0–50° C / 0–122° F
  • IP rating: IP4X
  • Spectral bands (RedEdge-P): Blue 475(32), Green 560(27), Red 668(14), Red Edge 717(12), Near-IR 842(57)
  • Spectral bands (RedEdge-P green): Cyan 502(18), Green 550(12), Yellow 570(14), Red 678(14), Near-IR 754(10)
  • Spectral bands (RedEdge-P blue): Ocean blue 444(28), Green 531(14), Red 650(16), Red Edge 705(10), Red Edge 740(18)
  • 1x MicaSense RedEdge-P Multispectral Sensor Upgrade (Green)
  • 1x CRP Reflectance Panel
  • 1x DLS Light Sensor
  • 1x USB Wi-Fi dongle
  • 1x Lens Cover
  • 1x Integration Cables
  • 1x CFexpress Card
  • 1x CFexpress Card Reader
  • 1x Universal DLS2 Mount
  • 1x Hard Carrying Case
  • 1x User Manual
  • 1x MicaSense 1 Year Limited Warranty
What spectral bands does the MicaSense RedEdge-P Green Multispectral Kit use?

The sensor captures cyan, green, yellow, red, and near-infrared spectral bands for detailed vegetation assessment.

Is the MicaSense RedEdge-P Green compatible with DJI enterprise drones?

Yes. It is compatible with the DJI Matrice 350 RTK and Matrice 400 RTK when used with a SkyPort adapter.

Does the MicaSense RedEdge-P Green include calibration tools?

Yes. The kit includes the CRP reflectance panel and DLS light sensor for consistent radiometric calibration.

How fast can the MicaSense RedEdge-P Green capture images?

It can capture up to three raw DNG frames per second, supporting efficient multispectral mapping.

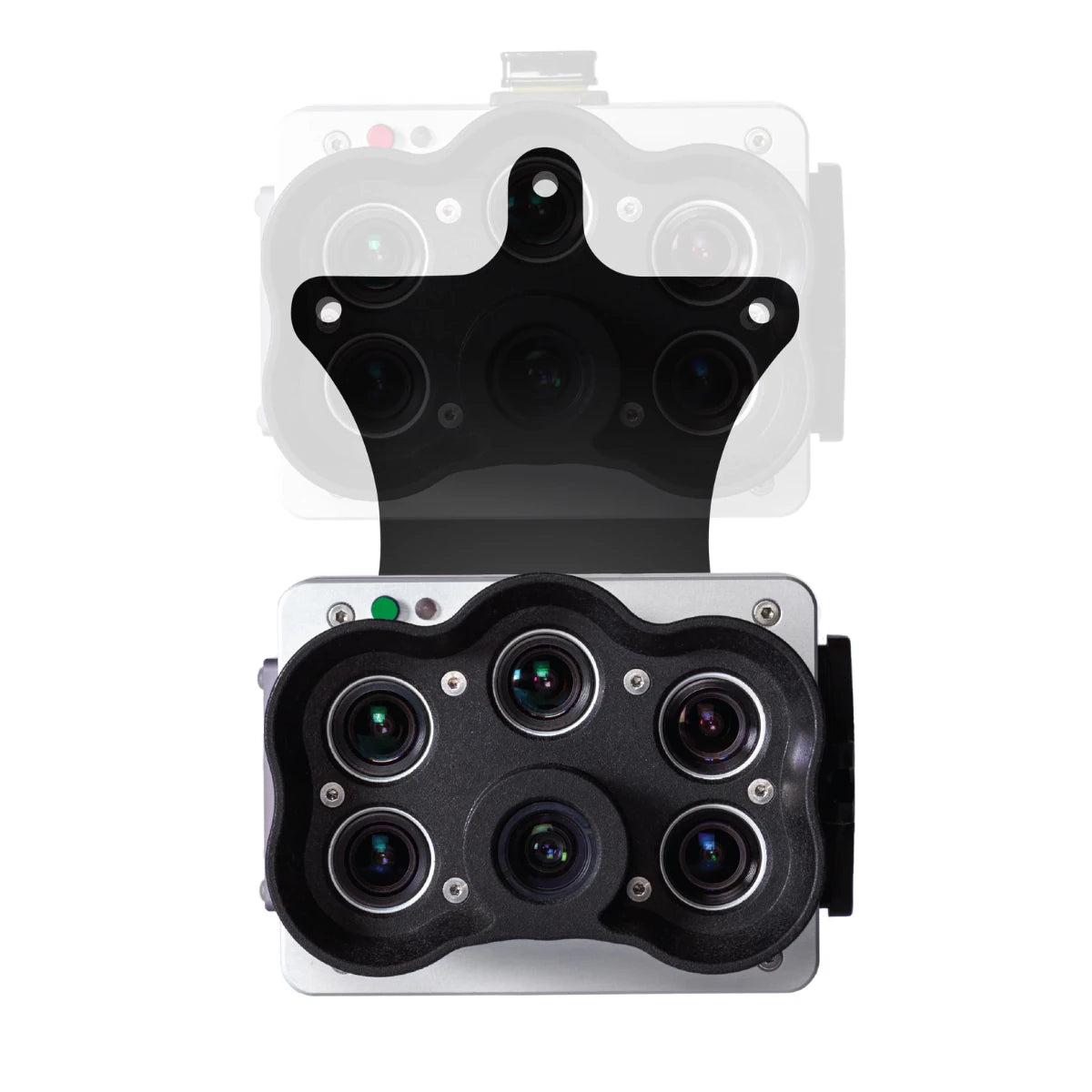

Does the MicaSense RedEdge-P Green support 10-band imaging?

Yes. When paired with an additional RedEdge-P sensor, it enables synchronized 10-band capture.

What accessories come with the MicaSense RedEdge-P Green Multispectral Kit?

The kit includes the sensor, reflectance panel, DLS2, mount, cables, CFexpress card, card reader, Wi-Fi dongle, case, and warranty.
