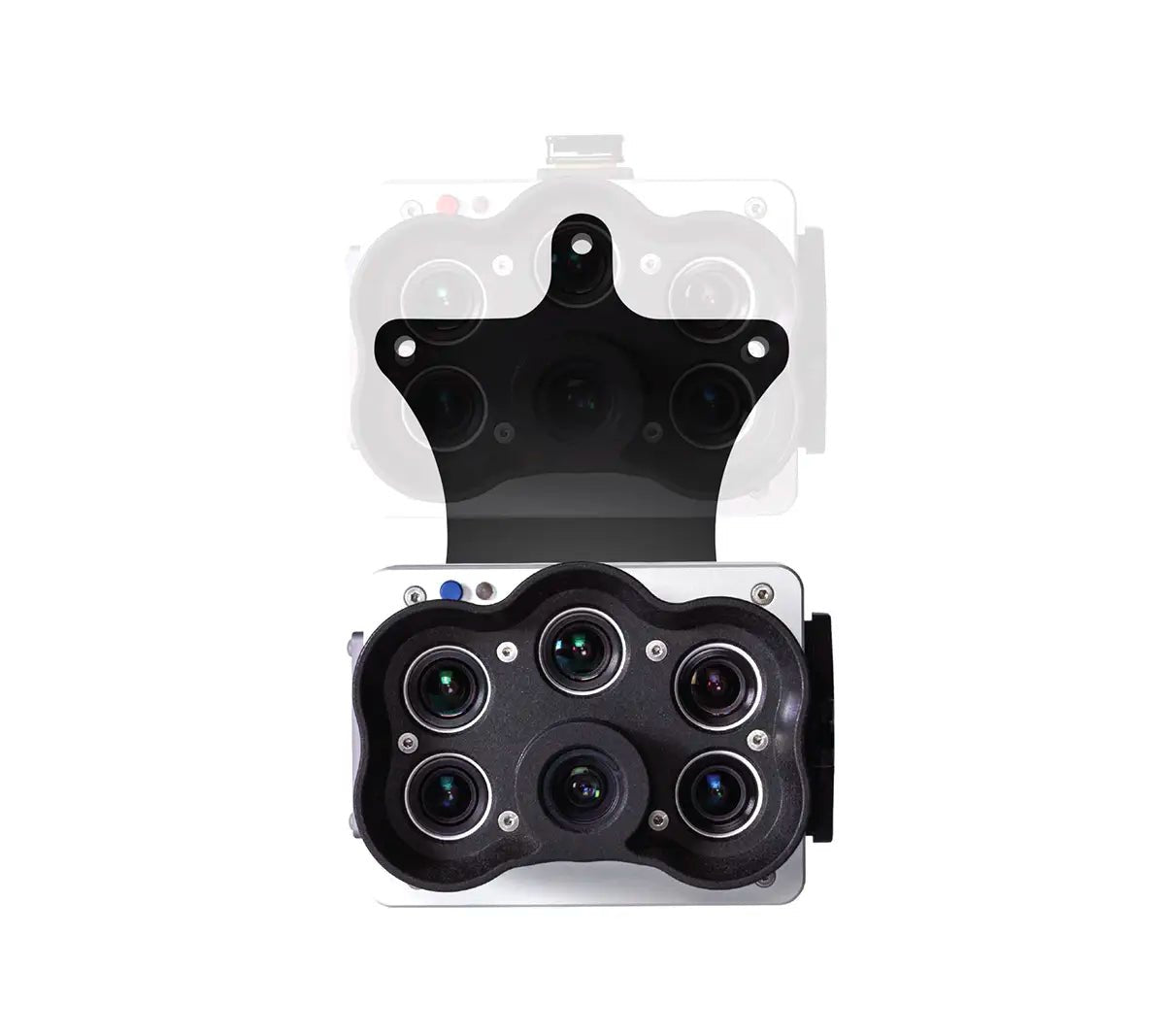

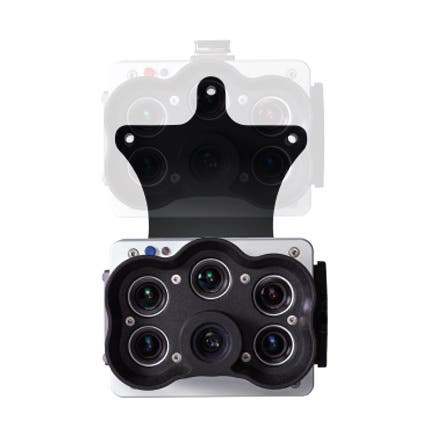

• MicaSense RedEdge-P Dual Multispectral upgrade kit (for current, dual-camera upgrade mounting plate shown above the sensor
1 1

MicaSense RedEdge-P Dual Multispectral upgrade kit (For Current Users of RedEdge-P)

MicaSense RedEdge-P Dual Multispectral upgrade kit (For Current Users of RedEdge-P)

$8,399.00
$8,399.00
Sale Sold out
SKU S-MICA-REP-UP MPN 805-00107
  • Expand RedEdge-P to ten bands with Blue sensor
  • Dual cameras capture all bands in one pass
  • Ocean blue 444 nm band maps aquatic vegetation
  • Pan-sharpened imagery reaches 2 cm (0.8 in) per pixel
  • Global shutter delivers aligned, distortion-free frames every capture
  • Triple red edge coverage reveals early plant stress
  • Raw DNG capture reaches 3 images per second
  • Automatic triggering and geotagging streamline post-processing workflows
  • RTK enabled sensors support georeferenced mapping data
  • Compatible with most professional drone platforms and Pix4D

Request Info / Quote ☎︎ 1 (805) 480-4033

View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

MicaSense RedEdge-P Dual Multispectral Upgrade Kit: Turn a Five-Band RedEdge-P into a 10-Band Survey Platform

The MicaSense RedEdge-P Dual Multispectral Upgrade Kit turns a single RedEdge-P into a 10-band dual-camera system by adding the RedEdge-P Blue sensor, with no need to replace the camera already on your aircraft. Both sensors capture together, so one flight returns coverage from ocean blue through near-IR with every band geotagged.

Satellite data tops out near 10 m (32 ft) per pixel, while pan-sharpening in the dual system reaches 2 cm (0.8 in), a gap that matters for fine-scale vegetation and habitat work. The kit contains the Blue sensor and its accessories only, so the RedEdge-P, DLS2, and CRP2 are not included.

Key Features and Benefits

  • Dual-camera capture: RedEdge-P and Blue sensor record 10 bands together
  • Ocean blue channel: 444 nm band highlights aquatic plants and algae blooms
  • Red edge depth: 705, 717, and 740 nm bands expose plant stress
  • Narrow bandwidths: tighter bands sharpen spectral accuracy across the full range
  • Global shutter: every band records distortion-free and aligned in each frame
  • Capture speed: raw DNG frames at up to 3 per second
  • Pan-sharpened detail: resolution reaches 2 cm (0.8 in) per pixel
  • Radiometric calibration: light sensor and panel keep data consistent across lighting
  • RTK enabled: supports georeferenced mapping data through RTK positioning workflows
  • Workflow fit: compatible with most professional drone platforms and Pix4D

Applications and Use Cases

  • Crop stress scouting: catch chlorophyll and stress changes before they spread
  • Weed mapping: separate crops from weeds to guide targeted treatment
  • Invasive species surveys: flag problem vegetation across wide survey areas
  • AI plant counting: machine learning models count seedlings at early growth stages
  • Land conservation: follow vegetation, soil, and water changes over seasons
  • Shoreline mapping: chart near-shore ecosystems across tidal zones and wetlands
  • Algae bloom detection: spot blooms and aquatic vegetation in water bodies
  • Research programs: collect repeatable multispectral data for environmental and conservation studies
  • Time series studies: compare repeat flights reliably despite changing light

Spectral depth decides which questions a survey can answer, and ten bands cover more of them than five. This kit delivers that depth through one added sensor, so the RedEdge-P already in your program keeps working as the core of the system.

Adding a sensor to a working RedEdge-P setup should not mean starting over, and Dronefly, the premier West Coast UAV dealer, brings years of UAS industry experience to that upgrade. Every kit comes from a dealer that stands behind the integrated solution. Order the MicaSense RedEdge-P Dual Multispectral Upgrade Kit from Dronefly today.

  • Weight: 26.2 oz (745 g), covering two sensors, mounting hardware, DLS2, and cable
  • Dimensions: 13.2 x 8.8 x 9.67 cm (see the flag below on inches)
  • RedEdge-P bands (nm): Blue 475(32), Green 560(27), Red 668(14), Red Edge 717(12), Near-IR 842(57)
  • RedEdge-P Blue bands (nm): Ocean blue 444(28), Green 531(14), Red 650(16), Red Edge 705(10), Red Edge 740(18)
  • RGB output: 5.1 MP, global shutter, aligned with all bands (with appropriate post-processing)
  • Sensor resolution: 1456 x 1088 (1.6 MP) per multispectral band, 2464 x 2056 (5.1 MP) panchromatic band
  • Ground sample distance at 120 m (~400 ft) AGL: 3 in (7.7 cm) per pixel multispectral, 1.5 in (3.98 cm) per pixel panchromatic
  • Field of view: 50° HFOV x 38° VFOV multispectral, 44° HFOV x 38° VFOV panchromatic
  • Capture rate: up to 3 images per second, raw DNG
  • Storage: CFexpress card
  • Interfaces: three configurable GPIO (trigger input, PPS input, PPS output, top of frame signals), host virtual button, USB 2.0 port for Wi-Fi, serial, 10/100/1000 Ethernet
  • External power: 7.0 V to 25.2 V
  • Power input: 11 / 14.0 / 20 W (standby, average, peak)
  • Operating temperature: 32 to 104°F (0 to 40°C) without airflow, 32 to 122°F (0 to 50°C) with airflow above 1.1 mph (0.5 m/s)
  • IP rating: IP4X
  • Note: specifications are subject to change without notice
  • RedEdge-P sensor Blue
  • USB Wi-Fi dongle
  • Lens cover
  • Integration cables
  • Assorted mounting hardware
  • CFexpress card
  • Hard carrying caseStart guide
How does the RedEdge-P Dual differ from a single RedEdge-P?

A single RedEdge-P captures five bands. Adding the RedEdge-P Blue sensor brings the system to 10 bands, all captured together. The Blue sensor contributes Ocean blue 444(28), Green 531(14), Red 650(16), Red Edge 705(10), and Red Edge 740(18), with wavelength in nm and bandwidth in parentheses.

Is a RedEdge-P required for this upgrade?

Yes. This kit is designed for current RedEdge-P users and adds the Blue sensor to the camera you already own. The box holds the RedEdge-P Blue sensor, USB Wi-Fi dongle, lens cover, integration cables, assorted mounting hardware, CFexpress card, hard carrying case, and start guide. The RedEdge-P, DLS2, and CRP2 are not included.

What image resolution does the dual system reach?

Each multispectral band captures 1456 x 1088 pixels (1.6 MP) and reaches 7.7 cm (3 in) per pixel at 120 m (about 400 ft) AGL. Pan-sharpening brings spatial resolution to 2 cm (0.8 in) per pixel, compared with roughly 10 m (32 ft) from Landsat and Sentinel satellites. Specifications are subject to change without notice.

Can a RedEdge-P Green sensor be added later?

Yes, the RedEdge-P series supports an additional RedEdge-P Green sensor for a 15-band setup. The Green sensor is a separate product and is not part of this upgrade kit. It adds Cyan 502(18), Green 550(12), Yellow 570(14), Red 678(14), and Near-IR 754(10).
