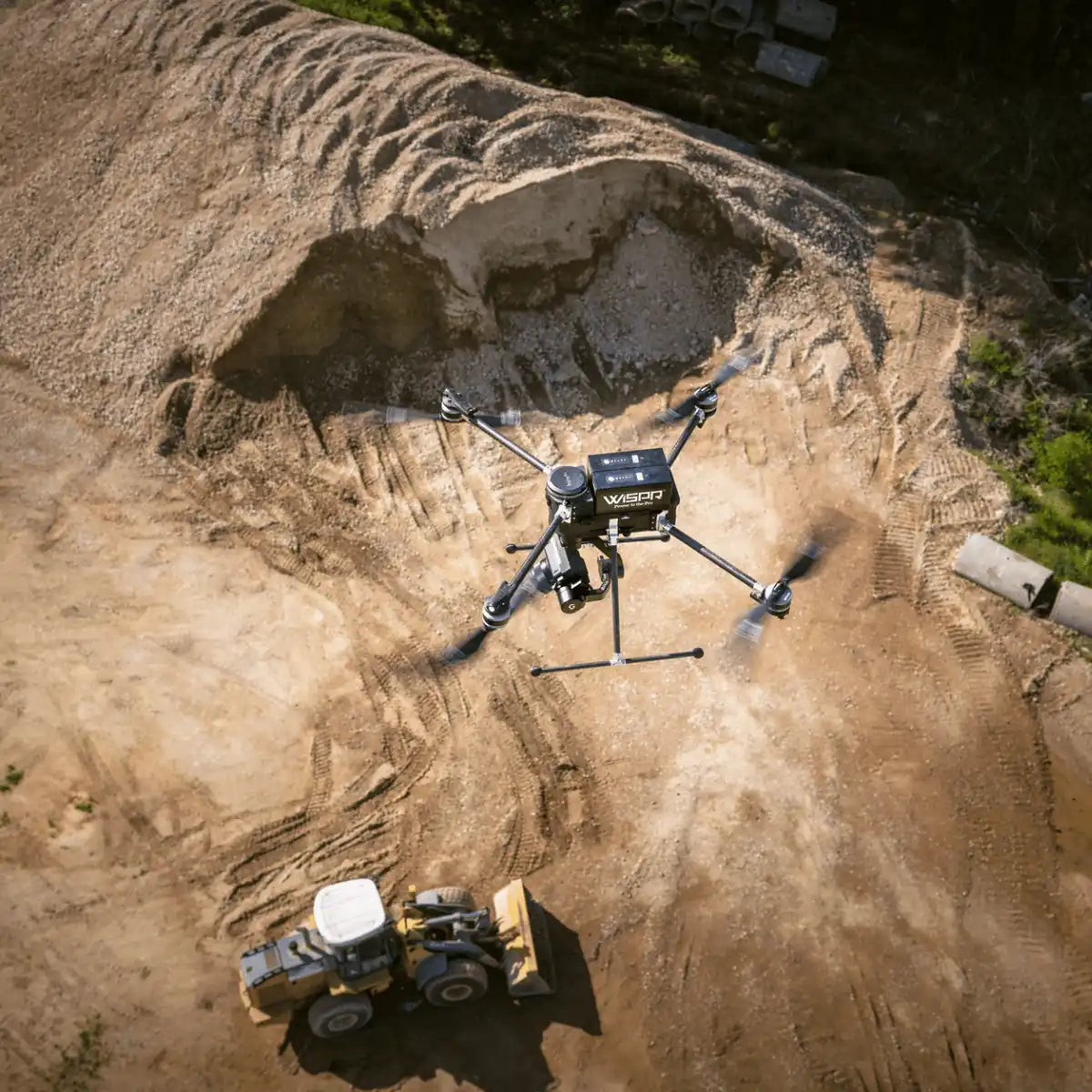

Sony LR1 (61MP) 35mm lens with 200m Laser Rangefinder for SkyScout Series

Sony ILX-LR1 61MP 35mm With 200m Laser Rangefinder: Full-Frame Imaging With Integrated Distance Measurement for the SkyScout Series

The Sony ILX-LR1 61MP 35mm with 200m Laser Rangefinder brings together full-frame aerial imaging and real-time distance measurement in a single gimbal-mounted payload configuration for the WISPR SkyScout Series. The 61-megapixel Exmor R CMOS sensor produces 9504 x 6336 pixel output through a Sony FE Mount 35mm f/2.8 lens at a 62-degree field of view, delivering the resolution and coverage angle enterprise programs require for mapping, inspection, and survey operations. The integrated laser rangefinder extends that capability with aerial distance measurement up to 200m (656 ft), adding a positional data layer that strengthens mission output without requiring additional hardware in the field.

For fleet operators and program managers, the imaging pipeline matches the full ILX-LR1 platform specification. ISO sensitivity runs from 100 to 32000 natively, expandable to 102400 for low-light deployment requirements, with exposure compensation of +/- 5.0 EV in selectable 1/3 or 1/2 EV steps. A dual shutter system provides mechanical speeds from 1/4000 to 30 seconds and electronic speeds from 1/8000 to 30 seconds, covering the full spread of field lighting conditions. Video output reaches 4K at 59.94fps in XAVC S or XAVC HS format, with 1080P available at 119.88fps for high-frame-rate capture requirements. A 3-axis stabilized gimbal with ±0.02° angular vibration tolerance sustains image integrity and rangefinder stability across all flight profiles.

Sony ILX-LR1 61MP 35mm With Rangefinder Mission-Ready Capabilities

• Exmor R full-frame sensor: 1.38-inch CMOS delivers 61-megapixel enterprise imaging output.
• Integrated rangefinder: real-time laser distance measurement up to 200m (656 ft) in flight.
• FE Mount 35mm lens: 62-degree FOV supports efficient area coverage across mapping missions.
• Maximum resolution output: 9504 x 6336 pixel capture anchors high-demand survey deliverables.
• Dual shutter flexibility: mechanical to 1/4000 and electronic to 1/8000 for all conditions.
• Expanded ISO range: sensitivity to 102400 extends deployment viability in low-light environments.
• 4K video pipeline: XAVC S and XAVC HS formats at up to 59.94fps for program-grade capture.
• High-frame-rate option: 1080P at 119.88fps supports slow-motion and detailed analysis workflows.
• Stabilized 3-axis gimbal: ±0.02° vibration tolerance sustains image integrity across flight profiles.
• Thermal operating range: 32°F to 122°F sustains performance across varied deployment environments.

The Sony ILX-LR1 61MP 35mm with 200m Laser Rangefinder consolidates two critical data collection functions into a single SkyScout Series payload. For enterprise programs running inspection, infrastructure survey, or precision mapping operations where both image resolution and aerial distance data are required deliverables, this configuration reduces equipment complexity without compromising output quality on either front.

Dronefly works with enterprise operators to configure SkyScout Series payload setups that match specific program requirements, and the ILX-LR1 61MP 35mm with rangefinder is a strong fit for fleets where imaging and distance measurement need to operate as a unified system. Our team can help you assess fit across the full ILX-LR1 payload lineup and structure your deployment accordingly. Contact Dronefly to get started.
