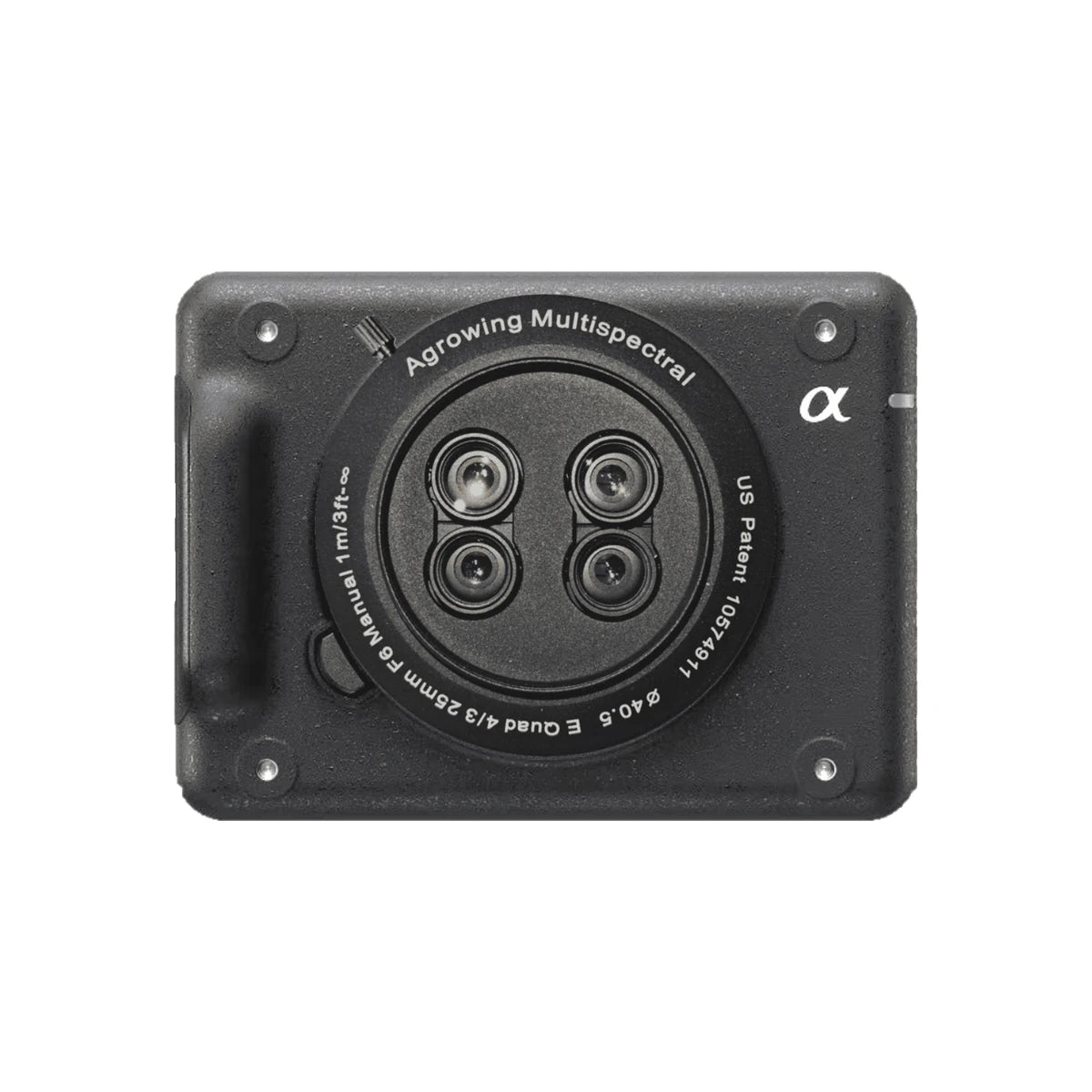

WISPR Sony LR1 Agrowing Quad Lens

Agrowing ILX-LR1: 61MP RGB or 10-Band Multispectral Mapping in One Sensor

One sensor covering two capture modes simplifies a mapping kit considerably, and the Agrowing ILX-LR1 delivers that with 61MP RGB mapping or 10-band multispectral capture at 12MP per band from a single quad-lens body built on a modified Sony ILX-LR1. A 9-band plus wide RGB configuration is also available, giving operators room to match the sensor to the mission without swapping hardware.

Weighing 424 grams total, split between a 243-gram body and a 181-gram multispectral lens, the ILX-LR1 connects through a Full-Frame E-Mount interface for straightforward integration. Manual focus from 0.5 meters to infinity and a 25mm effective focal length give operators precise control whether the project calls for standard RGB output or detailed spectral bands.

Key Features and Benefits

• Dual capture modes: switches between RGB mapping and multispectral bands
• Ten band multispectral: captures 12MP resolution per individual band
• Low distortion: maintains under 1 percent TV distortion accuracy
• Full-Frame E-Mount: connects using a standard camera mounting interface
• Manual focus control: adjusts from 0.5 meters to infinity precisely

Carrying separate RGB and multispectral sensors adds unnecessary weight and complexity to a mapping payload, and the ILX-LR1 consolidates both into one unit. That flexibility supports project work ranging from standard aerial mapping to detailed spectral analysis without changing equipment.

Dronefly stocks the mapping sensors that give precision data collection teams flexible capture options in a single payload. Our specialists can confirm integration details for your specific platform before you check out. Shop the Agrowing ILX-LR1 at Dronefly now.
