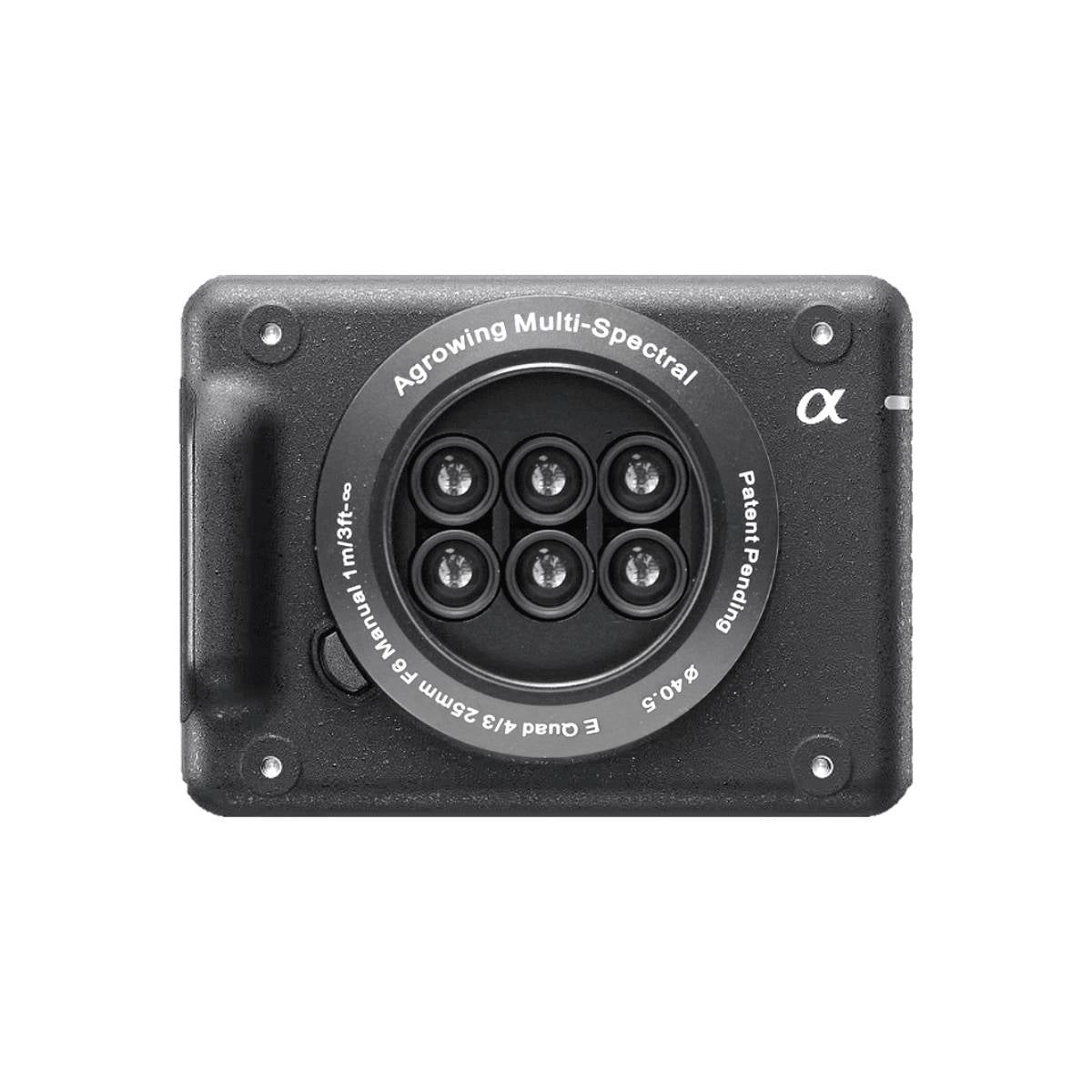

Sony LR1 Agrowing Sextuple Lens

Sony LR1 Agrowing Sextuple Lens

$19,500.00
$19,500.00
Sale Sold out
SKU S-WSP-SONY-LR1-AGROW-6X MPN 2100.005.045
  • 14 multispectral bands captured simultaneously across 405-850nm range
  • Delivers 7.2MP per spectral band for high-detail vegetation data
  • Converts to 61MP RGB mapping mode with included IR-Cut filter
  • Sextuple lens mounts directly to modified Sony ILX-LR1 body
  • Wide 40.8-degree diagonal FOV covers large survey areas
  • Fixed F5.6 aperture maintains calibrated exposure
  • Compact 424g total weight fits professional UAV payload requirements
  • Manual focus from 0.5m to infinity suits varied operational altitudes
  • Included IR-Cut 615nm filter supports standard RGB lens compatibility
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Dual-Purpose 14-Band Multispectral and 61MP RGB Sensor for UAV Fleets

The Agrowing Lightweight Sextuple for the Sony ILX-LR1 is a full-frame multispectral sensor platform engineered for enterprise UAV integration. Built around a modified Sony ILX-LR1 body with a Full-Frame E-Mount sextuple lens, it delivers 14 simultaneous spectral bands at 7.2MP per band across a 405nm to 850nm wavelength range.

Organizations deploying multi-sensor fleets gain a single payload capable of generating the spectral data needed for vegetation mapping, plant stress detection, and precision agriculture analytics at scale.

Agrowing Sextuple Mission-Ready Platform Capabilities

  • Spectral bands: 14 simultaneous channels span 405nm to 850nm for complete crop analysis.
  • Per-band resolution: 7.2MP per band after demosaicing, alignment, and sensor cropping.
  • RGB mapping mode: 61MP full-frame output activated via included clip-in IR-Cut 615nm filter.
  • Sensor mount: Full-Frame E-Mount integrates directly with modified Sony ILX-LR1 bodies.
  • Effective focal length: 21.8mm supports consistent area coverage across varied flight altitudes.
  • Spectral bandwidth: 30nm-wide band isolation delivers precise per-channel spectral separation.
  • Aperture: fixed F5.6 with manual focus from 0.5m to infinity for repeatable flight data.
  • Field of view: 40.8-degree diagonal horizontal 33.0 and vertical 25.0 degrees per pass.
  • System weight: 424 gr total platform weight supports integration into professional UAV payloads.
  • Relative illumination: 60% across the frame maintains uniform data quality at image edges.

Dual-Purpose RGB and Multispectral Operations

What separates this platform from single-purpose sensors is its built-in RGB mapping capability. By inserting the included clip-in IR-Cut 615nm filter, operators convert the system to a 61MP full-frame mapping camera without changing bodies or lenses.

Fleet managers overseeing mixed-mission operations can assign this sensor to both multispectral survey passes and high-resolution orthomosaic deliverables, consolidating payload inventory and reducing per-mission equipment overhead.

Optimized for Enterprise UAV Fleets

The Agrowing Sextuple for the Sony ILX-LR1 resolves a persistent challenge in enterprise UAV operations: justifying the cost and complexity of carrying separate sensors for spectral and RGB missions.

With 14 calibrated spectral bands and a 61MP RGB fallback in one payload, fleet operators can assign this sensor across a wider range of mission types without restructuring their aircraft loadout or procurement strategy.

Dronefly works with organizations building serious UAV data programs, and the Agrowing Sextuple for the Sony ILX-LR1 fits directly into that category of mission-critical payloads. Configure your Sony LR1 Agrowing Sextuple Lens solution today through Dronefly and deploy a sensor platform built for professional results.

  • Type: Sextuple lens single mount
  • Multi spectral chroma bands: 405; 430; 450; 490; 525; 550; 560; 570; 630; 650; 685; 710; 735; 850nm, 30nm wide, customized for best performance
  • Effective focal length: 21.8mm
  • Focus type and range: Manual, 0.5m to infinity
  • Total sensor weight including lens: 424gr (243 + 181)
  • Field of view: Diagonal 40.8, Horizontal 33.0, Vertical 25.0
  • TV distortion: less than 2%
  • Relative illumination: 60%
  • F-Stop: 5.6
  • Lens dimension (ØxL): 64.5 x 35mm
  • 1x Sony LR1 Agrowing Sextuple Lens
What is the Sony LR1 Agrowing Sextuple Lens and what is it used for?

The Agrowing Sextuple for the Sony ILX-LR1 is a sextuple lens single-mount multispectral camera system designed for UAV deployment. It captures 14 spectral bands simultaneously at 7.2MP per band, covering wavelengths from 405nm to 850nm. Primary applications include precision agriculture, vegetation stress analysis, environmental monitoring, and scientific remote sensing. The system also supports 61MP RGB mapping missions via an included clip-in IR-Cut 615nm filter.

What spectral bands does the Agrowing Sextuple capture?

The Agrowing Sextuple captures 14 spectral bands at 30nm bandwidth each. The band center wavelengths are 405, 430, 450, 490, 525, 550, 560, 570, 630, 650, 685, 710, 735, and 850nm. This range covers key indices including NDVI, red edge, and near-infrared bands used in vegetation health and plant stress analysis. Bands are customized for best performance across the full spectral range.

Is the Agrowing Sextuple compatible with the standard Sony ILX-LR1?

The Agrowing Sextuple is designed for a modified Sony ILX-LR1 body. It uses a Full-Frame E-Mount and is not intended for use with an unmodified consumer ILX-LR1. When fitted with the included clip-in IR-Cut 615nm filter, the system is also compatible with any Sony Full-Frame E-Mount compatible lens for standard RGB capture.

What is the total weight of the Agrowing Sextuple system on the Sony ILX-LR1?

The total sensor weight, including the lens and ILX-LR1 body, is 424 gr (243 gr body plus lens). This compact weight profile is designed to keep the payload within the operational limits of professional-grade UAV platforms commonly used in agricultural and research missions.

What is the field of view and focal length of the Agrowing Sextuple?

The Agrowing Sextuple has an effective focal length of 21.8mm and a field of view measuring 40.8 degrees diagonal, 33.0 degrees horizontal, and 25.0 degrees vertical. This wide-angle coverage supports efficient area mapping in fewer flight passes. The fixed F5.6 aperture and manual focus range from 0.5m to infinity provide consistent optical performance across varying flight altitudes.
