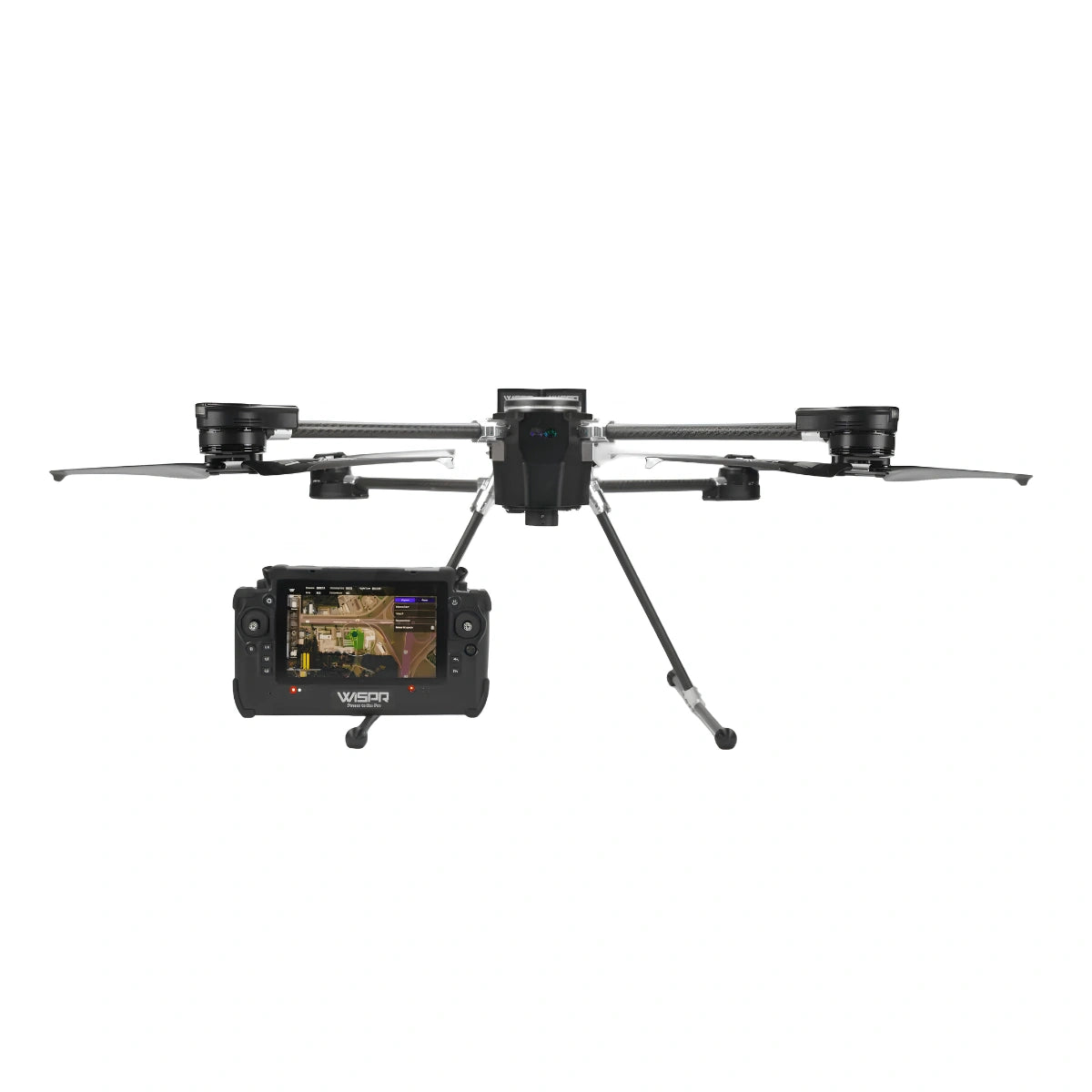

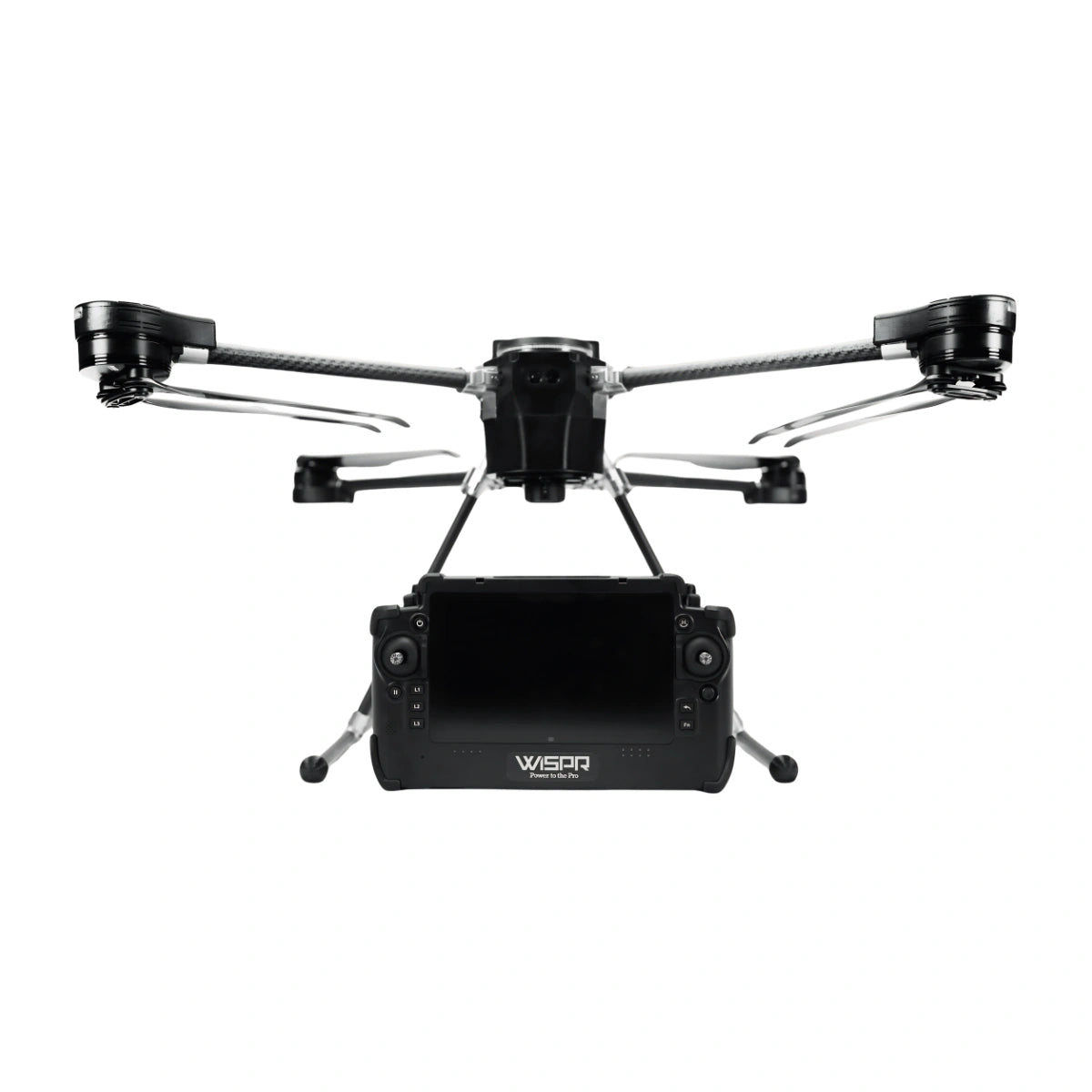

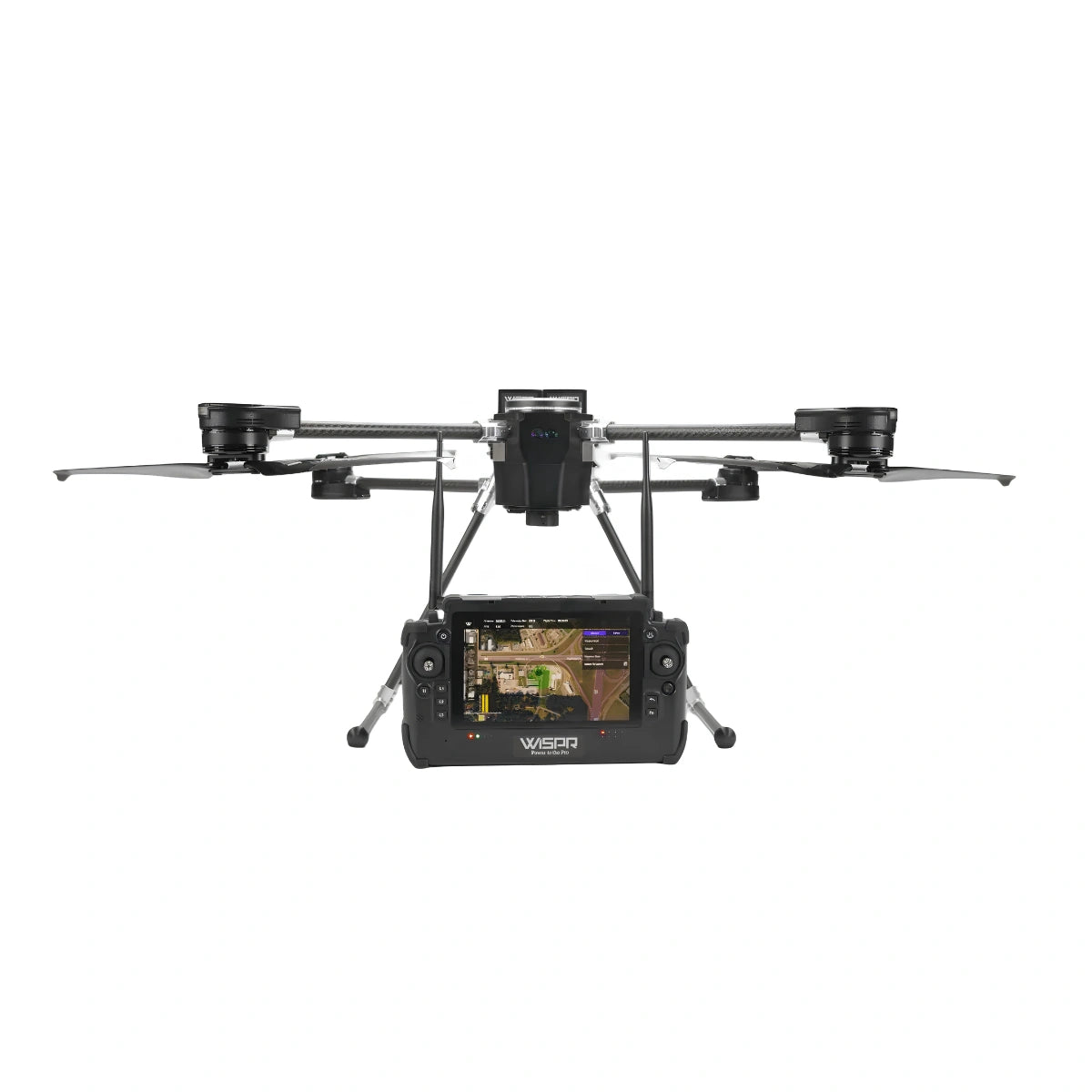

WISPR SkyScout 2+ with SkyBoss Smart Controller

WISPR SkyScout 2+ with SkyBoss Smart Controller

$30,564.00
$30,564.00
Sale Sold out
SKU S-WSP-SS2P-SB MPN 2000.210.018
  • American-made quadcopter with NDAA, Blue UAS, and Green UAS credentials
  • SkyBoss Smart Controller included with MIL-STD-810 and IP55 rating
  • RTK standard via CubePilot HerePro GNSS with centimeter-level accuracy
  • LiDAR TOF sensors for front, rear, and downward collision avoidance
  • FAA Remote ID pre-installed and pre-configured before leaving the factory
  • Hot-swappable dual 4350mAh LiPo smart batteries rated for 240 charge cycles
  • TempGuard climate control for operations from -4°F to 122°F
  • S-Port Quick-Attach system supports twelve compatible payload options
  • PPK post-processing available via WISPR Cloud Subscription upgrade
  • Complete package includes case, 110V charger, landing gear, and both batteries
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

WISPR SkyScout 2+ with SkyBoss Smart Controller: Blue UAS Cleared, NDAA-Compliant Drone with RTK/PPK Accuracy

The WISPR Systems SkyScout 2+ with SkyBoss Smart Controller is a fully integrated, American-made quadcopter platform built for fleet operators and enterprise programs that cannot compromise on positioning accuracy or regulatory compliance. NDAA-compliant, DCMA Blue UAS cleared, and Green UAS approved, the SkyScout 2+ enters procurement-ready into government, DoD, and enterprise workflows without the qualification overhead that non-listed platforms require.

RTK positioning via the CubePilot HerePro GNSS module is standard, with PPK capability available through a WISPR Cloud Subscription for programs that require post-processed geotag accuracy. A pre-installed, pre-configured FAA Remote ID module ships with every unit, eliminating that compliance step before first deployment.

SkyScout 2+ Key Features and Benefits

  • HerePro GNSS: CubePilot module with u-blox ZED-F9P core delivers centimeter-level RTK accuracy.
  • SkyBoss controller: Android 10 ruggedized 7" display with AES256 encryption and 8 km range.
  • LiDAR TOF sensors: Front, rear, and downward sensors enable collision avoidance and precision auto-landing.
  • Dual smart batteries: Hot-swappable 4350mAh LiPo cells rated for 240 cycles at 70°F.
  • TempGuard system: Active and passive climate control sustains performance from -4°F to 122°F.
  • Mission resume: Low-battery RTL triggers automatically; mission continues from last waypoint after hot-swap.
  • Remote ID built-in: FAA-compliant module pre-installed and pre-configured before leaving the factory.
  • TerrainSense LiDAR: Downward TOF sensor maintains precise altitude for low-altitude mission profiles.
  • S-Port Quick-Attach: Tool-free payload swaps enable rapid reconfiguration across twelve compatible payloads.
  • Compliance trifecta: NDAA-compliant, Blue UAS cleared, and Green UAS approved for enterprise procurement.

The SkyScout 2+ is engineered for operational continuity across multi-mission deployments. The SkyBoss Smart Controller—a ruggedized 7" 2000-nit display running Android 10, with dedicated gimbal tilt and yaw roll wheels, video and photo hardware triggers, IP55 weather resistance, MIL-STD-810 drop certification, and AES256-encrypted transmission up to 8 km (5 miles) on 2.4/5.8 GHz—gives program managers a command interface that holds up in the field as reliably as the aircraft itself.

Hot-swappable dual smart batteries eliminate turnaround downtime, the S-Port Quick-Attach system enables rapid payload reconfiguration between mission types, and TempGuard Dynamic Climate Control keeps the platform operational from -4°F to 122°F. The complete system—aircraft, controller, batteries, 110V charger, propellers, landing gear, and a rolling transit case capable of holding two full battery pairs—deploys in under three minutes.

A Complete Command Platform Built for Enterprise Programs

Fleet integrators and program managers require more than a capable airframe — they need a system that performs consistently across operators, environments, and mission profiles without constant reconfiguration.

The SkyScout 2+ delivers that through a tightly integrated hardware and software stack: the Cube Orange+ flight controller running WISPR's custom ArduPilot firmware, the CubePilot HerePro GNSS tracking GPS, Galileo, GLONASS, and BeiDou across L1, L2, and E5 bands, and the SkyBoss Smart Controller transmitting 1080p 30fps video up to 8 km (5 miles) on dual 2.4/5.8 GHz frequencies with AES256 encryption.

RTK fix is typically acquired in under 30 seconds after connecting to an NTRIP network, and PPK rover files are pulled directly from the drone's USB-C port for post-processing workflows. The SkyBoss itself runs on a 1 fixed plus 1 hot-swappable internal battery configuration rated for 4 or more hours of continuous operation, and on a low-battery failsafe the aircraft automatically returns to launch and resumes from the last mission waypoint after a battery hot-swap—keeping high-tempo operations moving without full restarts.

Compatibility and System Integration

  • SkyBoss Smart Controller: Included; Android 10 ruggedized 7" display, AES256 encryption, 8 km (5 miles) range.
  • CubePilot HerePro GNSS: Integrated u-blox ZED-F9P supports NTRIP and RTCM RTK correction services.
  • WISPR Ground Control: Native software platform for flight operations and mission planning.
  • WISPR Cloud: PPK post-processing and fleet mission data management via subscription (sold separately).
  • Sony LR1 (formerly ILX-LR1): 61MP full-frame mapping camera mountable via S-Port Quick-Attach (sold separately).
  • WISPR 24MP Mapper: High-resolution photogrammetry camera for aerial survey programs (sold separately).
  • Gremsy Vio: Gimbal payload compatible via S-Port Quick-Attach system (sold separately).
  • Gremsy Zio: Gimbal payload compatible via S-Port Quick-Attach system (sold separately).
  • RESEPI Lite M2X LiDAR: Multi-sensor LiDAR payload compatible via S-Port and GNSS antenna mount (sold separately).
  • RESEPI Livox LiDAR: LiDAR scanning payload compatible via S-Port and dedicated GNSS antenna mount (sold separately).
  • RESEPI Ultra Lite (XT-32) LiDAR: High-density LiDAR payload supported with extra GNSS antenna mount (sold separately).
  • GeoCue TrueView LiDAR: Professional LiDAR payload compatible via S-Port and GNSS antenna mount (sold separately).
  • GeoCue T1 LiDAR: LiDAR payload compatible via S-Port Quick-Attach and dedicated GNSS antenna mount (sold separately).
  • YellowScan Mapper+ LiDAR: Mapping LiDAR payload compatible via S-Port and GNSS antenna mount (sold separately).
  • YellowScan Surveyor Ultra LiDAR: Survey-grade LiDAR payload supported via S-Port Quick-Attach system (sold separately).
  • Methane Detector: Gas detection sensor compatible for industrial inspection and leak survey programs (sold separately).

Applications and Use Cases

  • Enterprise surveying programs: RTK/PPK accuracy supports repeatable, deliverable-grade topographic data collection.
  • Government and DoD procurement: Blue UAS clearance and NDAA compliance satisfy federal acquisition requirements.
  • Fleet inspection operations: LiDAR TOF obstacle detection and terrain follow enable consistent infrastructure assessment.
  • Public safety deployment: Sub-3-minute setup and pre-configured Remote ID support time-critical field response.
  • Construction program management: PPK accuracy and repeatable flight paths document site progress at scale.
  • LiDAR and 3D modeling programs: Dedicated GNSS antenna mount and twelve compatible payloads support advanced scanning.
  • Multi-environment operations: TempGuard climate control sustains performance across desert, arctic, and coastal conditions.

The SkyScout 2+ with SkyBoss Smart Controller is built for programs that need a verified, compliant, and consistently deployable platform across operators and mission types. Its integrated hardware stack, triple compliance credentials, pre-configured Remote ID, and carry-on-ready transit case make it one of the most operationally complete American-made UAS platforms available for enterprise procurement today.

Dronefly partners with WISPR Systems to bring the SkyScout 2+ with SkyBoss Smart Controller to fleet integrators and enterprise programs that demand compliance-ready, survey-grade performance.

If you're building or expanding a UAS program around a proven American-made platform, contact Dronefly to configure your deployment.

Aircraft

  • Maximum sustainable payload: 3.85 lbs.
  • Max flight time to battery failsafe (no payload): 35 minutes
  • Max flight time to battery failsafe (2.2 lb payload): 30 minutes (±2 minutes)
  • Max wind rating: 50 MPH
  • Collision avoidance: Front, backward, and downward
  • Terrain follow source: GNSS (high altitude) or LiDAR range finder (low altitude)
  • Folded dimensions: 4.5" × 10" × 17"
  • Fully assembled dimensions: 14" × 24" × 24"
  • Diagonal wheelbase: 32.5" (props folded), 49" (props unfolded)
  • Battery configuration: 2 × WISPR Smart Batteries
  • Weight: 5.5 lbs.
  • Maximum takeoff weight: 12.2 lbs.
  • Maximum speed: 50 MPH
  • Operating temperature: -4°F to 122°F
  • Propeller size: 18.2" × 5.9"
  • Orientation LED light covers: Red (rear), White (front)
  • Flight controller: Cube Orange+
  • I/O ports: MicroUSB (flight controller access) and USB-C (GPS logs storage)
  • Additional mounting: Extra GNSS antenna mount for LiDAR payloads
  • Frame type: Quadcopter
  • Made in America: Yes

GNSS

  • GNSS receiver: u-blox ZED-F9P
  • RTK compatible: Yes, via NTRIP or other RTCM services
  • PPK compatible: Yes, with WISPR Cloud subscription
  • GNSS bands: L1, L2, and E5
  • GNSS constellations: GPS, Galileo, GLONASS, and BeiDou
  • IMU: Built-in 9-axis IMU

Smart Controller

  • Controller: WISPR Smart Controller
  • Display: 7" LCD screen
  • Roll wheel options: Dual roll wheels
  • Video transmission: 1080p at 30 fps
  • IP rating: IP55
  • Drop test: Passed MIL-STD-810 drop test
  • Brightness: 2000 nits
  • Frequency: 2.4 GHz and 5 GHz
  • Range: 5 miles
  • Antennas: 4 × antennas
  • Transmission encryption: AES-256

Smart Batteries

  • Voltage: 22.8 V
  • Capacity: 4350 mAh (99.18 Wh)
  • Battery weight: 1.4 lbs. (630 g ±20 g)
  • Charging time: 45 minutes

Software

  • Flight controller firmware: WISPR Flight Firmware (custom ArduPilot build)
  • Ground control software: WISPR Ground Control
  • Mission planning software: WISPR Ground Control and WISPR Cloud

Case

  • Weight: 17.6 lbs.
  • Weight fully loaded: 37 lbs.
  • Exterior dimensions: 32.4" × 18.5" × 10.85" (L × W × D)
  • Exterior cubic volume: 3.75 cu. ft.
  • Additional exterior attachments: Roll wheels and handle
  • 1x WISPR SkyScout 2+ aircraft
  • 1x WISPR SkyBoss Smart Controller
  • 2x WISPR 4350mAh Smart Batteries
  • 1x WISPR 110V battery charger
  • 1x Set of 18.2" x 5.9" folding propellers (pre-installed)
  • 1x Landing gear
  • 1x Heavy-duty rolling transit case
What is included in the WISPR SkyScout 2+ Premium Package?

The SkyScout 2+ Premium Package includes the SkyScout 2+ aircraft, the SkyBoss Smart Controller with its hot-swappable internal battery, two WISPR 4350mAh Smart Batteries, a WISPR 110V battery charger, a pre-installed set of 18.2" x 5.9" folding propellers, landing gear, and a heavy-duty rolling transit case capable of accommodating up to two full battery pairs. Both drone batteries must be within 5% charge of each other and fully installed to fly. Sensor payloads and the WISPR Cloud Subscription are sold separately.

Is the SkyScout 2+ approved for government and DoD procurement programs?

Yes. The SkyScout 2+ is American-made, NDAA-compliant, cleared on the DCMA Blue UAS list, and approved under the Green UAS program, making it procurement-ready for federal, DoD, and enterprise acquisition programs that require compliant unmanned aircraft. It ships with a pre-installed, pre-configured FAA Remote ID module, and is among a small number of platforms to carry all three compliance designations concurrently, reducing qualification overhead for program managers.

How does RTK differ from PPK on the SkyScout 2+, and which does my program need?

RTK (Real-Time Kinematic) is included standard and provides centimeter-level positioning in real time during flight, including live image tagging. RTK fix is typically acquired in under 30 seconds after connecting to an NTRIP network. PPK (Post-Processed Kinematic) is available as an upgrade via WISPR Cloud Subscription and applies geotag corrections during post-processing using RINEX rover files retrieved from the drone's USB-C port. RTK suits most operational workflows; PPK is recommended for survey deliverables with strict accuracy documentation requirements.

What makes the SkyBoss Smart Controller suited for enterprise field operations?

The SkyBoss Smart Controller runs Android 10 on a 7" LCD display rated at 2000 nits for full sunlight visibility, with an IP55 weather resistance rating and MIL-STD-810 drop test certification. It transmits up to 8 km (5 miles) on 2.4/5.8 GHz frequencies with automatic 16-channel hopping and AES256 hardware-level encryption. Dedicated gimbal tilt and yaw roll wheels, hardware video and photo triggers, and a hot-swappable internal battery rated for 4 or more hours give fleet operators a purpose-built ground control station for sustained multi-mission use.

What payloads can be integrated into a SkyScout 2+ fleet deployment?

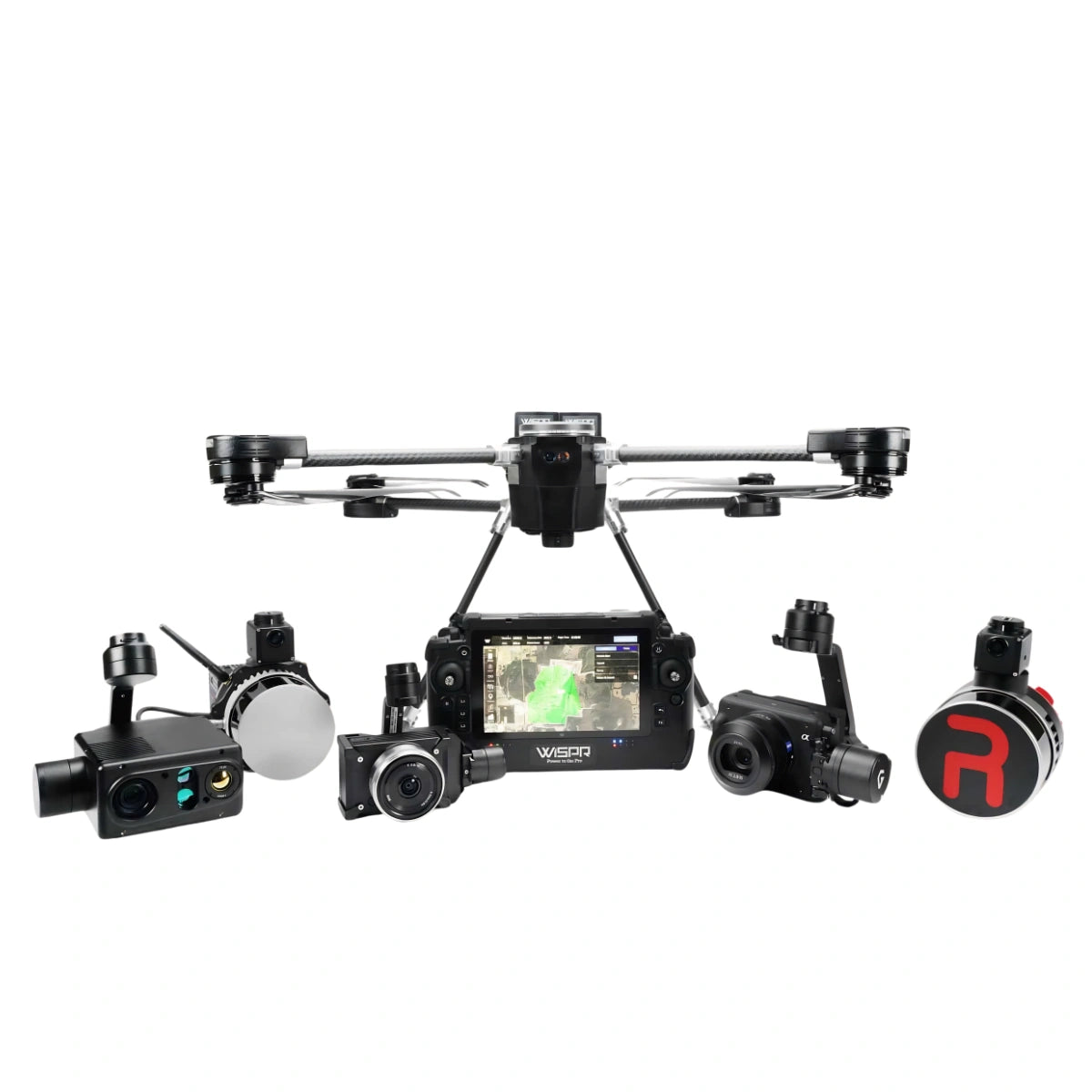

The SkyScout 2+ supports twelve payload options via its S-Port Quick-Attach system: the Sony LR1 (formerly ILX-LR1) 61MP full-frame camera, WISPR 24MP Mapper, Gremsy Vio, Gremsy Zio, RESEPI Lite M2X LiDAR, RESEPI Livox LiDAR, RESEPI Ultra Lite (XT-32) LiDAR, GeoCue TrueView LiDAR, GeoCue T1 LiDAR, YellowScan Mapper+ LiDAR, YellowScan Surveyor Ultra LiDAR, and a Methane Detector. LiDAR payloads use a dedicated extra GNSS antenna mount on the starboard side of the airframe. All payloads are sold separately and swap without tools, enabling a single airframe to serve multiple mission profiles across a program.

How does the low-battery failsafe support continuous fleet operations?

When the SkyScout 2+ detects a low-battery condition, it automatically initiates a Return to Launch sequence. After hot-swapping batteries on the ground, the operator presses play in WISPR Ground Control and the drone takes off and flies directly to the last mission waypoint to resume operations without a full restart. The failsafe threshold is dynamically calculated based on distance from launch, environment, and speed, with approximately 13% battery typically targeted for landing initiation — keeping high-tempo fleet operations moving efficiently between battery cycles.

How does the TempGuard system support multi-environment fleet operations?

TempGuard Dynamic Climate Control combines active fan-based airflow regulation with passive thermal management to maintain stable component temperatures across an operating range of -4°F to 122°F. Real-time sensor feedback drives automatic fan speed adjustment, and the system monitors the flight controller, GNSS module, and electronics continuously. This allows fleet operators to deploy the same airframe across desert, arctic, coastal, and industrial environments without platform substitution or additional configuration.
